Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides 15.5" Wooden Shuttle With Single-Pole Core, a 15.5-inch wooden shuttle with three porcelain eyes and a straight neck. The length of this wooden shuttle is 393mm(15.5 inches), the outer width of the bottom of the shuttle is 45mm, the height is 34mm (based on the height of the shuttle column), the inner length of the shuttle cavity is 267mm, the inner width is 31.5mm, and the tube weft slot (where the weft tube neck is fixed).
Single-rod bobbin means that the bobbin has no spring leaf or white nylon sleeve, the diameter of the bobbin rod is 7mm, the length of the straight rod at the front of the rectangular head is 125mm, and the diameter of the black bobbin head is 6 mm.

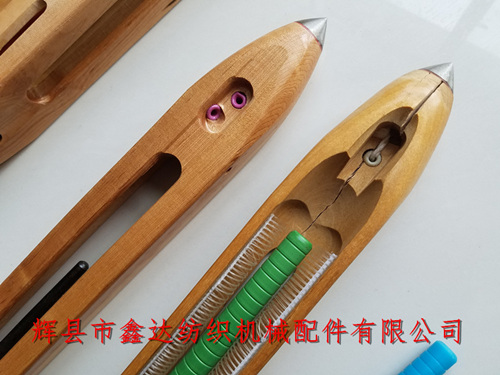

The shuttle with the green weft tube installed in the above picture is the customer's sample, and the similar finished product (the material is birch compression) is on the left side. The position of the shuttle head is cracked because there is a problem in the installation of the spring on the periphery of the shuttle tip angle net rod, or the main material density of the shuttle is small.
This shuttle uses a bobbin without a chuck, and there is no protruding reed on the bobbin rod, so the weft tube will rotate slightly along the bobbin during weaving. When the wood compressed at a high temperature of 1:1.15 is processed into a finished product, there will be fish scales on its surface (around the purple porcelain eye in the picture below), which shows that the wood fiber is deformed greatly, so it has the advantages of high density and high strength.
If you need to purchase 15.5-inch wooden shuttle with three porcelain eyes, straight neck and single-rod shuttle core, or other models and specifications of wooden shuttle, 15.5-inch shuttle, straight neck shuttle, textile wood accessories and other products, please contact Mr. Yang of our company for consultation.
