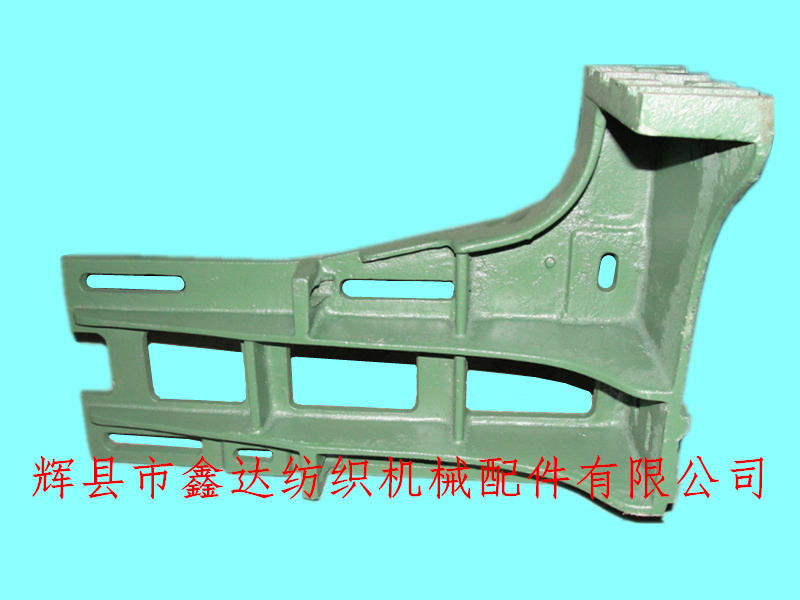

China loom, Huixian Xinda Textile Machinery Accessories Co., Ltd. provides GA615 electric loom motor bracket 4109 motor seat accessories, 1515 and GA615 4109e motor frame is mainly used to fix shuttle textile motor, material HT15-33, 1 piece for each loom, loom 4109 motor base is connected with wallboard 4302 and fixed at the back of switch side.

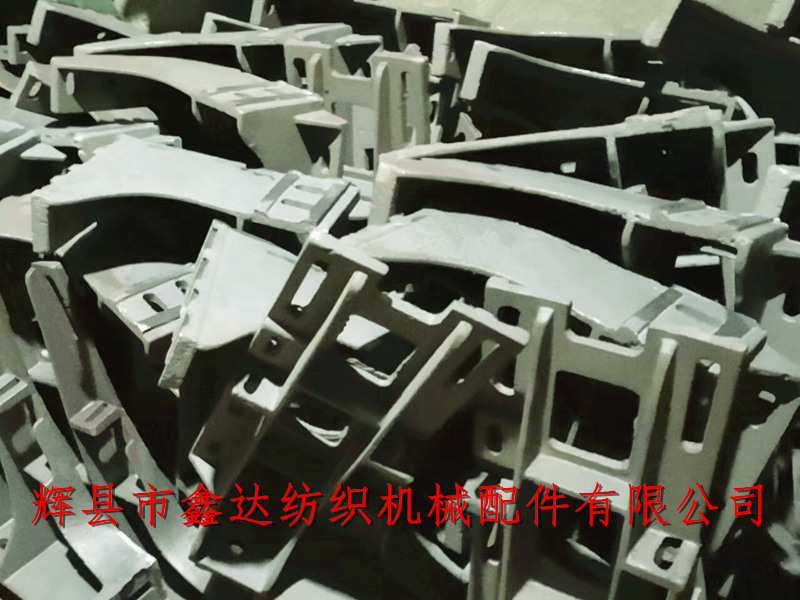

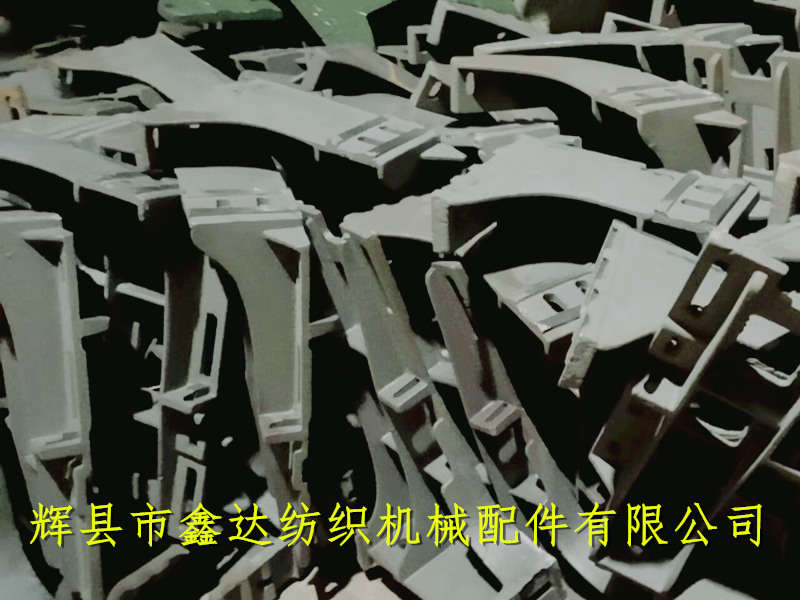

The length of loom motor bracket is 47.7 cm, and the width of fixed motor foot is 195 mm. The motor of 1511 loom is fixed by I1 motor frame, and 1515 and ga615-4109e are extended versions.China Loom 4109,motor bracket,motor base.
In addition, our company also provides a variety of used shuttle textile motors, motors, 0.8kw, 0.6kw, 1.1KW inertia flywheel motors, 1.5KW rapier motors, etc. the motor supports used in textile machines are as follows:

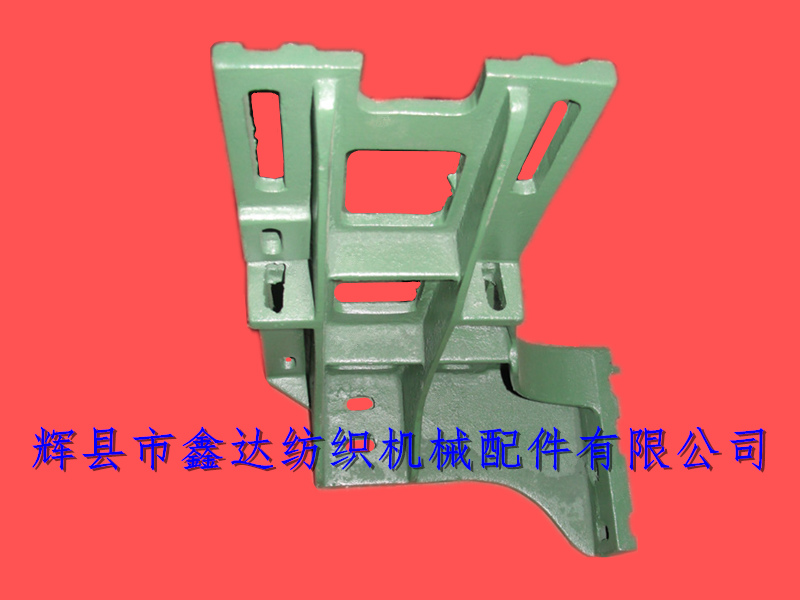

The four chutes on the motor bracket and the motor bracket plane are the four corner fixing holes of the motor, which can be adjusted and used by sliding bolts. During installation, it is necessary to pay attention to the same plane of the V-belt pulley and the belt groove of the motor pulley to prevent the motor wheel from biting the belt.
If you want to buy loom 4109, motor bracket, motor base and other accessories, please contact our company for details, we will provide you with various types and specifications of woven machine accessories products, GA615 electric loom motor support 4109 motor base accessories can be customized according to customer requirements.
