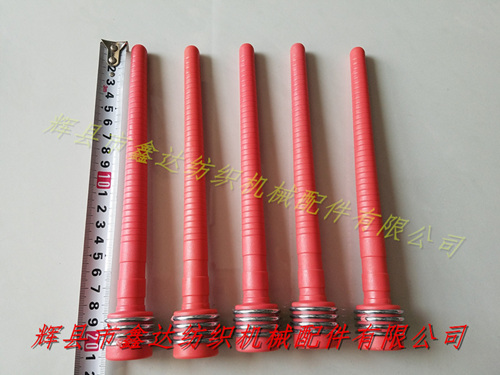

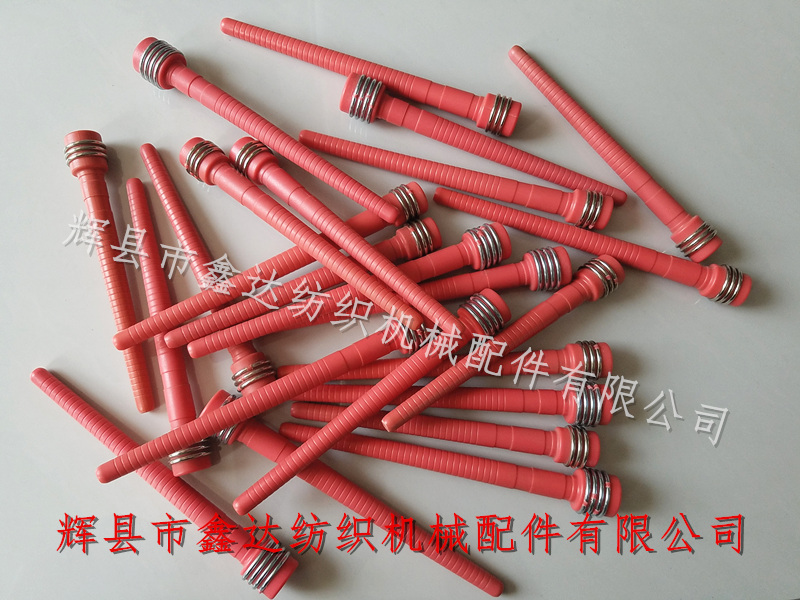

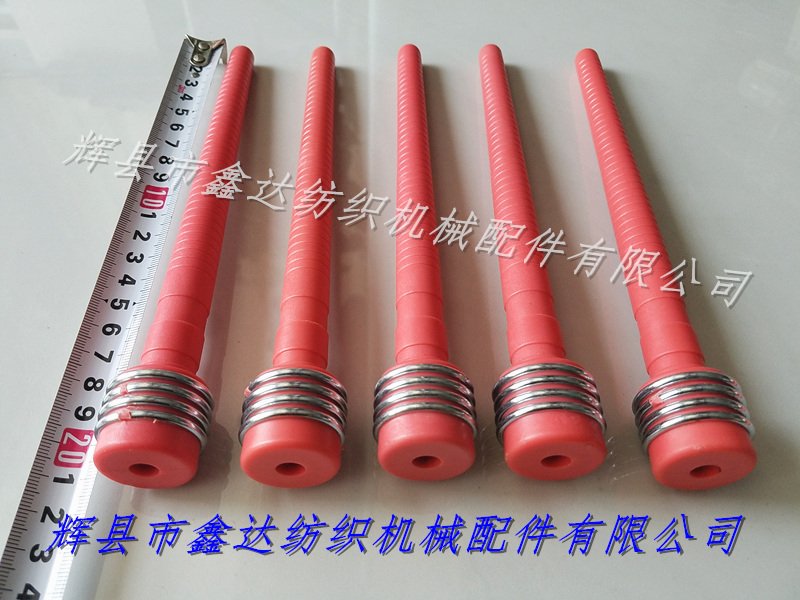

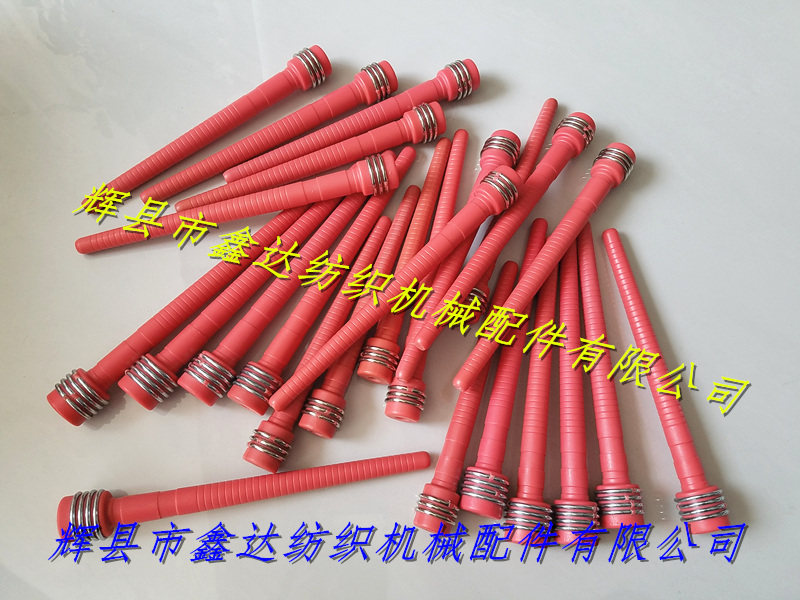

Huixian Xinda Textile Machinery Parts Co., Ltd. provides D30*210 Warp Tube Automatic Winding Loom, D30*210mm warp tube (weft tube) automatic changing weaving machine accessories. The 210 warp tube refers to a weft tube with a length of 210mm. This D30 * 210 warp tube is used for the shuttle of G263Z, GH8 and other models of automatic changing weaving machines. The outer diameter of the four steel rings is 30mm, and it is used in conjunction with the changing of the five groove iron chuck. The outer diameter of the nylon big head below is 26.5mm, the diameter of the middle inner hole is 8mm, the height of the big head is 25.6mm, and the diameter of the small head above is 11mm.
The neck diameter of the 210 warp tube is 17mm, and the weight of a single warp tube is 62-63 grams. Different lengths of warp tubes are used in conjunction with different types of warp changing shuttles. There are mainly two types of warp changing shuttles: wooden shuttles and nylon shuttles. Wooden shuttles are made of compressed wood material, while nylon shuttles are cast. The material of the D30 * 210mm warp tube (weft tube) automatic winding loom accessory is high molecular weight polyethylene.
The above picture shows physical photos of 5 different lengths of weft yarn tubes; Yuzi (a tube wrapped with weft yarn) belongs to textile equipment products, generally made of vulnerable parts such as nylon, rubber, cowhide, etc., except for pig iron materials, which are called equipment.

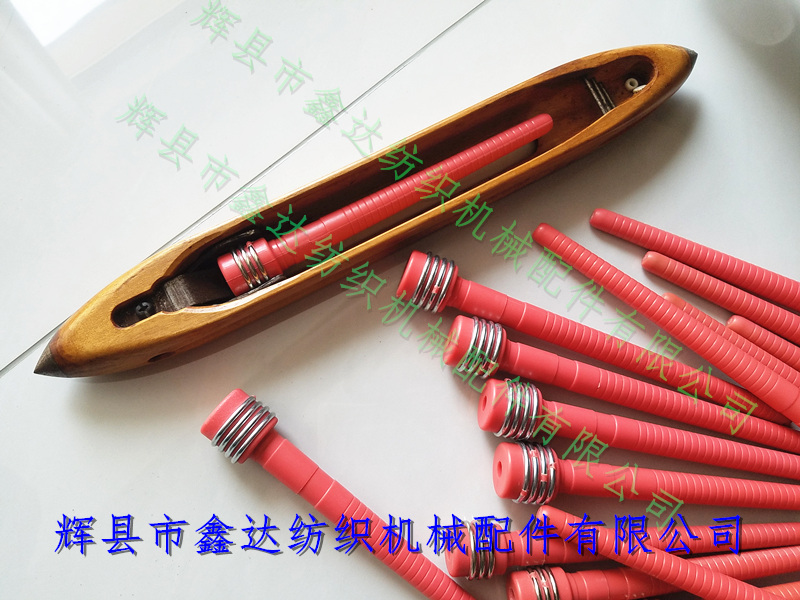

The above picture is a photo of the installation of the winding tube on the three ceramic eye manual shuttle. The size of the steel ring determines whether the winding tube is installed horizontally in the shuttle cavity. The horizontally placed weft tube is conducive to the smooth extraction of weft yarn, reducing the number of machine shutdowns and the probability of fabric defects.
The packaging of D30*210 warp tubes is in cardboard boxes, with 400 pieces per box and a weight of approximately 25.2 kilograms; If you need to purchase or learn about weaving machine warp tubes, weft yarn tubes, replacement weaving machines, or 210 weft tubes, please contact Mr. Yang from our company for consultation. We welcome your cooperation!
