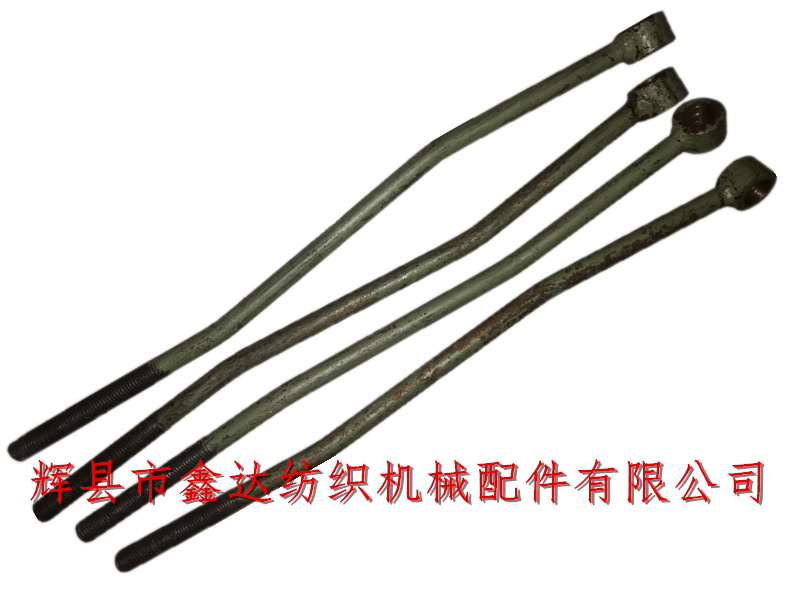

Huixian Xinda Textile Machinery Accessories Co., Ltd. has long provided 214M-B automatic lattice machine accessories, B00-6 shuttle box bar assembly and pull rod. The thickness of retaining ring B-55 is 21.5mm, the diameter of inner hole is 20mm, the length of screw (pull rod) is 47.4mm, the thread specification of rod head is M16, and the total length of B00-6 automatic lattice machine accessories is 51.2cm. Baota tooth assembly B00-7, striker frame assembly (B00-9), positioning arm assembly (B00-13), striker spring B-04, 16 shuttle tooth retaining ring B-08, reverse steel plate rolling head B-16 and other accessories constitute 214M-B series devices.

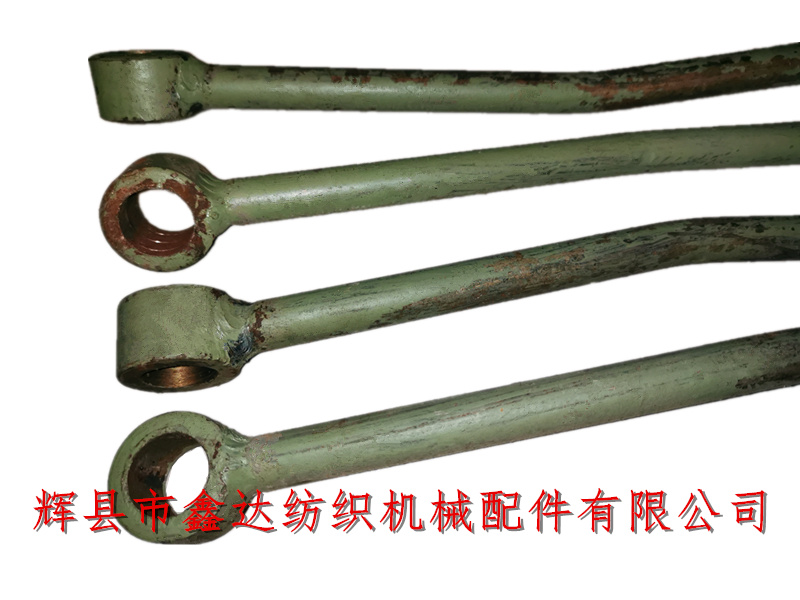

The automatic lattice machine device 214M-B generally forms a multi arm and multi shuttle mechanism with 214M-A double drum faucet on the 1515 loom (double beam), while the main multi shuttle box device 214M-C weaves complex fabric structures by adding 1x4 or 4x4 shuttle.

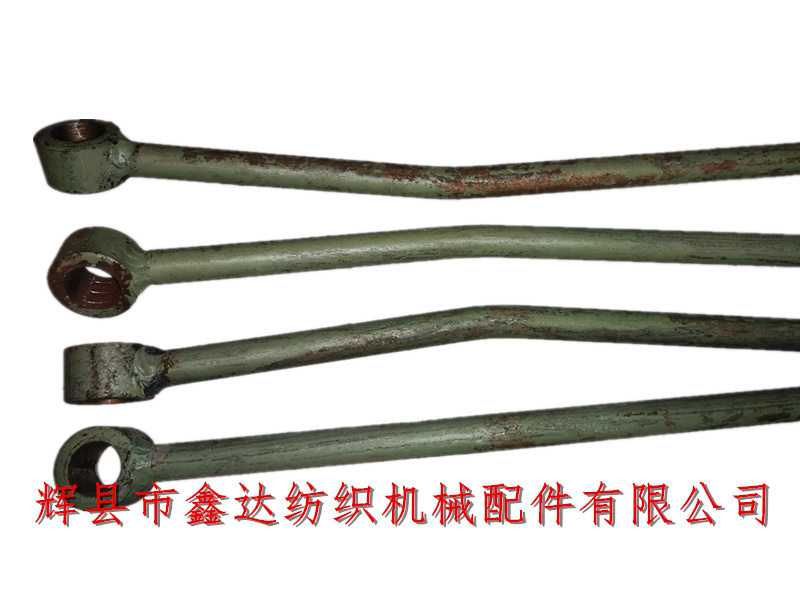

The single weight of automatic lattice machine accessories B00-6 is about 0.7kg, with 10 pieces in each string. The material of textile machinery parts shuttle box screw B00-6 is wrought iron, and the processing technology is forging, yuanche hole digging and wire rolling.

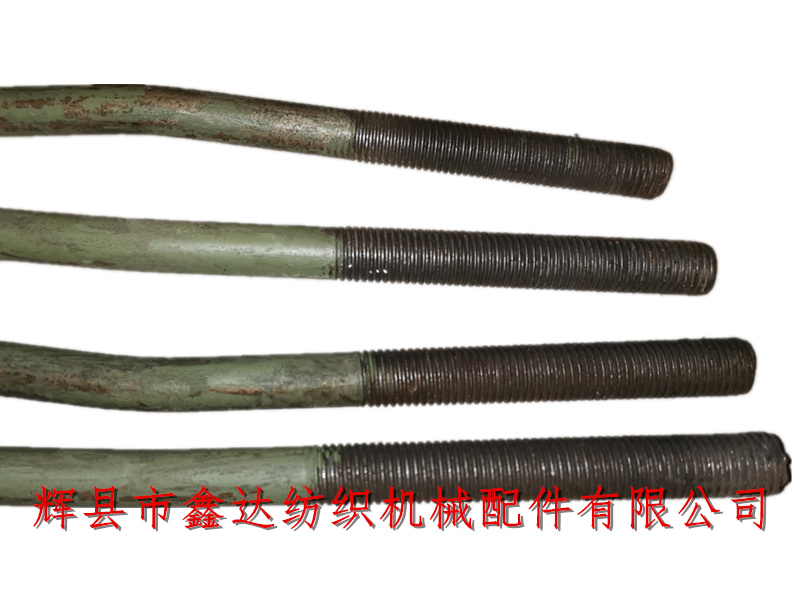

The winding length of textile accessories B00-6 is 9.2 cm. Loom screw, loom pull rod and multi shuttle box parts can also be used for 1511 narrow loom, which is not affected by single and double drum multi arms.
The diameter of the middle section of the textile shuttle box bar is 14.5mm, and the usage of each loom is 1 piece. If you need to purchase B00-6 automatic lattice machine accessories, shuttle box bar and pull rod products, please contact Mr. Yang of our company for details!
