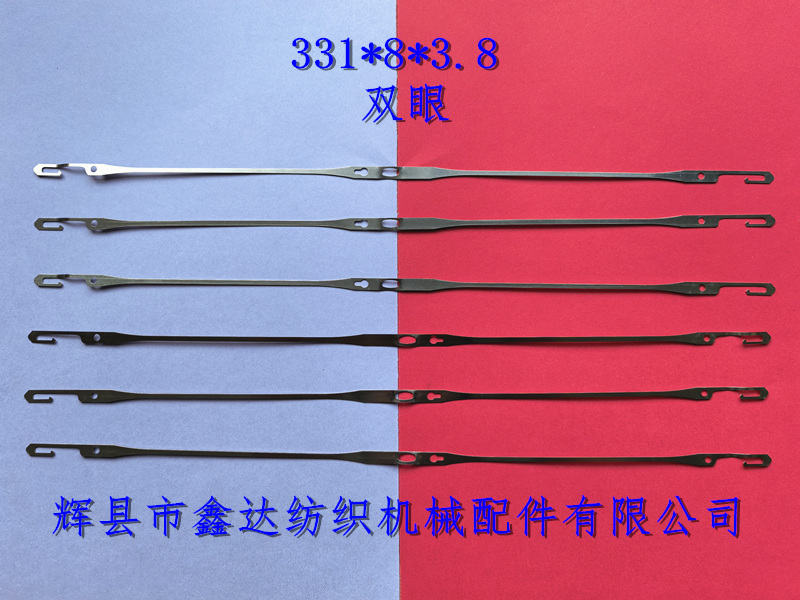

Huixian Xinda Textile Machinery Parts Co., Ltd. provides double eye wire J-type 331 steel sheet wire 8*3.8mm stainless steel wire. The total length of the textile equipment hardware accessories - big eye wire is 339.5mm, with a center to center distance of 277.5mm between two 2.8mm diameter circular holes. The inner length of the hanging stainless steel wire rod position is 331mm. The middle rectangular hole is curved with an inner length of 7.8mm and an inner width of 3.5mm. The lower inner diameter of the adjacent gourd hole is 3.6mm, and the upper inner width is 2mm.

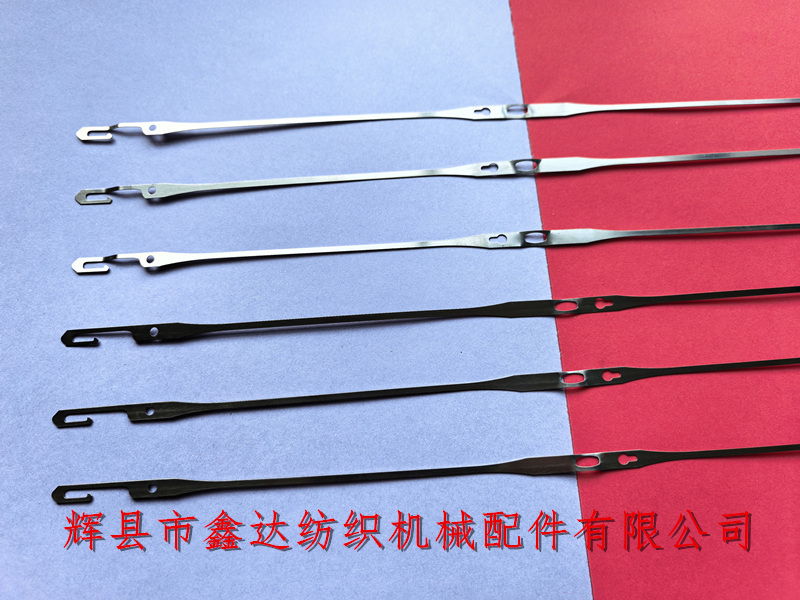

The steel wire heald of stainless steel is produced using stamping technology.Sheet shaped steel wire heald, The above picture is a comparison of the bent hooks at both ends of the J-type. The outer width of the comprehensive ear is 5.6mm, the width of the inner cavity is 2.7mm, and the inner length of the J-shaped hook is 21mm and 21.2mm (straight head side);

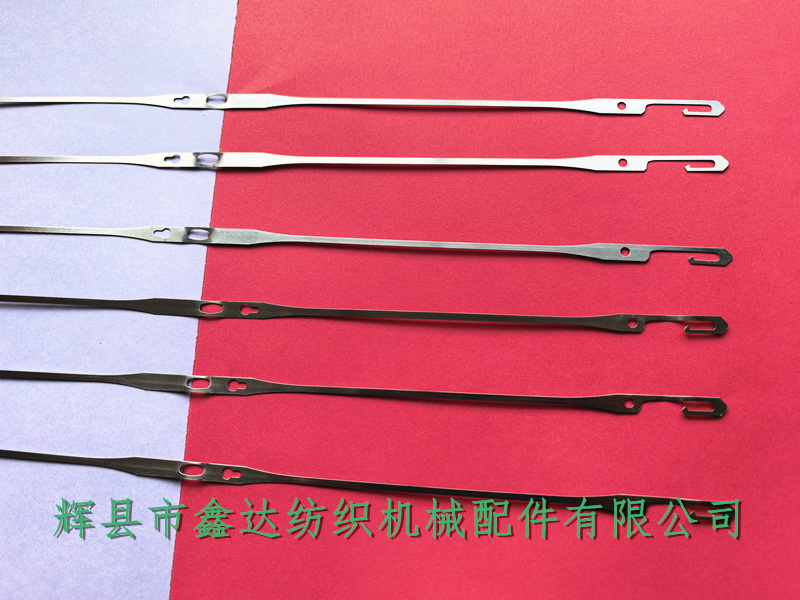

The outer width of the middle position of the double eye wire is 5.5mm and the thickness is 0.3mm; the specification of this steel wire heald is 331J*8*3.8 double eye wire.
Normally, the packaging of stainless steel wire heald is wooden boxes, with a quantity of 10000 pieces per box and 1000 pieces per string. The weight of each piece is about 2.33 grams. If you need to purchase or inquire about wire,Flat steel wire heald, double eye wire heald, J type steel wire heald, shuttle textile equipment products, please contact Mr. Yang from our company for consultation.
