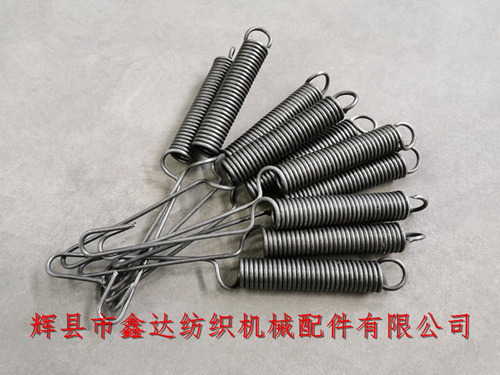

Huixian Xinda Textile Machinery Parts Co., Ltd. has been providing loom accessories C38 brake rod spring tension control spring for a long time. The loom spring C38 is processed with spring steel wire II (diameter 3.5mm), and the length from the spring tail to the hook is 242.5mm. On the 1515 weaving machine, it is connected to the 3425 brake lever spring hanging foot and the 3413 sector brake lever, while on the 1511 weaving machine, it is connected to the C9 sector brake lever and the C12 adjusting weight lever hanging foot.
The number of C38 brake lever springs used on each weaving machine is one, installed on the outer side of the weaving machine wall panel. This tension spring is not divided into left and right hands, and compared to the K57 reed clamp shaft spring, its hook is longer.
The C-part accessory of the weaving machine belongs to the tension adjustment component, which mainly controls the warp tension during the weaving process of the weaving machine, achieving smooth and uniform weaving of weft yarn into the finished fabric surface.
There are various specifications and models of springs for weaving machines, including torsion springs, tension springs, and compression springs (also known as leaf springs). Brake Rod Spring,Tension Control Spring,If weaving factories and cotton weaving factories need to purchase shuttle loom accessories, weaving tension springs, textile springs, 1511 brakes, and tension control devices, they can contact Mr. Yang from our company for negotiation.
