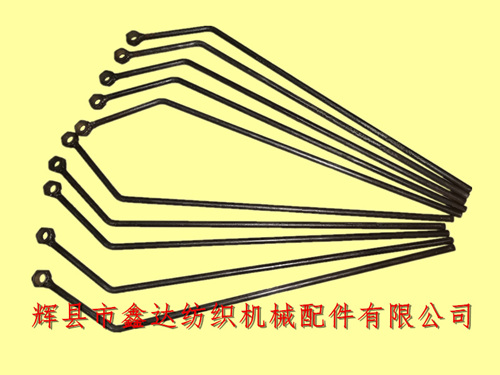

Huixian Xinda Textile machinery accessories provides the loom weft break stop pull and swing rod combination 7200-6, the main material is A3, which is composed of 7230 nylon bushing, 7229 retaining ring and 7228 pull and swing rod. Weft Break Stop,Swing Rod,Loom Parts,Textile Accessories, The length of 7228 is (100mm + 350mm). The 7200-6 pull and swing rod combination is suitable for the weft break stop device of shuttle looms such as 1511, 1515 and GA615. Both ends are connected with the sleeve rocker pin and 7231 coupling pin in 7221.
The 7200 (GA615) point pecking weft detection component consists of nearly 40 kinds of accessories, such as outer sleeve 7200-1, inner sleeve assembly 7200-2, head shaft assembly 7200-3, head shaft rocker arm assembly 7200-4, 7200-5 shut-off vertical rod assembly, 7200-8 saddle rod assembly, 7201 supporting foot (shuttle changing side).
The front inner hole of 7200-6 swing rod is 10mm, the diameter of main rod is 8mm, the inner hole diameter of nylon bushing 7230 is 10mm, the outer diameter is 14mm, the material is nylon 1010, and the color is beige. Each loom is equipped with a set of weft break stop device, which is installed differently according to the left mobile phone and the right mobile phone of the machine (fixing the supporting foot and rocker).
According to the types of loom accessories, 7200-6 swing rod belongs to textile hardware and is a general accessory of shuttle loom. The product does not distinguish between left and right hands. The weight of a single swing rod is about 0.15kg. The outer diameter of the front iron retaining ring is 20mm (round), 21mm (hexagonal) and the thickness is 7-7.4mm.
If you need to purchase shuttle textile machine accessories - 7200-6 pull and swing rod combination products, please contact Mr. Yang of our company for consultation.Weft Break Stop,Swing Rod,Loom Parts,Textile Accessories, We provide a full set of weft break and stop accessories, pull and swing rods of various shuttle looms, and hardware of GA615 textile accessories. Welcome all textile manufacturers to patronize!
