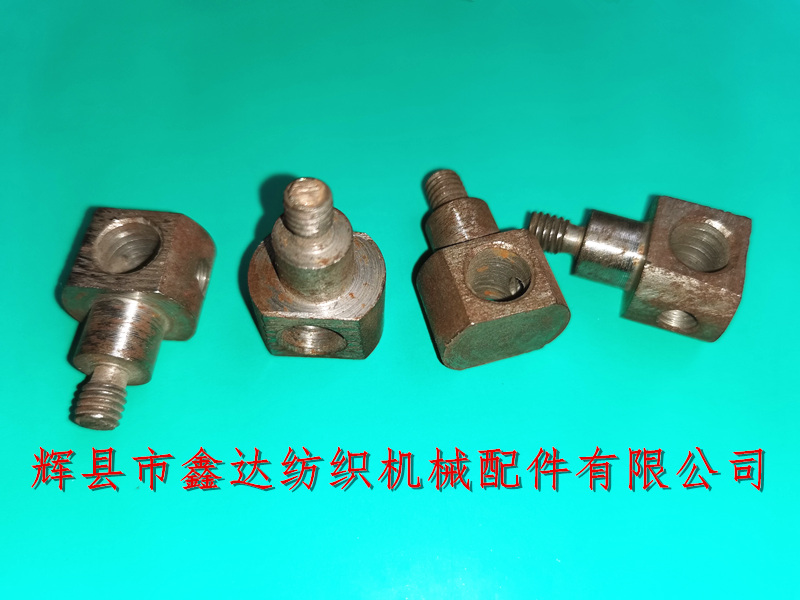

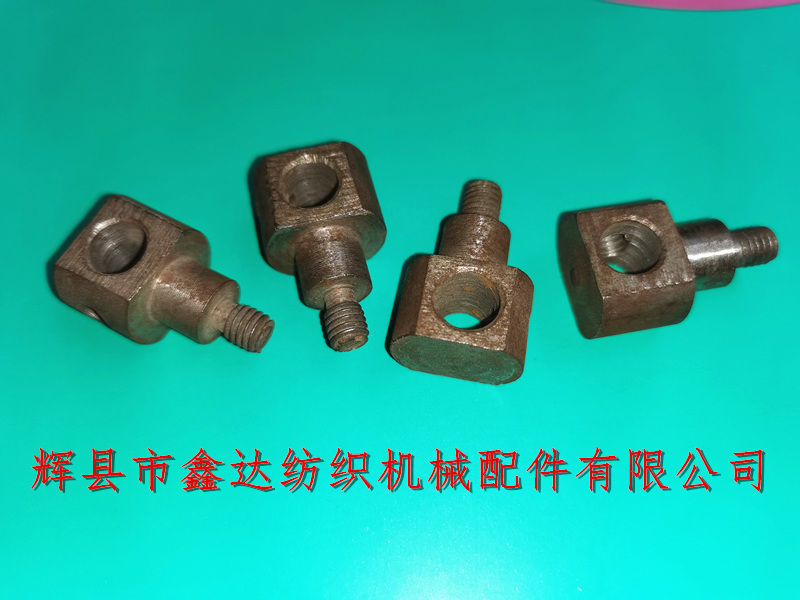

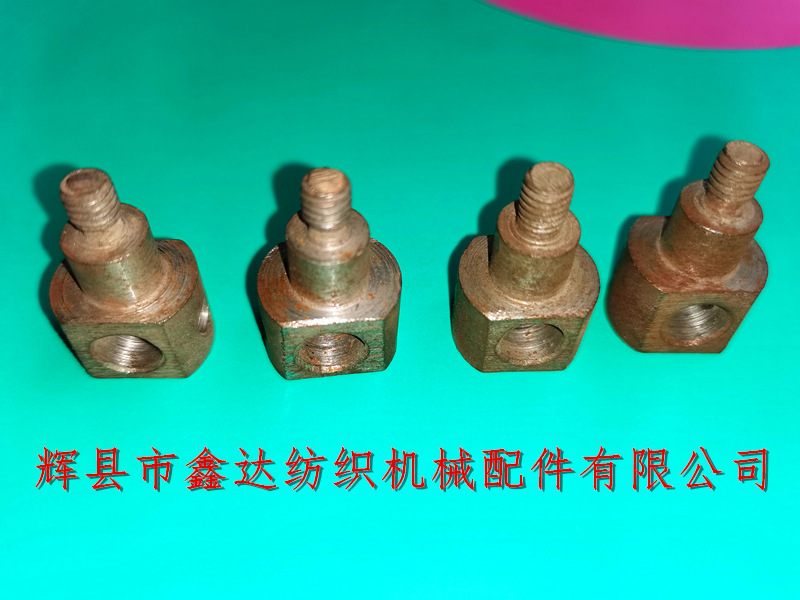

The 7231 coupling pin is mainly used for the weft breaking device of the full-automatic loom,Point Pecking Weft Breaking Stop Part 7231 with the total height of 27mm, screw M6, fixed on the 7200-4 head rocker shaft assembly, made of 45 steel, and the diameter of the round table is 10 mm. It is a weft detecting part of the textile machine, with three seamless tube sets as the main part and the rocker arm device as the accessory, forming a point pecking weft breaking device.
The textile point pecking type chicken pecking rice accessories include the bridge mandrel, the pull swing bar accessories, the textile weft detection pressure spring, the pressure needle rod, the loom weft detection needle, the support block, the limit piece, the middle sleeve swing arm torsion spring, the vertical rod, the lifting pad iron, the sleeve seat, the saddle bar assembly and so on!
The closing vertical rod 7200-5 is welded and processed from 7223 vertical rod and 7222 retaining ring; 7200-6 is welded and processed from the pull swing rod 7228 and retaining ring 7229, and the 7225 and 7226 assemblies form 7200-8 saddle bar bracket.Weft break stop accessory,point peck type,coupling pin.
Product 7231, 100 coupling pins per pack, 1 for each loom, weight about 0.025kg, inner hole diameter 8mm, M6 jackscrew hole, small textile steel, loom steel processing, weft breaking stop accessories, Point Pecking Weft Breaking Stop Part 7231,chicken multi meter parts, please contact our company for coupling pin purchase.
