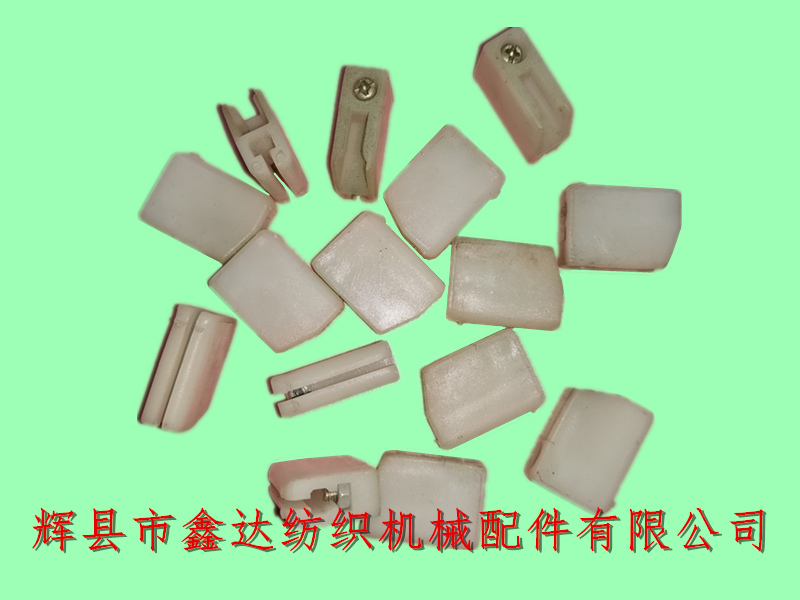

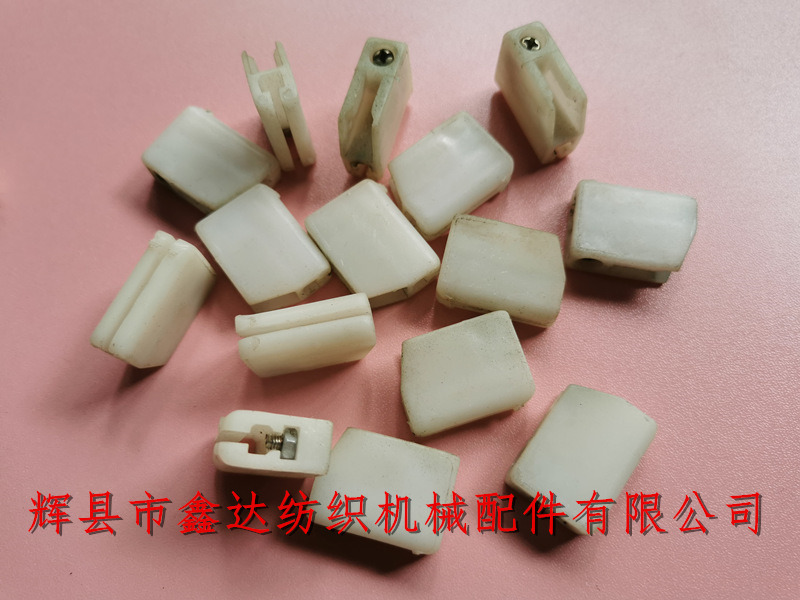

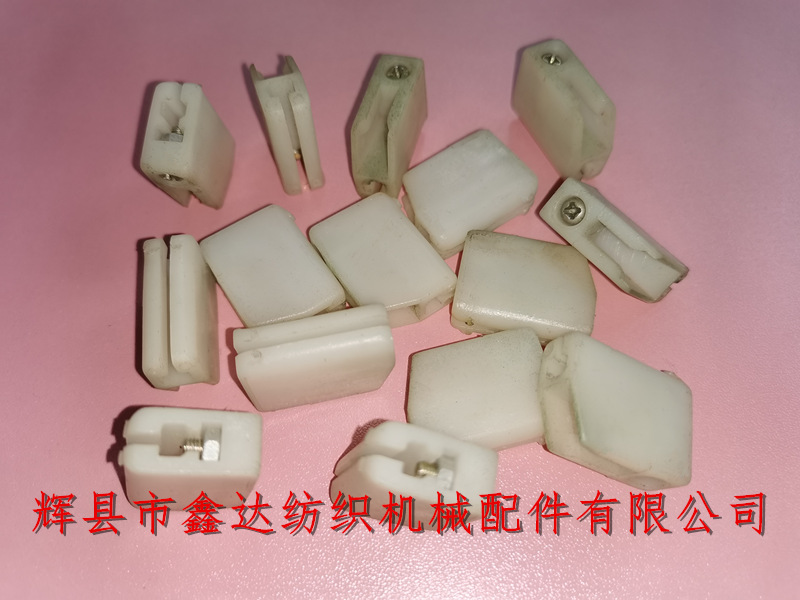

Huixian Xinda Textile machinery accessories provide all kinds of textile nylon parts (rapier heald holder). They are mainly used in weaving machinery rapier heald frame fixed heald wire clip (heald card). They are the heald frame accessories of loom. The color of heald holder is white, with a screw m3x8 to fix the heald frame aluminum alloy beam. The overall length of textile nylon parts (heald card seat and heald clamp seat) is 26mm and the width is 20mm Its thickness is 9.2mm, and the inner width of fixing heddle wire clip is 7mm. It is suitable for all types of aluminum alloy heald frame (rapier machine).
The heald clip of shuttleless loom is designed with built-in suspension type. The number of heald holder used in heald frame with different door width is different, and the amount of heald holder increases with the length of heald frame. Plastic accessories (nylon parts) of textile machine are widely used on rapier machines.
Some 1515 dobby looms use rapier gt221 dobby taps, and the heald frames used are also borrowed from rapier looms. Therefore, this kind of heald holder can also be used. The number of heald holders can be arranged according to the actual situation.
Textile nylon parts heald holder and heald holder can fix single row heald wire clip, but double row heald holder is different. Please contact Mr. Yang of our company for the detailed parameters and usage of heald card holder, nylon parts and textile nylon parts!
