Huixian Xinda Textile Machinery Accessories Co., Ltd. provides double eye sliding box accessories 2676/ 2600-9/2681/2682. The double eye leather ring sliding boxes used in GA615 loom are 2676 and 2677, the base plate supporting feet are G1515-2600-9 and 2600-10 (installed on 3222 reed frame wooden dragon), and the leather ring guide plates are 2681 and 2682. They differ from the single eye sliding box accessories in different hole positions, but the quality is higher than that of single eye.

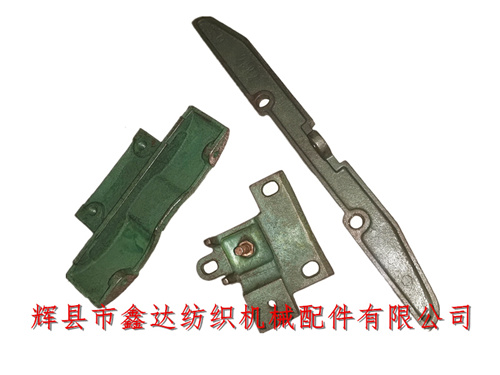

As shown in the above figure: 2600-9 on the upper left and 2600-10 on the backhand; 2678 on the upper right and 2677 on the backhand; The bottom of the figure is the side view of 2681. These three accessories are the main components of the sliding box of GA615 loom. They are installed below the side end of the loom dragon. They are made of HT15-33 pig iron. Each loom uses 2 sets, which include 4 pcs bottom plate lugs, 4 pcs sliding boxes and 4 pcs buffer guides.
1515 double eye sliding box is an important part of the shuttle throwing buffer mechanism of the loom. It is mainly used to stop the shuttle plate Q13 or Q14 at the end of the movement and buffer the rebound force. This device (double eye sliding box accessories 2676 / 2600-9 / 2681 / 2682) is used for buffering in traditional old looms.
If all weaving factories, cotton mills and weaving companies need to purchase double eye sliding box, GA615 sliding box, 2681,2682 leather ring guide plate and other accessories, please contact Mr. Yang of our company.
