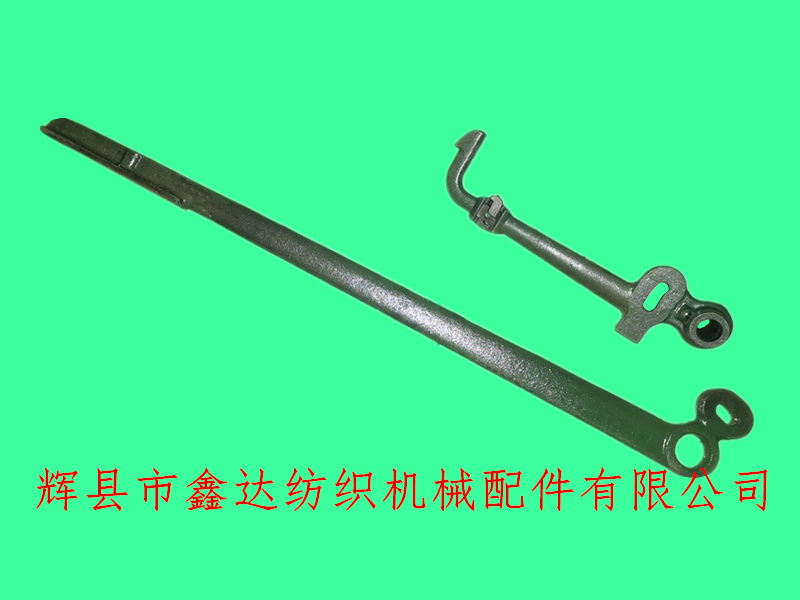

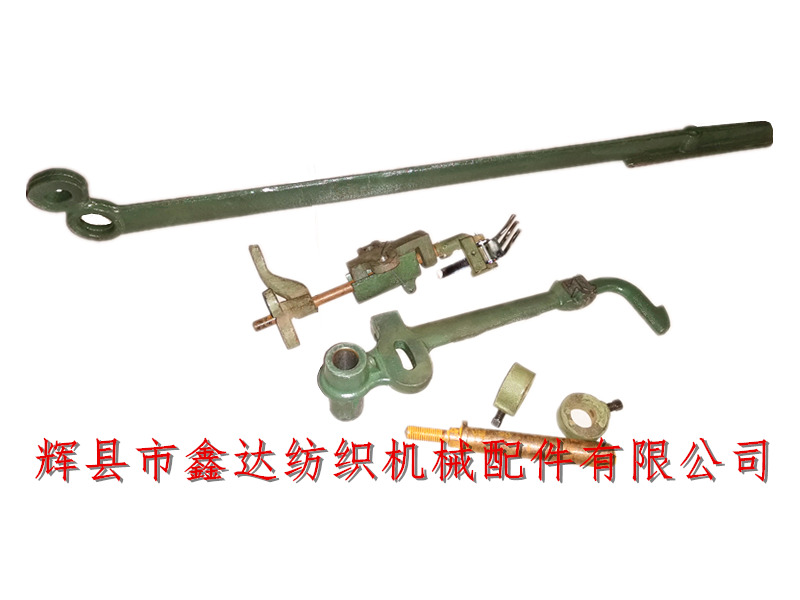

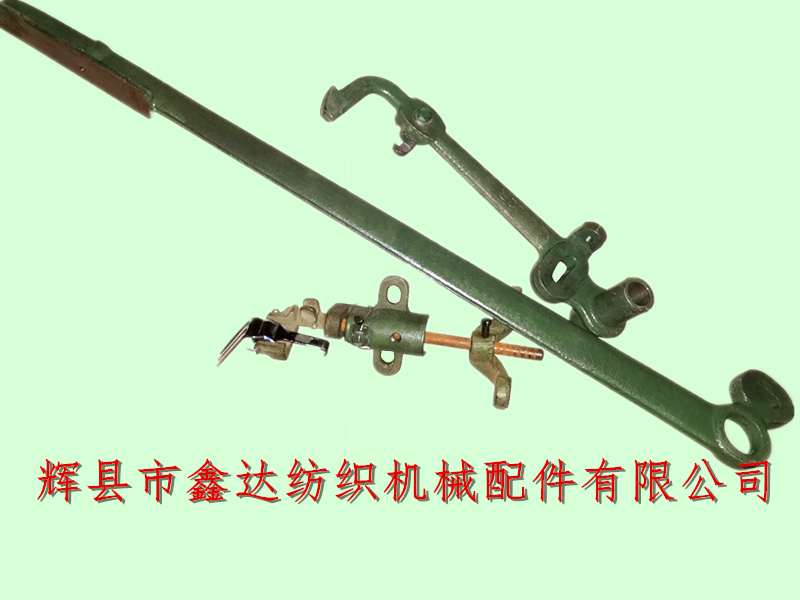

We provide 75 textile accessories [weft fork hook rod 3230] wholesale, 75" Shuttle Loom Parts Weft Yoke 3230,the length of weft fork hook is 71.9cm, the diameter of round hole is 30mm, the material is gray pig iron ht15-32, the wear of textile hook bar plane should be less than 0.8mm, and it is connected with J2 weft fork hook and E4 weft cam. The gate width of GA615 75 inch loom is 180mm, the weft fork hook bar of 75 loom is wholesale, the shape of ga615-3230 is straight bar (1511 type J1 is bending shape), which is used to connect the take-up device and shuttle changing parts of loom.
When the loom shuttle is on the switch side, the distance between the reed and the breast beam is 165-170mm, and the large radius of the cam is slightly lower forward. At this time, the 3230 weft fork hook bar is installed, and the contact area and angle of the two are checked.Weft yoke,loom 3230,shuttle loom parts.

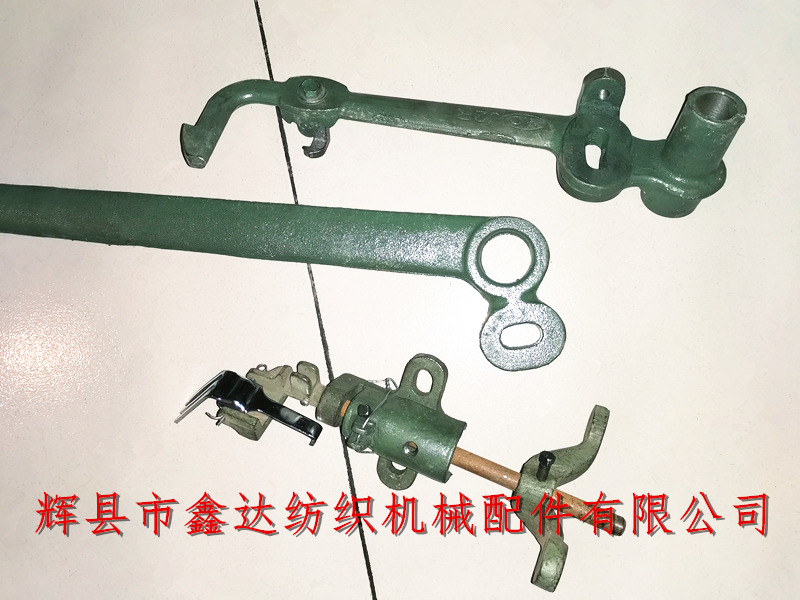

GA615 textile accessories include more than 300 kinds of spare parts, which are generally made of pig iron (gray HT15-33). The weft fork guide device of textile machine includes weft fork, weft fork spindle hook, spindle bar, hook bar, cam and other accessories. It is suitable for GA615 shuttle loom with various door widths of 56 inch, 63 inch, 72 inch and 75 inch.
Our company specializes in the wholesale of 75 textile accessories, the processing of old GA615 loom parts, the assembly of shuttle textile machine parts and the parts of textile guiding shuttle changing device. The company has been engaged in the production and sales of textile accessories for 20 years, with a complete sales network and quality management system.
GA615 textile accessories weft fork hook bar wholesale supplier - Xinda Textile machinery accessories wholeheartedly welcome your presence, we adhere to the "integrity management" production and management philosophy to provide customers with stable quality products and satisfactory services.
