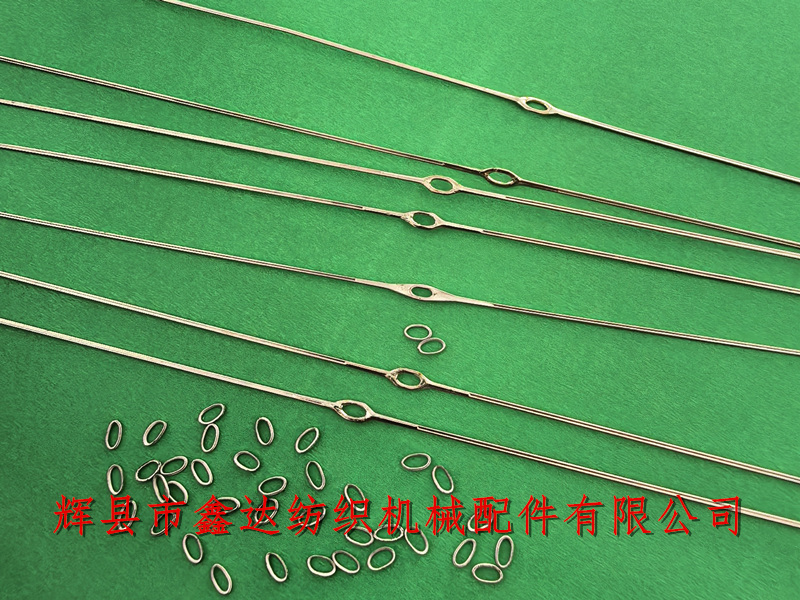

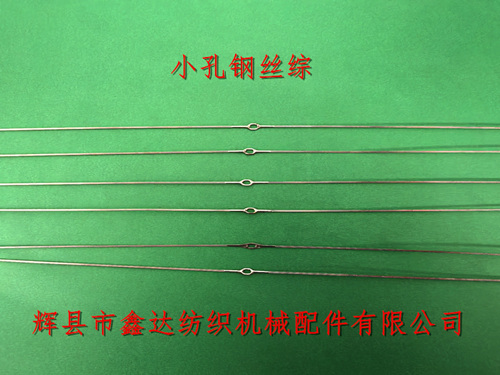

Huixian City Xinda Textile Machinery Parts Co., Ltd. supplies Small Eye And Loop Wire Heald 1010R/1015R, textile equipment—steel wire heddles with small eye bands and sliding rings, including models 1010R and 1015R Grooved Wire Heald. The image below shows the sliding ring and steel wire heddle for the 1015R model. The internal dimensions of the 1015R sliding ring (Hawse alloy ring) are: inner length 3.2mm, inner width 1.3mm, suitable for use with steel wires of diameters 0.35mm, 0.4mm, or 0.4mm. For the 1010R Hawse ring, the parameters are: inner length 2.6mm, inner width 0.9mm, suitable for use with carbon steel wires of diameters 0.3mm or 0.4mm to form small eye heddles;

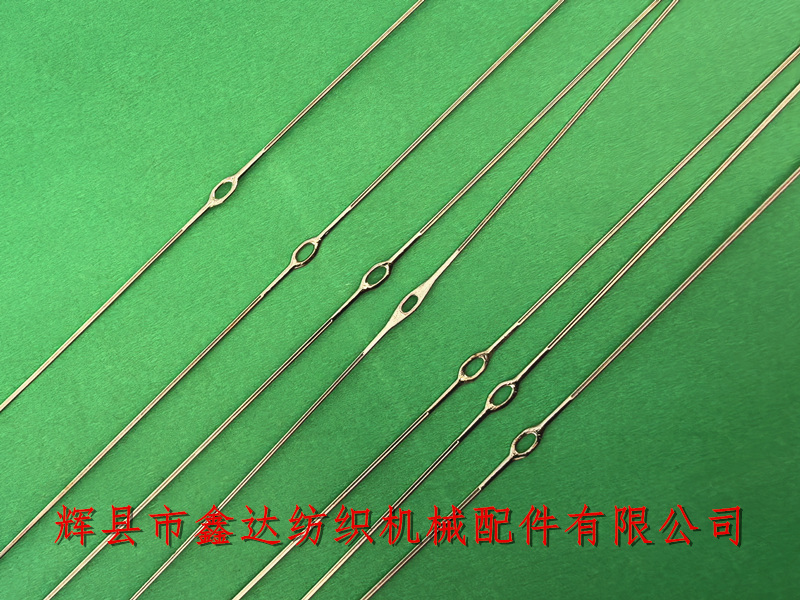

There is a groove on the side of the 1010R and 1015R sliding loops, and the upper and lower flat edges are turned outward. Therefore, the blended yarn with Huasi loops is also known as the "turning hole wire mesh". This is to reduce or minimize the wear of the blended yarn on the warp yarn of the fabric during weaving.

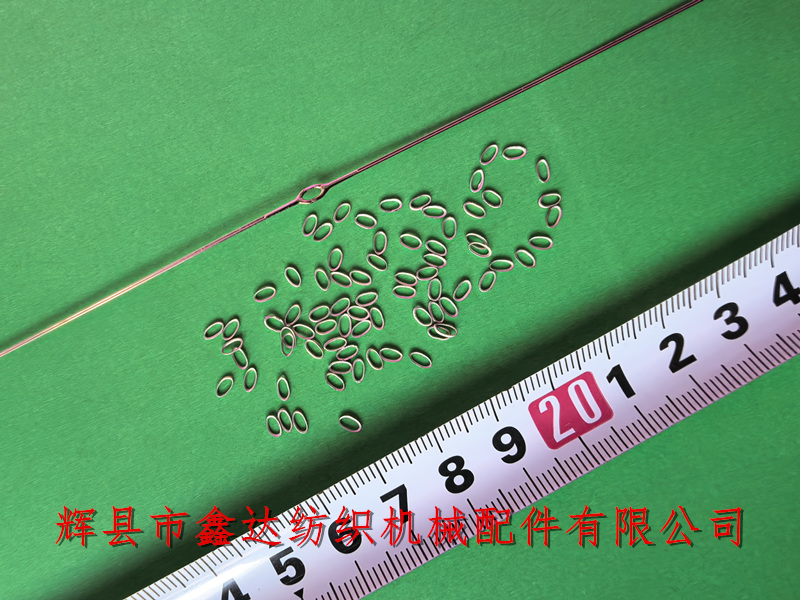

The above picture shows the comparison of the size between the 1015R Huasi circle and the box ruler; The warp yarns embedded with 1010R or 1015R warp loops are mainly used on jacquard looms because the warp yarns of jacquard fabrics are thin and dense, requiring the use of small eyed warp yarns. The Huasi ring used in the 1010R and 1015R wire harnesses with sliding wire rings for small eyes is an imported accessory.

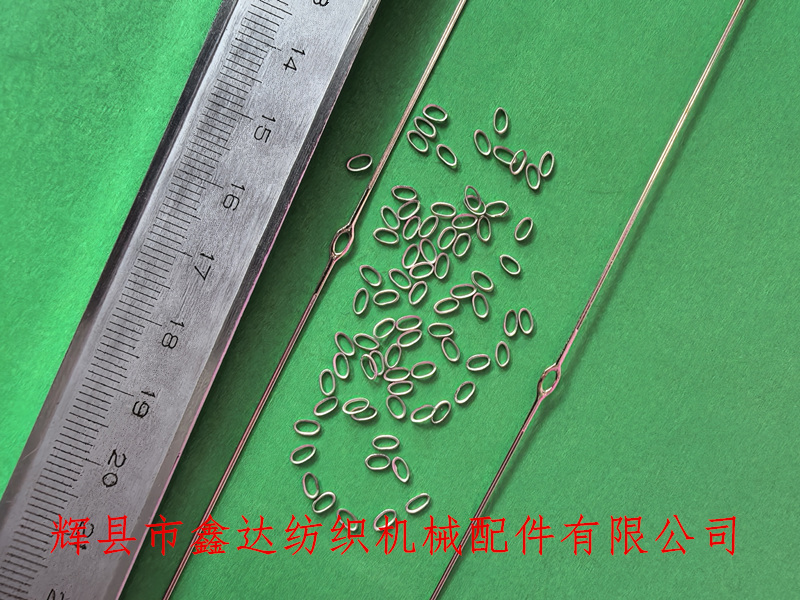

The wire in the middle of the picture is a composite wire embedded with a 1010R Huasi ring, while the others are 1015R sliding wire rings. The models of Huasi rings generally include: 1010R, 1015R, 1020R, 328R, 355R, 380R, 385R, 1080R, 390R, 420R, etc., and their sizes increase in sequence.
The minimum order quantity for this type of wire is usually 60000 pieces. If you need to purchase shuttle machine textile equipment such as small eye wire wire, flanged wire, small eye wire, sliding wire ring wire, etc., please contact Mr. Yang from our company for consultation.
