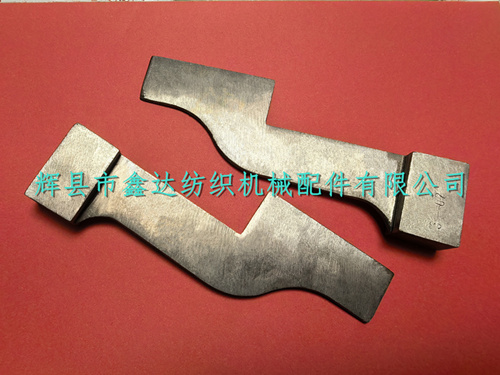

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides E3-02 Sley Angle Gauge Loom Repair Tools,textile hardware and tools - 1511M-E-3-02 Reed Angle Gauge for Weaving Maintenance Tools, primarily used to inspect whether the angles between 1515-3307 (1511-K14 Shuttle Side Shuttle Box Base), 1515-3308 (1511-K15 Change Shuttle Side Shuttle Box Base), 3244 (1511-K1 Shuttle Side Reed Foot), and 3245 (1511-K2 Shuttle Magazine Side Reed Foot) are 86°30'.
The base of the 3-02 reed angle gauge is placed vertically on the plane of the shuttle box base plate, with its upper side face closely contacting the upper plane of the reed foot. At this point, the angle between the shuttle box base plate and the reed foot is 86.5°.
The dimensions of the base of weaving machine specification 3-02 are: length 39mm, width 14.5mm, height 24.5mm; the width of the upper part is 25.6mm, thickness 2.1mm, the height of the upper straight plane is 65mm, the height of the lower straight plane is 65mm, and the total height of the base is 156mm.Sley Angle Gauge,Loom Tools,Repair Tools,E3-02,Loom Gauge.
The weight of the single weaving machine reed seat angle specification 3-02 is 166 grams, made of 45 # steel, color: silver white, and the upper surface of this specification forms an angle of 86.5 ° with the bottom surface of the base. In general, the minimum order quantity for loom maintenance is 1 piece;
If you need to purchase 1511M-E-3-02 reed seat angle sizing weaving repair tools, or other 1511M-E type repair tools (sizing and other components), please contact Mr. Yang from our company. We sincerely welcome everyone's visit and guidance.
