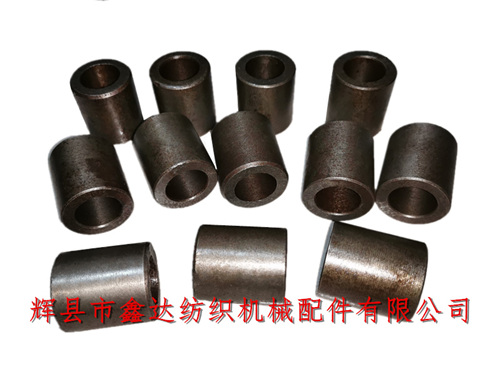

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides the shuttle textile accessories F12 Picking Bowl Bush (Pig Iron Sleeve), standard material HT15-33 (pig iron). The outer diameter of the shuttle rotor bearing is 32mm, the inner hole diameter is 20mm, and the total length is 36mm. The shuttle machine shuttle rotor sleeve F12 is installed inside the shuttle rotor F11, connected with F13 screw core and fixed on the shuttle rotor disc. Each loom uses 2 pcs.

Textile accessories - the end face wear of F12 Picking Bowl Bush (rotor sleeve or rotor bearing) shall not exceed 0.8mm, and the total length shall not be less than the thickness of shuttle rotor F1. During installation, the clearance between rotor F1 and sleeve F12 shall not exceed 0.4mm (check with dial gauge or steel ruler), and the serial movement of rotor F11 on bearing F12 shall not exceed 1.6mm. After installation, check whether rotor F11 rotates flexibly, Whether the nose is flush with F4 or F4-1 above, and whether it is in full contact with F4 or F4-1.

F12 shuttle rotor bearing belongs to general accessories, which is applicable to shuttle loom equipment of 1511, 1515, GA615 and other models of various door widths. It belongs to shuttle textile accessories products. Packing method of shuttle rotor bearing: each string of 10, and the weight of a single F12 is about 0.1kg, which is heavier than that of powder metallurgy products.

Pig iron bushing F12 has good wear resistance and longer service life, which complement each other with the F11 shuttle rotor made of nodular iron. If you need to purchase textile pig iron sleeve, loom bushing, loom bearing, textile accessories, shuttle rotor bearing and other products, please contact manager Yang of Xinda Textile accessories for details!
