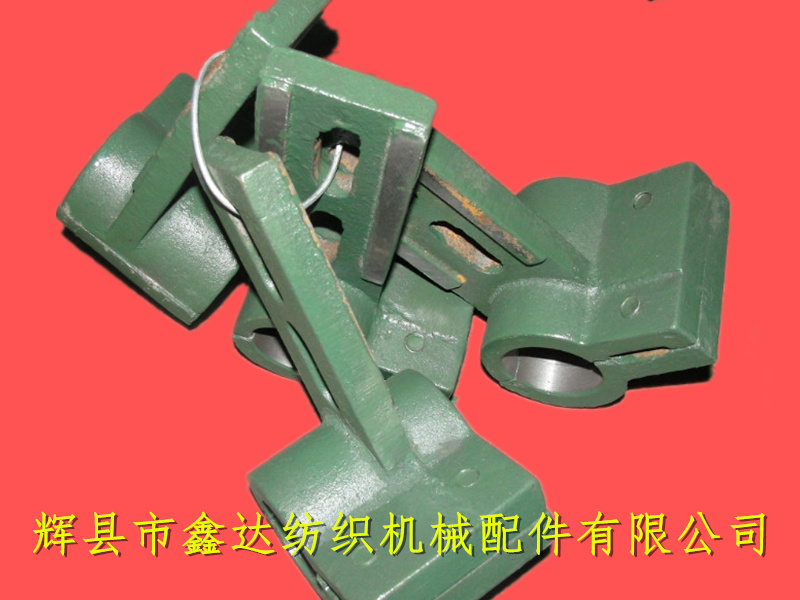

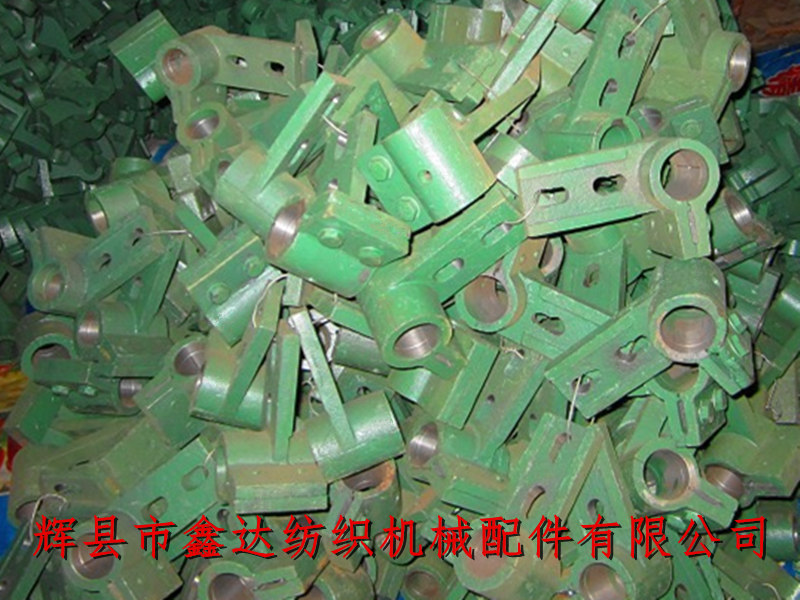

Huixian Xinda Textile Machinery Accessories Co., Ltd. has provided 4323 * 4325 and 4324 * 4325 intermediate bush parts for the crank shaft of 1515 shuttle textile machine all the year round. The 4323 and 4324 intermediate bush cap for the crank shaft of GA615 shuttle textile machine constitute the left and right hands. The semicircle diameter of the upper plane is 40mm. The two fixing holes of the bearing cover 4325 are M10. Two carriage screws are installed on the side bottom surface to fix the 4326 or 4327 hanging feet.

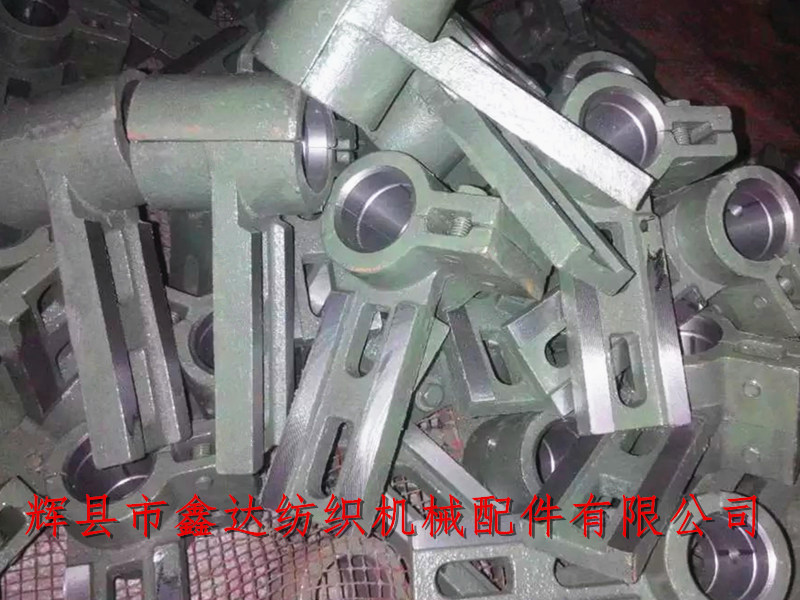

Due to the length of the crank shaft, two bearings (step seat) need to be added in the middle of the wide shuttle loom to ensure the concentric and balanced rotation of the bending shaft of the loom. The material of the intermediate bearings of 4323 and 4324 is gray iron HT15-33, with a height of 127mm and a width of 7.6cm. During installation, first fix two bolts on the side of bearing pedestal 4323, and then place the 4325 bearing cover. When tightening the bearing cover bolts, check whether the crank shaft can rotate flexibly.
The clearance between the bearing cover 4325 of the shuttle loom and the crank shaft is less than 0.45mm, and the minor repair is 0.5mm. The wall plate bearings 4321 and 4322 of the loom are installed on the wall plate of the loom to fix the crank shaft.Intermediate Bush,bush cap,crank shaft.
The accessories of weaving machine part No. 4300 belong to frame parts. The design of shuttle weaving machine parts is related to the door width. The shape of the parts used in weaving machine with door width (56 inch, 63 inch, 72 inch, 75 inch, 110 inch-280) is lengthened or widened. The frame can be divided into switch side and shuttle changing side.
