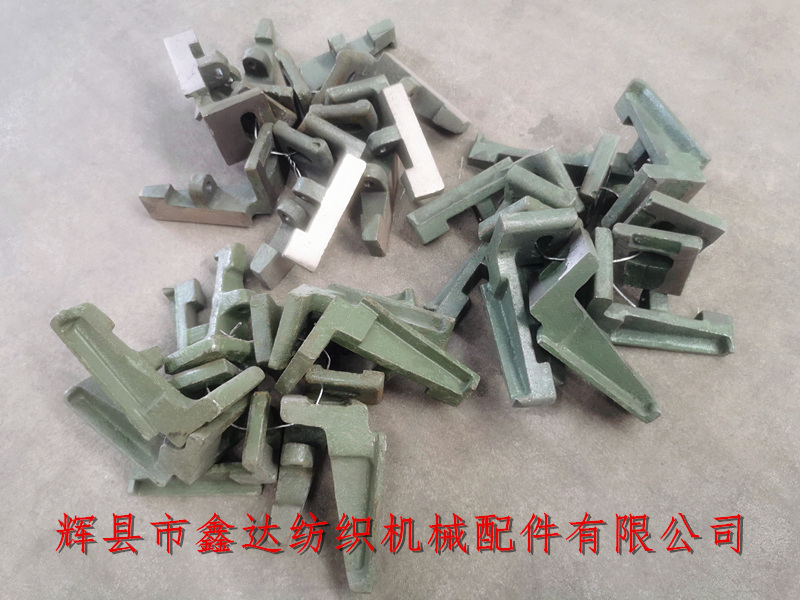

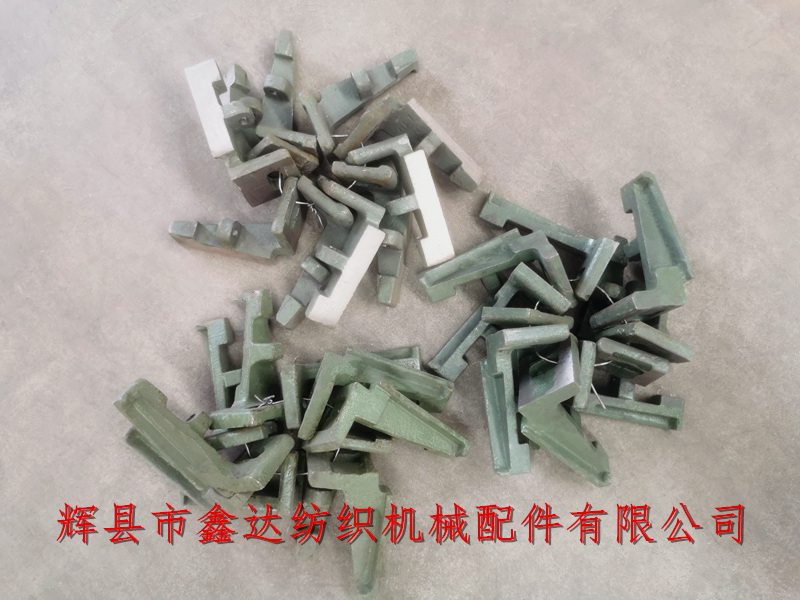

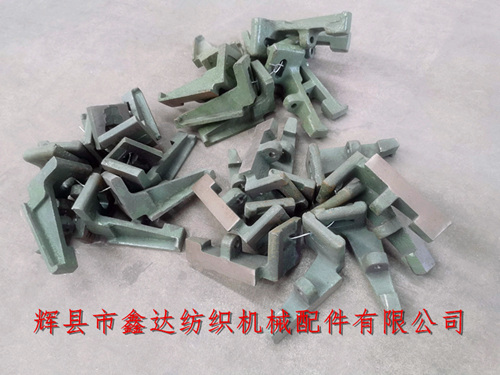

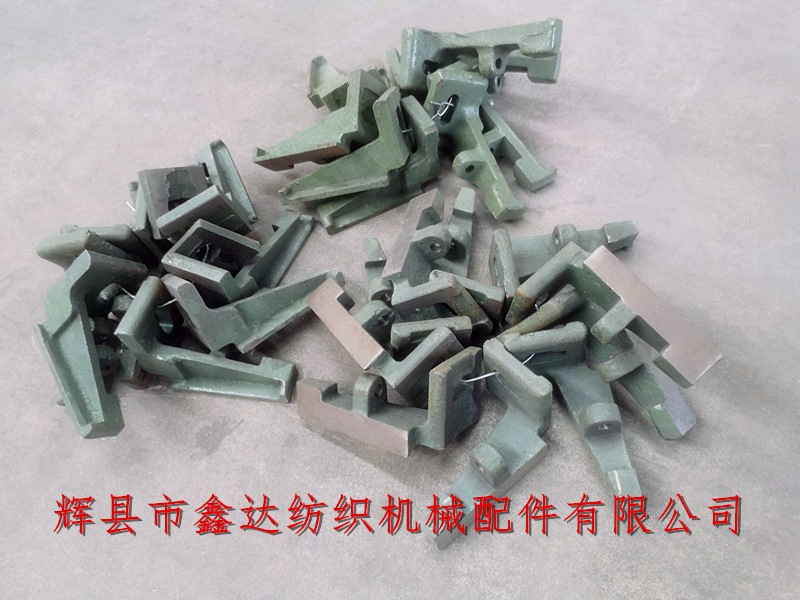

Huixian Xinda Textile Machinery Parts Co., Ltd. provides L19/L20 Temple Side Loom edge support feet 1515/1511/GA615 weaving machine accessories. The material of the weaving machine edge support feet L19/L20 is pig iron, mainly used to fix the extension rod L44 or edge support rod 3906 of the weaving machine. Temple Side L19 and L20 form the left and right hands, and each weaving machine uses one piece each.
The external dimensions of the side support feet L19/L20 of the weaving machine are: height of 118mm, width of the bottom plane of 56mm; 1515 type is fixed on the 4306 chest beam, GA615 type weaving machine is fixed on the 0101 chest beam, and 1511 type weaving machine is fixed on the P3 chest beam.
The surface of the L19/L20 loom edge support foot is flat and smooth, with a mesh gap of ≤ 0.8mm with the slider L21/L22. When the crankshaft is in the front dead center position, the angle with the shuttle board (Q2 or 3310) is 3.5 ° (measured with a standard).
When weaving wide fabrics, the edge support legs are installed at the inner ends of the third groove on both sides of the chest beam; When weaving narrow fabric, it is installed at the outer end of the fourth groove. The plane of the foot support is parallel to the shuttle board, with a distance of 20.5mm (1511 type). If you need to purchase edge support feet, weaving machine accessories, 1515 accessories, GA615 accessories, please contact our company for consultation!
