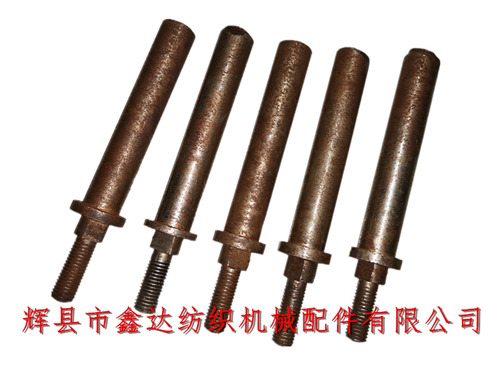

Our company has long provided J loom shuttle change inducer accessories, J00-1 weft fork hook screw core and loom shaft accessories. J00-1 weft fork hook screw core is composed of J3Y shaft body and J3Y-1 retaining ring, which is connected with the support rod foot of L15 winding roller of loom. The total length of screw core is 16mm, the diameter of shaft body is 20mm, and the thickness of flat part at the front is 11.7mm, The screw in front of the weft fork hook screw core is M12.
J00-1 weft fork hook screw core is a general accessory of loom, which can be lent to each other on shuttle looms of 1511, 1515, GA615 and other models. The outer diameter of the round table (retaining ring) is 29mm and the thickness is 5mm.
Textile machine shaft accessories, shuttle changing induction part-J00-1 of shuttle loom, one for each loom, regardless of left hand and right hand. The weight of a single spindle accessory is about 0.3KG.
For detailed loom shuttle changing accessories, weft fork hook parameters and loom screw size, please consult Mr. Yang of our company. The induction part of shuttle loom is used in conjunction with the automatic shuttle changing device, and the accessories used by looms with different door widths are the same (except the length of shuttle box).
