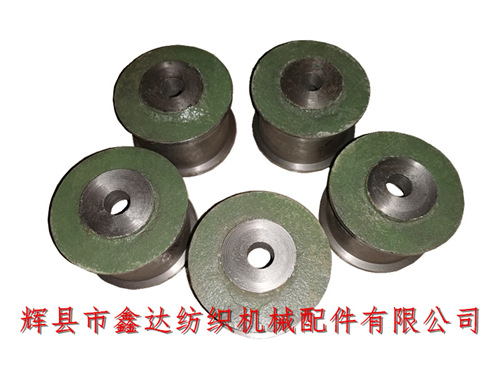

Huixian Xinda Textile Machinery Parts Co., Ltd. provides F104 bridge plate, a general part of shuttle loom. F104, also known as buffer bridge wheel, is a three wheel buffer part of shuttle loom. It is installed on the F101 / 101 buffer foot. It is made of gray pig iron HT15-33, with an inner hole diameter of 12mm, an outer diameter of 65mm, a height of 4.7cm, a smooth surface diameter of 57mm and an inner width of 33mm.
The thickness of the outer edge of the universal fitting F104 for shuttle loom is 4mm, the internal diameter is 48mm, and the weight of a single bridge tray is about 0.33kg. F104 bridge plate, F105 eccentric plate, F107 or f108 spring plate constitute a three wheel buffer device.
The shuttle loom accessory F104 bridge tray can be used on different types of looms, including 1511, GA611, 1515, GA615, 1515K and other models. The three wheel buffer device is mainly used to ensure that the shuttle can quickly reset the shuttle plate after the shuttle throwing action.
There are 10 F104 bridge plates in each string and 100 in each bag. If textile manufacturers need to purchase F104 bridge wheel or three wheel buffer parts, please contact our company for details. We adhere to the principle of "integrity management, pursuit of specificity and achievement of professionalism", and wholeheartedly provide satisfactory products for customers at home and abroad.
