Huixian Xinda Textile Machinery Parts Co., Ltd. provides 330 Heald Frame Plug 280 Shuttle Loom Parts. According to the width of the shuttle loom, it can be divided into 44 inches, 56 inches, 75 inches, 100 inches (2.5 meters), 110 inches (2.8 meters), etc. The 330 frame head (plug) is mainly used for weaving machine heald frame of 100 and 110 inches. The 330 frame head plug is used to suspend the inner length of 330mm steel wire heald, with a total length of 44.5 centimeters. There are two types of ears on both sides (referring to the number of rows on one side), and the head is embedded in the flat tube with a cut as an expansion port.
The 1515K-280 weaving machine frame is a framework composed of flat tubes on the upper and lower beams and plugs (wire heads) on both sides, used for hanging steel wire wire harnesses (wire harnesses) of suitable length. The material of the 330 spindle flat tube plug and 280 weaving machine spindle frame accessory is A3 cold drawn material.

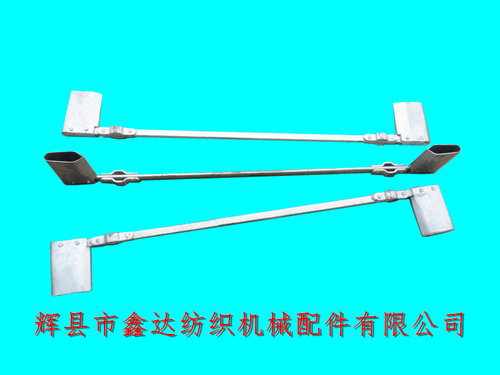

The above picture is a side elevation view (single row) of the 330 integrated frame plug. The integrated heads used in the integrated frame belong to textile hardware accessories. There are various forms of integrated frames for weaving machines, such as aluminum alloy integrated frames, wooden integrated frames, flat tube integrated frames, etc., and the plug materials and specifications used in them are also different. Each page of the integrated frame uses one upper beam and one lower beam, and two integrated frame plugs.
The packaging for the 330 Heald Frame Plug is: 10 pieces/bundle, 100 pieces/bag (woven bag). If you need to purchase products such as integrated frame plugs, integrated heads, textile flat tubes, integrated frame accessories, weaving machine accessories, etc., you can contact Mr. Yang from our company for consultation.
