Huixian Xinda Textile machinery accessories provides textile pig iron accessories K8 reed clip spring hook feet all year round. Textile hanging feet K8 are textile pig iron sanding accessories, which can be installed on looms of 1511, 1515 and GA615. They are general accessories of shuttle looms. The overall length of the base is 69mm and the width is 38mm, regardless of left and right hands, The spring hook foot of the reed clamp shaft is fixed on the reed foot on the switch side.
The inner hole of K8 base is 14mm and the thickness is 16mm; The inner hole for lifting the hanging foot head is 10mm, the thickness is 12mm, and the overall length is 13cm. The weight of a single K8 reed clamp spring hook hanging foot is about 0.4KG.

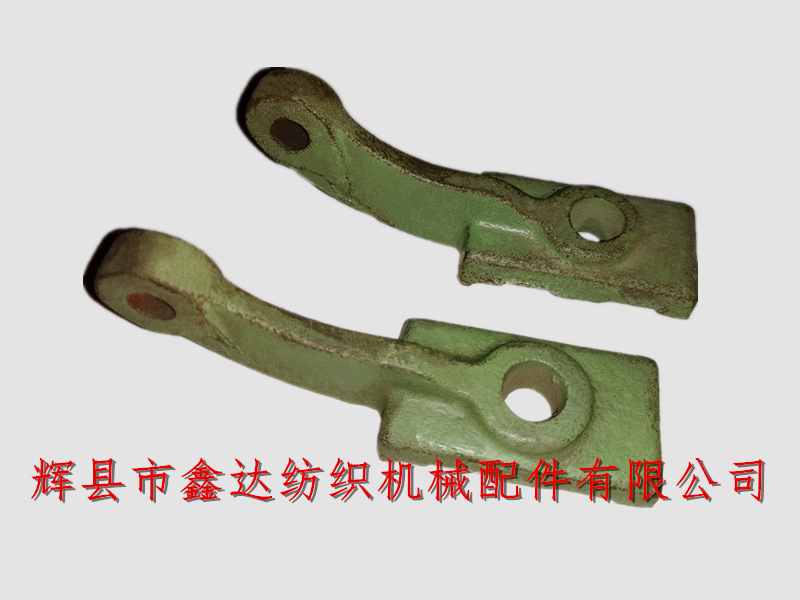

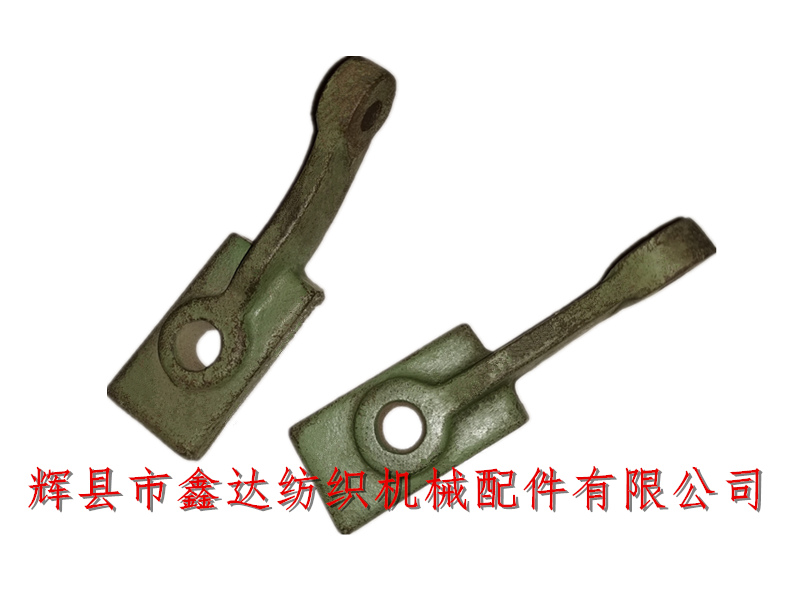

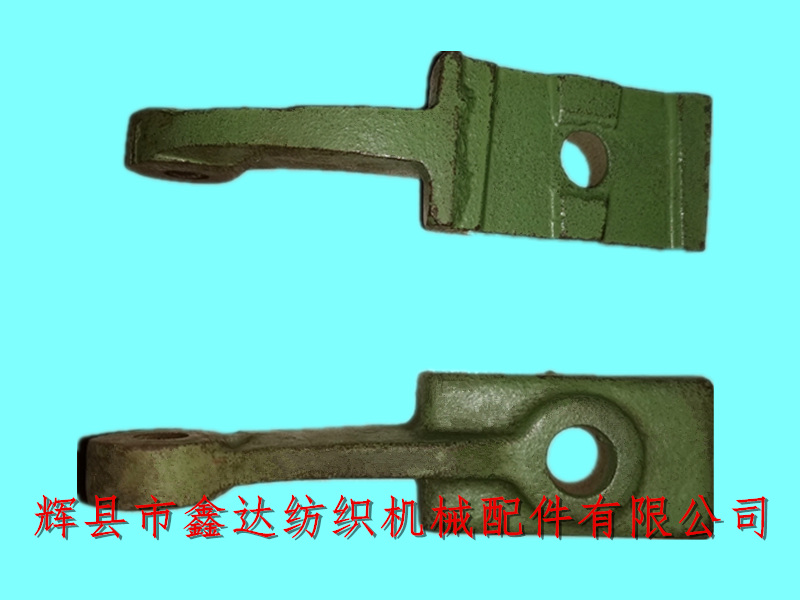

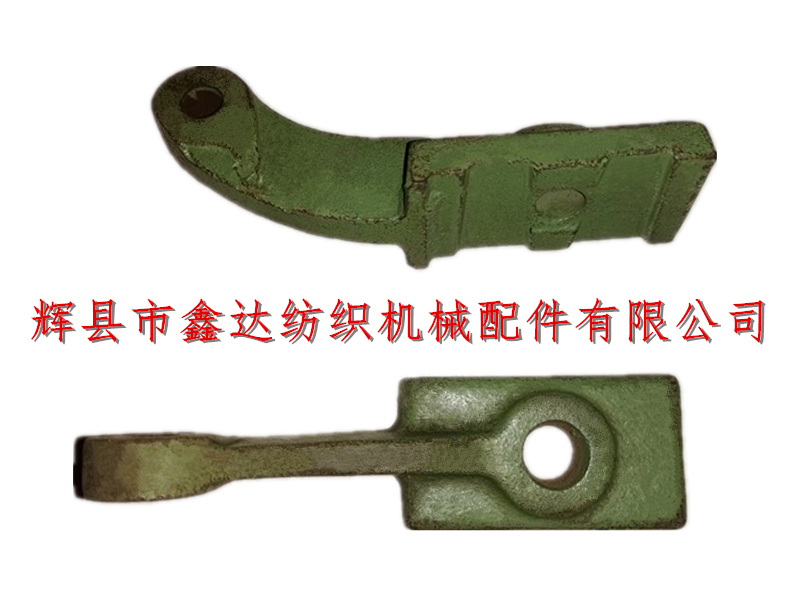

The above figure is the front and back view of textile pig iron fitting K8. The large hole is fixed on the reed foot, and the small hole is fixed on the C32 reed clamp spring hook.
Textile pig iron accessories include hundreds of products, which are distributed in many parts of the loom, such as let off, take-up, shuttle change, buffer, warp stop, heald lifting, etc. the main frame of the loom is also made of pig iron (ht15-32).
If you need to buy Textile pig iron, reed clip, spring hook, textile hanging foot and other products, please contact Mr. Yang of Huixian Xinda Textile machinery accessories! Special products can be processed by mold opening and sand turning. Welcome to inquire!
