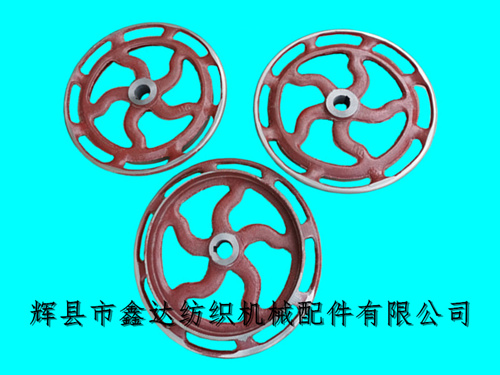

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides Shuttle Loom Parts, GA615-4118 weaving machine Brake wheel accessories ductile iron brake disc all the year round. The weaving machine brake wheel, also known as brake disc, is installed on the long shaft end of the loom crankshaft (bending shaft, crankshaft) 3209. The material is ductile iron (HT15-32 and manganese steel mixture). The outer ring diameter of 4118 brake wheel is 438mm, the outer diameter of the smooth surface friction between the inner ring and the brake steel belt is 342mm, and the diameter of the intermediate shaft hole is 40mm, The number of brake discs used by each GA615 loom is 1.
GA615 type 135 loom refers to the equipment with a width of 1.35 meters, i.e. 56 inch loom; The length of the intermediate shaft hole is 52.8mm, the width of the keyway is 12M, the depth of the keyway is 3.4mm, the outer diameter of the inner shaft hole is 66mm, and the diameter of the outer round table is 74mm; The width of the polished surface is 35.5mm and the thickness is 4.4mm.
The thickness of the outer ring of the doffer of the 4118 brake wheel is 15mm. This outer ring is mainly used to rotate the crankshaft of the loom by hand. The brake wheel is installed on the inner side of the 3210 bending shaft gear, close to the wall panel of the loom, regardless of left and right hands.
The weight of a single 4118 brake wheel is about 7.6kg, and the thickness of the five dragon ribs is 14mm. The shape of f216 is basically the same as that of 4118, but the difference lies in the size of the inner hole diameter. The inner hole diameter of f216 is 38mm, which is suitable for 1511 looms, and the inner hole diameter of 4118 is 40mm, which is suitable for 1515/GA615 looms.
Installation requirements of GA615-4118 weaving machine moving wheel accessories ductile iron brake disc: brake wheel 4118 and M12 key are closely matched, the journal and keyway are not allowed to crack, the wear of keyway is less than 0.3mm, and the adjacent two dragon ribs are not allowed to break or be missing. If you need to purchase textile brake wheel, brake wheel, loom accessories, GA615 loom accessories and other products, please contact Mr. Yang of Xinda Textile machinery accessories company for details!
