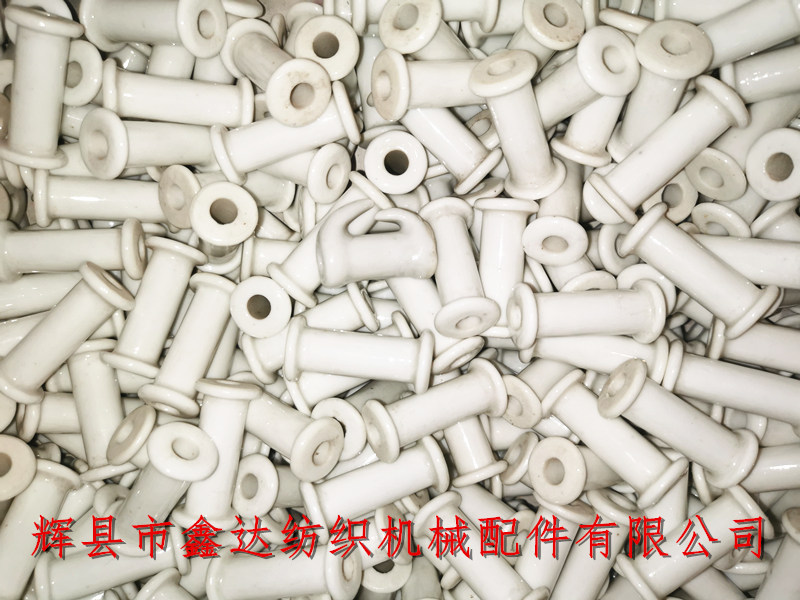

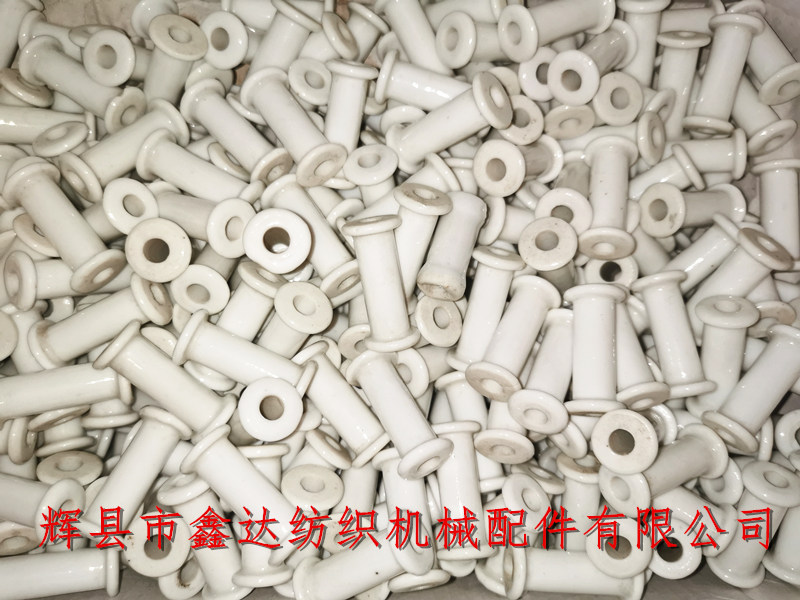

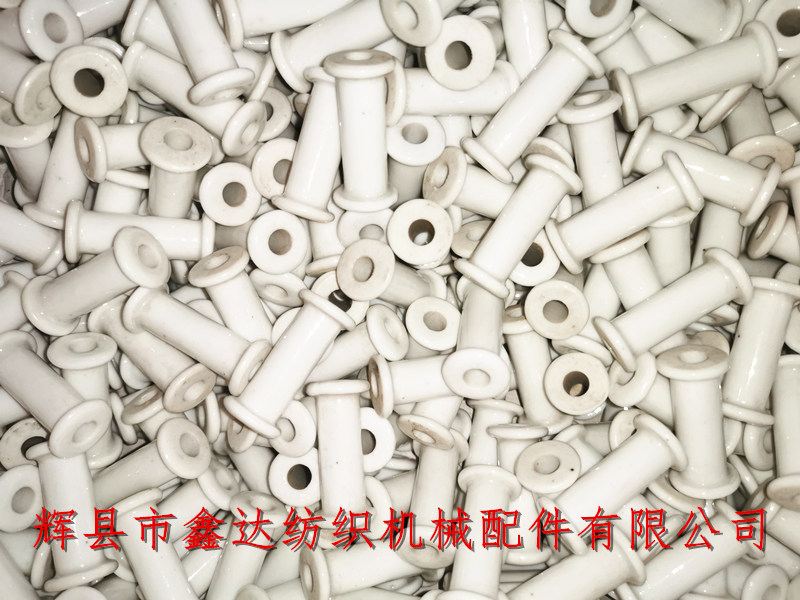

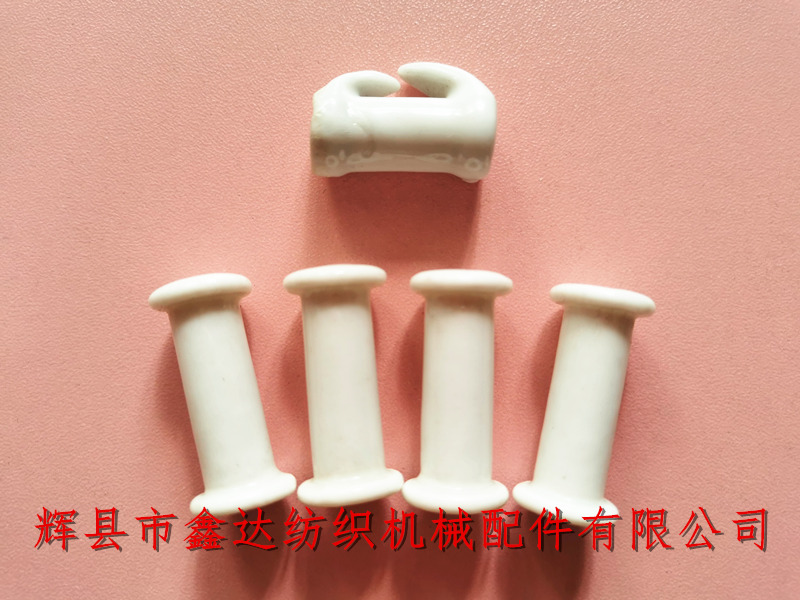

Huixian Xinda Textile machinery accessories provide some textile porcelain parts, white porcelain tube holder and ceramic hook. Textile porcelain cylinder, textile porcelain tube, porcelain base, ceramic hook and other accessories are mainly used for wire guide or yarn guide device. The outer edge diameter of porcelain cylinder seat is 14.2mm, the outer diameter of cylinder is 9.5mm, the straight diameter of inner hole is about 5.7mm, the height of porcelain cylinder seat is 31mm, the inner height of outer edge of both sides is 25.5mm, and the length of ceramic hook is 25.5mm The outer diameter is 10 mm and the inner hole is 5.5 mm。
The shape of textile porcelain parts (porcelain cylinder base) is like a parallel tube, and the outer edge thickness is about 3 mm.Textile porcelain, porcelain cylinder, ceramic hook, A layer of glaze is added to the white ceramic surface, which is smooth and fine. It is suitable for high-speed yarn or guide wire. It has good wear resistance and meets the demand of strength.
In order to ensure the opening speed of the web page, the size of the picture of the porcelain tube holder has been reduced, and the resolution has been reduced. There are many kinds of white textile ceramic products. The quality of the products depends on the firing process and glazing technology.
The textile porcelain parts used in warping machine, twisting machine, spinning machine, winding machine and other textile machinery have strict quality requirements. Sawdust is required to be filled in the transportation process. The vulnerable porcelain parts are not damaged by logistics. Under normal circumstances, if the damage is more than 30% of the goods, it can be negotiated, and less than 30% needs to be borne by the customer.
In addition, our company also provides various types and specifications of porcelain comb (five eye plate, three eye plate),Textile porcelain, porcelain cylinder, ceramic hook, textile porcelain boat (porcelain rabbit), porcelain eye and other products. If textile factories need to purchase textile porcelain parts, porcelain cylinder, ceramic hook and other products, please contact our company.
