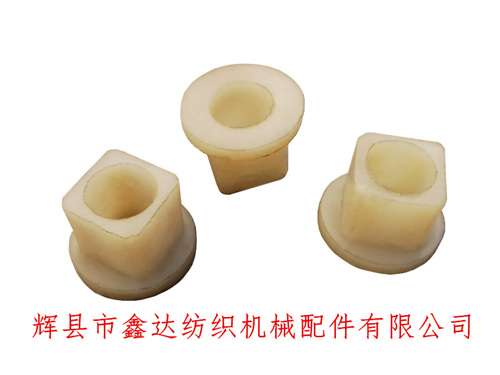

Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides a loom accessory -GA615-41117 nylon sleeve for guide pin of let-off adjusting rod, and GA615 inner let-off loom 4107 (let-off adjusting rod support pin) is installed with 41117 nylon sleeve in its chute, which is mainly used to reduce friction and resistance between mandrel and iron guide frame.

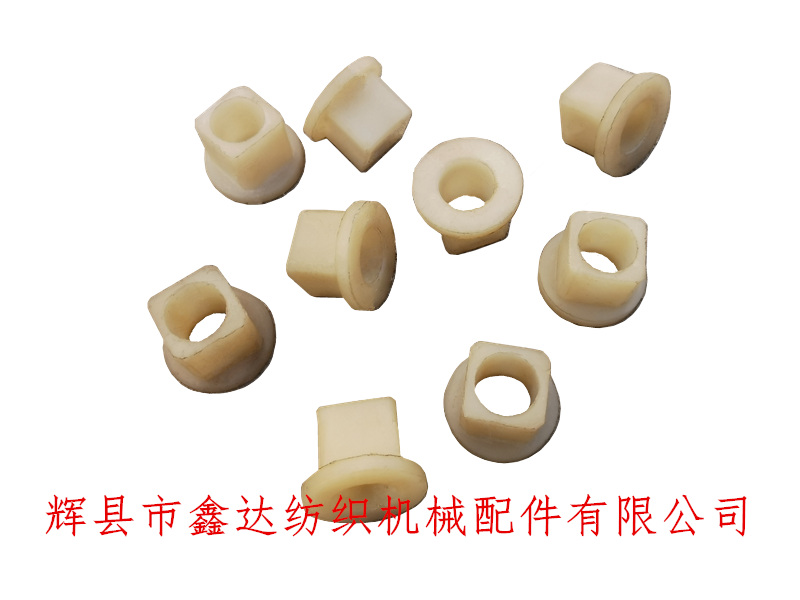

The outer side of the let-off fitting -41117 nylon sleeve of loom is provided with a circular stop disc, which is in the shape of a slider as a whole, and its periphery is square and its middle is round. The 41118 pin used for the let-off foot passes through the nylon sleeve, and the front screw is combined with a flat iron. Parameter size: the diameter of the circular baffle is 24mm, the thickness is 3mm, the side length of the square is 15.5mm, the height is 14mm, the inner diameter of the middle circular hole is 12mm, the total height of 41117 is 17mm, and the weight of a single plastic sleeve is about 3 grams.
Loom nylon bushing 41117 can also be applied to G1515 type equipment, and the number of each loom is one, and the installation position is under the breast beam of the loom, next to the lower part of the sley foot.
If you need to purchase let-off accessories, 41117 nylon sleeve, GA615 let-off guide pin, loom support pin, shuttle loom accessories and other products, you can contact Mr. Yang of our company for consultation. By default, it is order-based procurement, and delivery will be made within the agreed time according to the customer's purchasing needs.
