Huixian Xinda Textile Machinery Parts Co., Ltd. provides Loom Copper Sleeve 0113 Crank Shaft Bush,0113 bent shaft bushings (56 inch, 75 inch bushings) for old weaving machines. This part number belongs to G263 weaving machine and is borrowed from G263Z weaving machine for 1515. Its inner hole diameter is 40mm, outer diameter is 52mm, length is 93mm, and the diameter of the oil injection hole is 10mm. There are slight chamfers on the inner and outer sides of both ends. The weight of a single 0113 bent shaft copper bushing is 644 grams.
After the copper sleeve 0113 of the old weaving machine is combined with the 1511-D22 spherical bearing to form 0100-2, it is installed on top of the D21 spherical seat. Each weaving machine (56 inch, 75 inch) uses 2 sets of combination components.

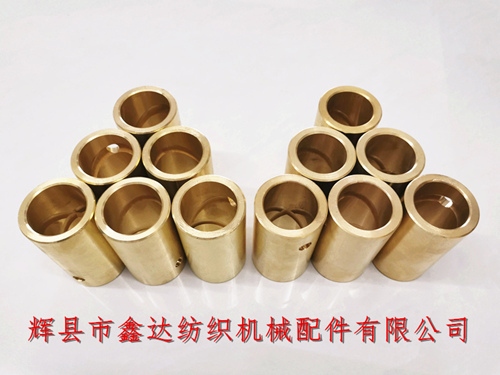

On the left side of the picture is the 0113 bent shaft copper sleeve, and on the right side is the D23 bent shaft bushing (inner diameter 38mm, outer diameter 52mm, single weight 745 grams). Loom Copper Sleeve 0113 Crank Shaft Bush,They have two intersecting oil wire grooves inside. When installing the weaving machine crankshaft, be sure to pay attention to the oil hole facing 45 degrees above the rear of the machine.
0113 copper sleeves can be used for woven fabric machines with door widths of 56 inches, 63 inches, 72 inches, 75 inches, etc. They are not affected by the machine door width. If various weaving factories and wide weaving machine processing factories need to purchase old fabric machine copper sleeves, textile bearing shells, shaft sleeves, lining sleeves, fabric machine copper sleeves, weaving machine accessories and other products, please contact Mr. Yang from "Xinda Textile Machinery Accessories"!
