Huixian Xinda Textile machinery accessories provides loom support foot bending shaft support foot F00-1, which is composed of one F39 loom support foot casting and two A31 bushings. It is used to support the bending shaft (crankshaft and crank shaft) of 1511 loom and is fixed on the motor side of the loom. Textile machinery accessories bending shaft support foot F00-1 does not divide left and right hands. Each 1511 loom uses one, and the weight of a single support foot is about 1.7 kg.
As shown in the figure above, 4107 on the support foot of the bending shaft of the loom is the part number of 1515 loom. Because there is little difference between the inner holes of the support foot used in 1511 and 1515, the small hole mold is used when casting the blank, that is, the same mold is used for the casting of 1511 and 1515, and the later processing is distinguished.Bending Shaft,Loom Support Foot,Textile Machine Parts,Loom Bending Shaft Support Foot F00-1.

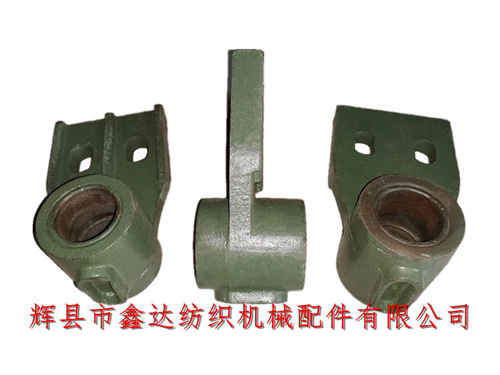

Appearance of loom support leg F00-1: 161.5mm long, 90mm wide and 70mm high; The diameter of the inner hole is 38mm, the outer diameter of the bushing is 46mm, and the outer width of the upper oil filling groove (as shown in the middle of the above figure) is 23mm, the inner width is 15mm and the inner length is 41mm. The supporting foot is a shuttle textile machinery accessory regardless of left and right hands. One is used for each 1511 loom.
The lower part of the bending shaft support foot F00-1 is fixed in the middle of the main support of F40 bending shaft by two M12 screws, and the plane is outward. The clearance between the loom support foot F00-1 and the bending shaft F38: 0.4mm for major repair and 0.5mm for minor repair (check with steel wire).
