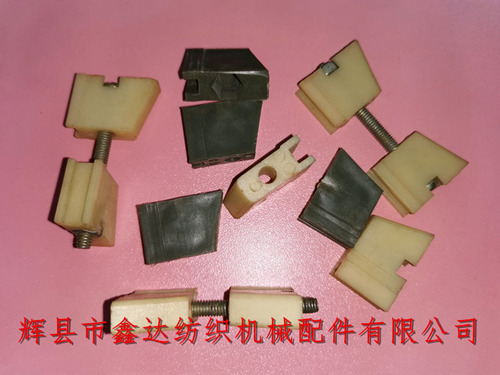

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides GA799 rapier heald frame parts tension block, textile heald frame nylon accessories, plastic parts. Two tightening blocks are fixed in the heald frame protection plate (guide plate) by M4 screws. The single shape length of nylon parts of this rapier machine is 24 mm, width is 16 mm, thickness is 8 mm, and there are sliding grooves on the side, which are fixed on the upper and lower beams of the heald frame.

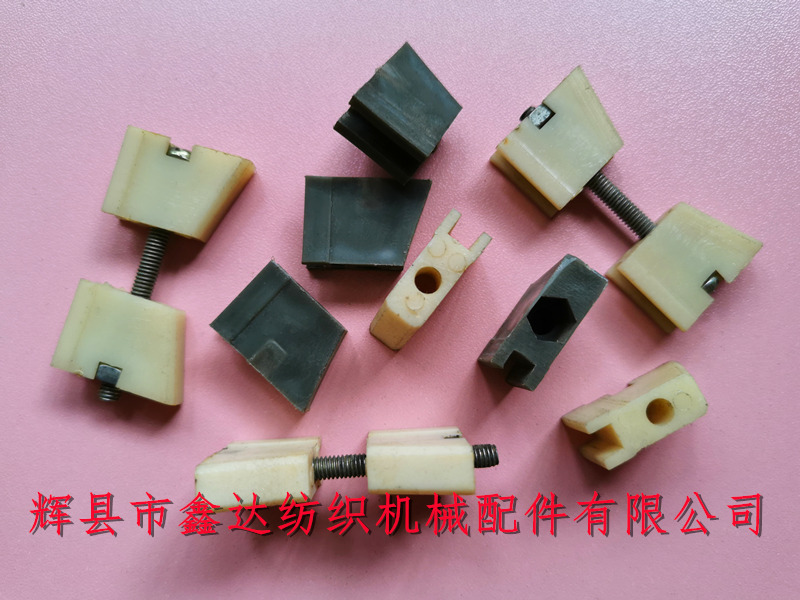

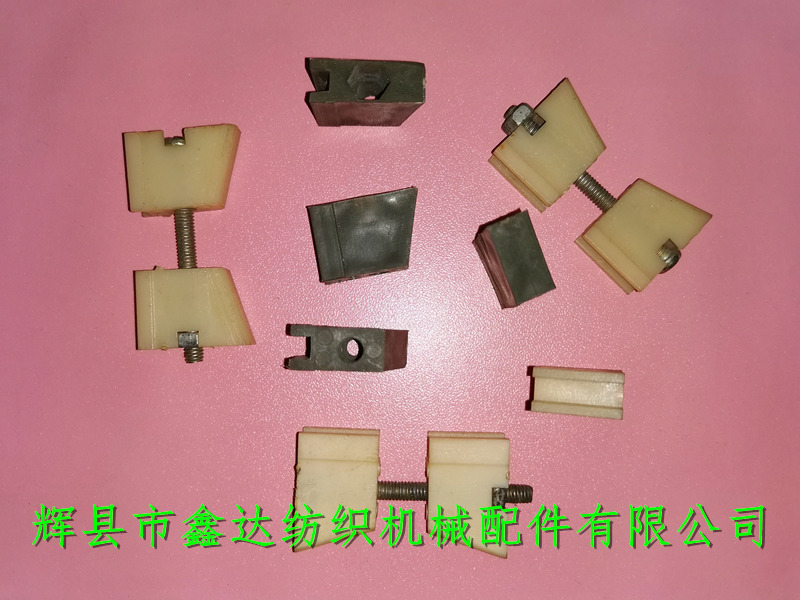

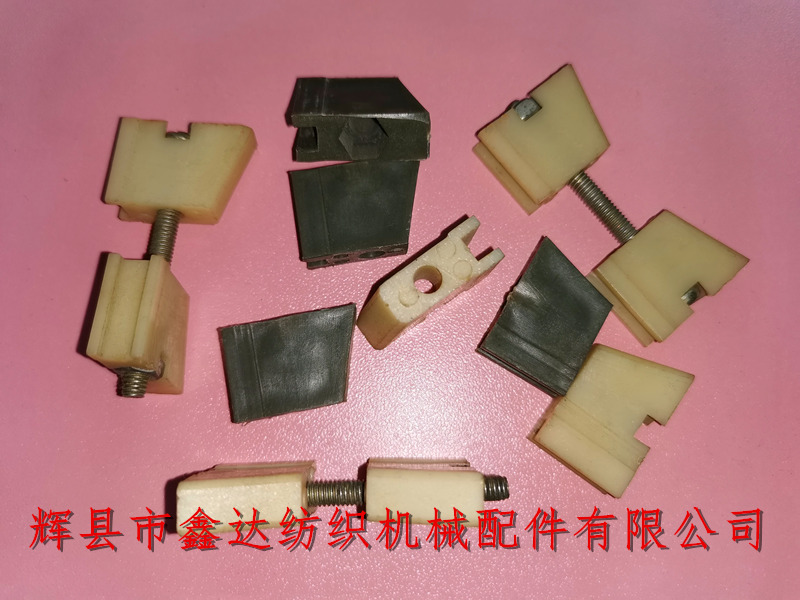

The fixing parts of the heald frame protection plate of the rapier machine are shown in the figure above, which are fixed by two trapezoidal nylon tension blocks. The whole set of nylon blocks is composed of round head bolts, hexagon nuts, nylon block 1 (round) and nylon block 2 (hexagon).
Each heald frame of ga799 rapier machine uses 4 sets. According to the different number of heald frames used by each rapier, please convert the quantity by yourself. The specifications of the tensioning block of heald frame accessories of rapier are the same in Zhejiang rapier machine, Shanghai Zhongfang rapier machine and Zhengzhou Textile machine.
The screw specification used in the tightening block is m4x45, cross round head type. If you want to purchase textile tension block, rapier heald frame, loom heald frame accessories and other products, please contact Mr. Yang of our company for consultation!
