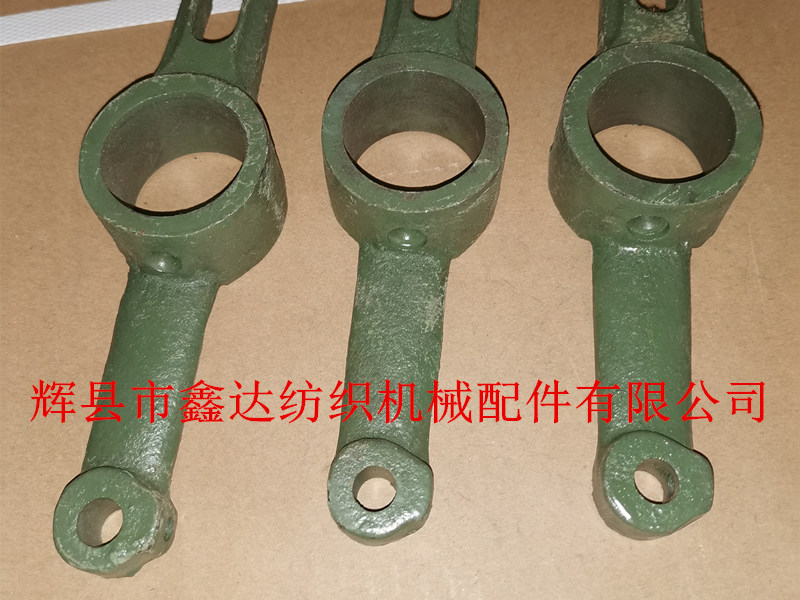

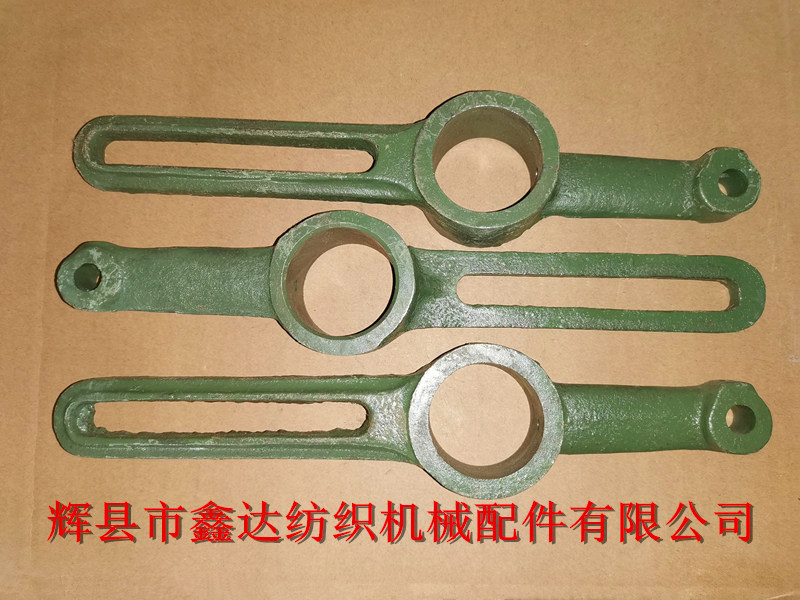

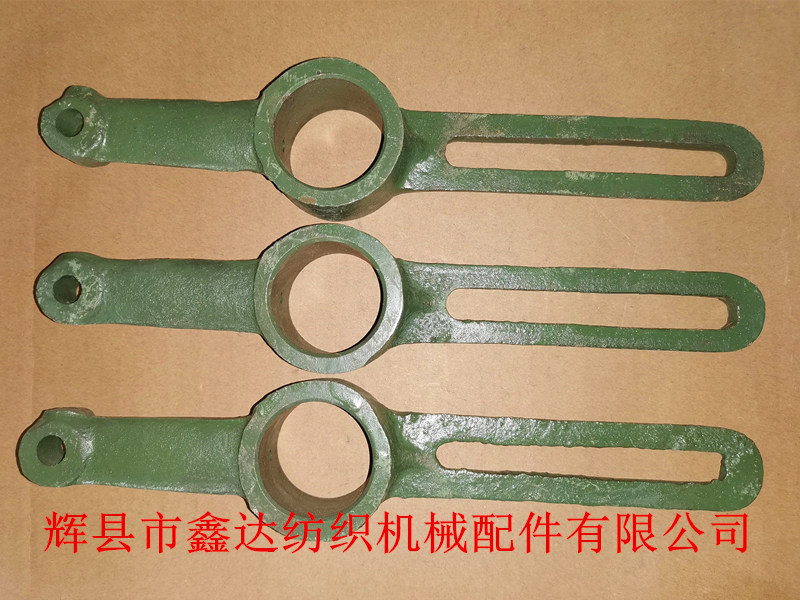

China Xinda Textile Machinery Accessories Co., Ltd. has long provided various models (1511, GA615, 1515) of feed through serrated wheel supporting rod, B22 loom accessories, there are shuttle loom internal feed through components, textile machine horizontal internal feed, vertical external feed through accessories, the material of internal feed through B22 is pig iron, the color is green, the diameter of inner hole is 38mm, the diameter of B55 hole is 10 mm. Textile accessories - internal let off B22 should be used in 1511, 1515 and GA615 internal let off looms.

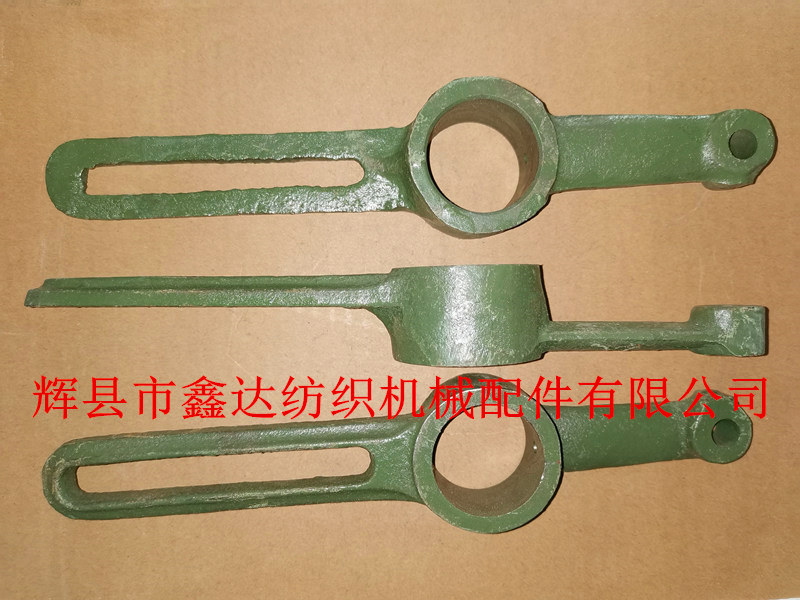

C34 adjusting rod is installed in the supporting rod chute of B22 textile accessories, which is fixed on B20 let off saw gear, regardless of left and right. It is required that the abrasion of chute and C34 head end is less than 1.6mm, the transverse clearance of supporting rod B22 is less than 0.8mm, the width of long groove is less than 1.6mm, the fit clearance with adjusting rod is less than 2.5mm, and the clearance with serrated wheel is less than 0.4mm.
The inner holes of the supporting head B23, B24 and B25 of the feed saw gear are 10 mm, which are connected with B55. The supporting rod uses the inclined teeth of the supporting head to push the serrated wheel for the feed. The internal feed device is simple and convenient for maintenance, and is located under the bottom of the machine.
B22 loom is mainly used in 1511 and 1515 shuttle looms, one for each, 10 pieces / bundle, and the weight of single finished product is about 0.55kg.
Weaving machine, saw gear, internal let off, B22 weaving machine let off serrated wheel supporting rod produced by Huixian Xinda Textile Machinery Accessories Co., Ltd.
