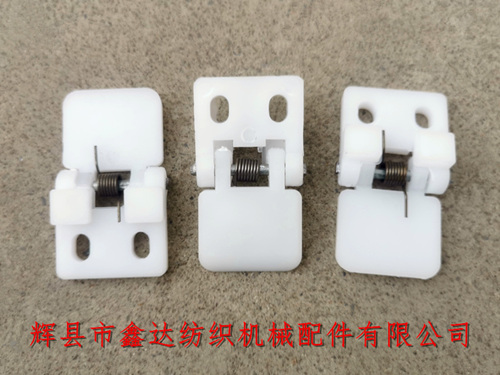

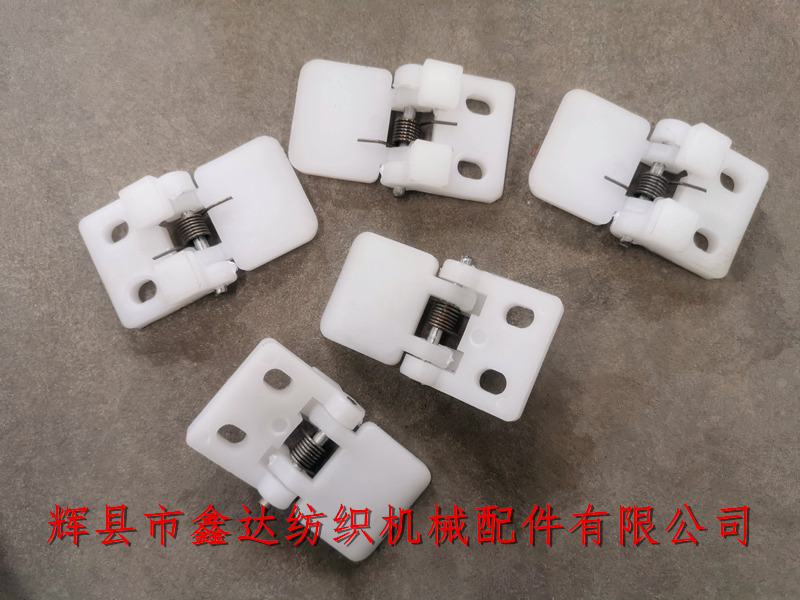

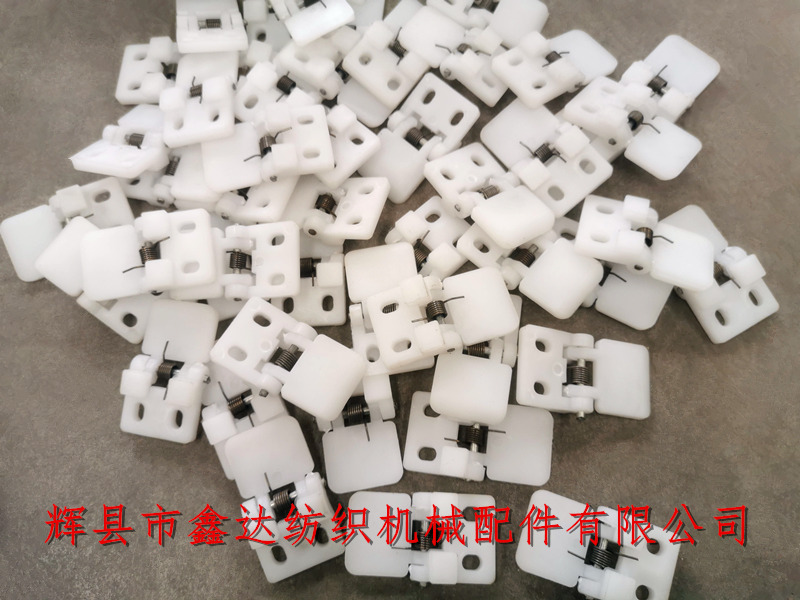

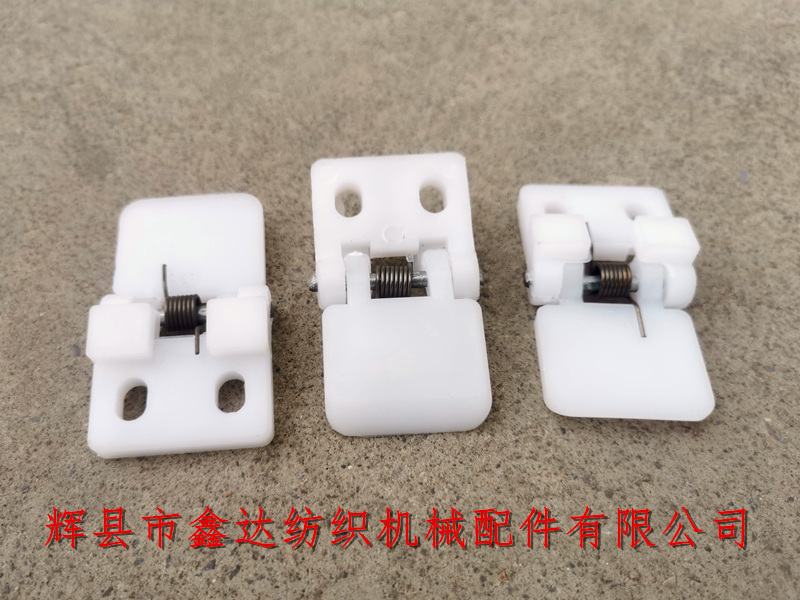

Huixian Xinda Textile Machinery Parts Co., Ltd. provides N00-1 Loom Hinge For Shuttle Limitting Plate,stop shuttle hinge connectors with shuttle changing parts for shuttle weaving machines. The N00-1 stop shuttle hinge is composed of N24 hinge plate, N53 spring, N22 base, and 4.5 * 38mm pin combination. The overall length is 69mm, the width of the base N22 is 38mm, the thickness above is 11mm, and the width of N24 is 36mm. The N00-1 blocking shuttle hinge joint is a shuttle changing component for 1511/1515/GA615 and other models of shuttle weaving machines.
The blocking shuttle hinge is installed at the rear of the weaving machine shuttle compartment N14, with a usage of 2 sets per weaving machine, used to provide appropriate resistance to the shuttles in the shuttle compartment.
When using the N00-1 loom, when the N24 hinge plate is lifted up enough, it should be 3mm higher than the shuttle, at a 90 °±1 ° angle to the N22 surface of the shuttle stop hinge, and both shoulder plates should be in full contact.
The packaging of N00-1 blocking shuttle hinge joint: transparent self sealing bag, 20 pieces per bag, with no minimum order quantity requirement. If you need to purchase N00-1 shuttle hinges, loom hinge, textile shuttle boards, weaving machines, shuttle replacement parts for weaving machines, textile equipment and other products, please contact Mr. Yang from our company.
