Huixian Xinda Textile Machinery Parts Co., Ltd. provides fabric weaving shuttle pliers and shuttle core kits for textile machine hardware accessories.Harp Pliers,Shuttle Spare Part,Weaving Shuttle,Textile Hardware, The small pliers are divided into various specifications, including folded and non folded, steel wire, flat steel with grooves, and so on. The combination of this pliers and cracked shuttle core kit is used for stainless steel mesh weaving machine shuttles. The total length of the shuttle core is 100.4mm, and there is a raised clamp head above the rectangular head (used to fix the winding tube from rotating), The dimensions of a cuboid are 19mm in length, 9mm in width, and 9mm in height.

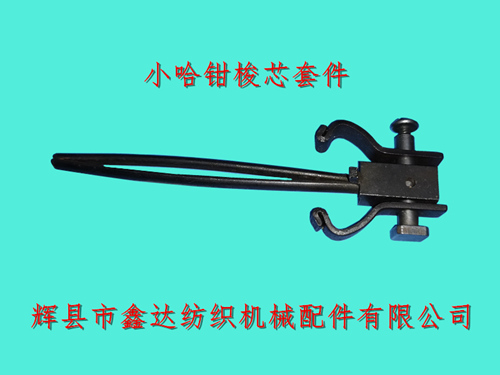

The supporting shuttle spring (also known as the bottom spring, as shown in the figure above) is narrower and longer than that of conventional cotton looms. The figure above shows the assembly diagram of the shuttle core, pliers, and pin screws. The cracked rod of the shuttle core is forged into two semicircles, with a width of 5mm and a thickness of 4.6mm at the front of the shuttle core.
The inner diameter of the large circular hole of the shuttle core is 5mm, with chamfers on the edges. The small hole is an oil injection hole, with an inner diameter of 2.5mm. The weight of a single shuttle core is 23g, with 250 pieces per package and a minimum order quantity of 500 pieces.
The above figure shows the counter pin screw seat, one for each shuttle. There are many kinds of textile hardware accessories, which are important components of the loom equipment. Different shapes, different materials and different designs are all designed to meet the use needs of the machine.Harp Pliers,Shuttle Spare Part,Weaving Shuttle,Textile Hardware.
There are over 200 types of weaving shuttles, which can be divided into wood shuttles and nylon shuttles based on materials. Harp Pliers And Core Kit For Weaving Shuttle, They can be divided into composite shuttles, red steel paper shuttles, and laminated wood shuttles based on processing technology. According to design, it can be divided into: cotton weaving shuttle, silk weaving shuttle, web weaving shuttle, gunny bag shuttle, changing shuttle, ribbon shuttle (flat shuttle, curved shuttle, horseshoe shuttle), fiberglass shuttle, traveling shuttle, etc.
