Huixian Xinda Textile Machinery Accessories provides 1515 textile machine accessories - Dobby arm and multi shuttle accessories loom multi shuttle box Gourd shell C-14/C-15. The multi shuttle box hoist shell is used to install and fix the C-40 shuttle box hoist, with C-14 for the left hand and C-15 for the right hand. Each 4X4 loom uses one each. The length of the shuttle box gourd shell is 124mm, the width is 85mm, the total thickness is 40mm, the thickness for fixing the gourd position is 31mm, and the inner diameter of the circular hole is 10mm.

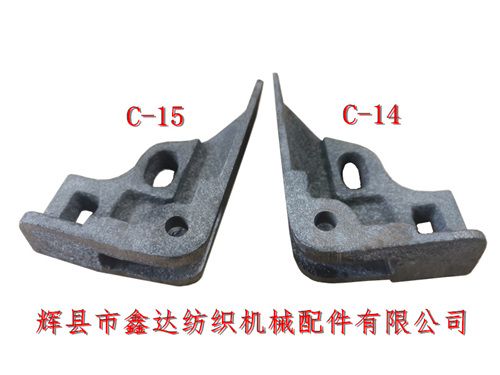

On the left side of the picture is C-15 (right hand), and on the right side is C-14 (left hand). In the middle of the picture, the rectangular hole has an inner width of 10mm and an inner length of 20mm.
The above figure shows the front and back views of the 1515 multi shuttle box hoist shell, which is installed in the upper right or upper left corner of the 214M multi shuttle box. The shuttle tip of the loom shuttle presses against the shuttle box hoist for lifting and lowering actions.1515 Multi Shuttle Accessories,Dobby And Multi Loom Spare Parts, GA615 Multi Shuttle Box, Gourd Shell, Textile Machine Accessories.
The above picture is a top view of the back and side of the 1515 multi shuttle box gourd shell. The vacant position on the right is used for the shuttle box gourd. The material of C-14 and C-15 is gray pig iron HT15-33. The left and right hands of the multi arm and multi shuttle accessory loom's multi shuttle box gourd shell C-14/C-15 are distinguished based on the position of the C-40 pulley.
Multi shuttle box accessories C-14/C-15 without packaging, 10 pieces/string; If you need to purchase 1515 multi shuttle accessories, multi arm accessories, 214M multi shuttle box components, gourd shell accessories, and other shuttle textile machine accessories, please contact Mr. Yang from our company for consultation. We warmly welcome new and old customers to visit us.
