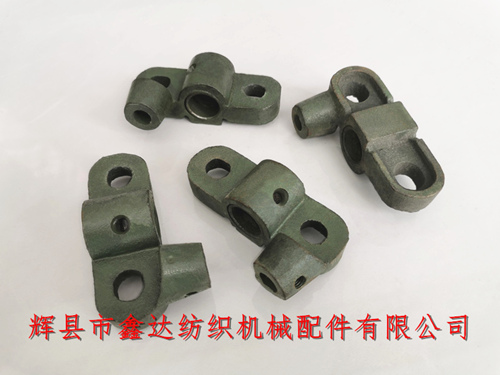

Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides the hook foot L00-2 (switch side) of the 1511/1515 loom. The hook foot L00-2 is divided into right and left hands. It is composed of a L26 hook foot and two A30 bushings. The material of the hook foot is HT15-33, and the bushing A30 has two materials: powder metallurgy and nylon 1010.
The distance between the two fixing holes (center) of the leg of L00-2 bristle roller is 76mm, and there is an oil hole in the middle. Because of the low rotation speed of the shaft head of the bristle roller, a small amount of engine oil will be stored at the interval between the two bushings.
If you need to purchase products such as 1511/1515 loom's quill roller hanger L00-2 (switch side), L00-3 shuttle changing side, quill roller, loom hanger, quill roller hanger and loom accessories, please contact Mr. Yang of our company for consultation.
1511 loom accessories, the left and right hands of 1515 loom quill roller hanging feet are used together with L00-3 quill roller hanging feet (on the side of shuttle magazine).
