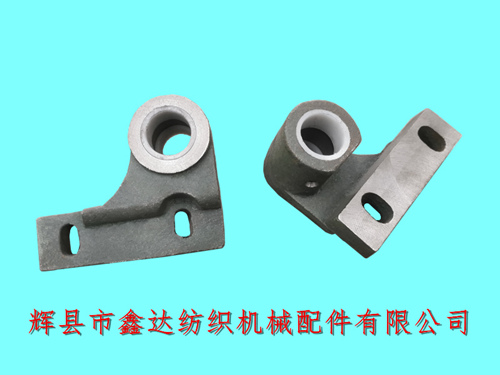

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 6100-9/10 twill weaving machine peach disc (tread disc) shaft hanging feet. The dimensions of this twill peach disc hanging foot are: the total length of the upper part is 128mm, the thickness is 21mm, the inner diameter of the lower shaft hole is 30mm, the outer diameter of the inner nylon sleeve is 36mm, the outer diameter of the circular cone is 52mm, and the length of the shaft hole is 63mm.
The 2/2 diagonal peach plate shaft hanging foot is composed of 6112 (improved version) and 3439 nylon sleeve, and the total height of the supporting foot is 105mm. The main material is HT15-32， 6100-9 and 6100-10, which form the left and right hands and are respectively installed on the GA615 or 1515 weaving machines on the right and left hands.
The 6100-9 peach disc shaft hanging feet are used in two sets each on right-handed 1350mm, 1500mm, and 1800mm looms, and one set each on left-handed 1500mm and 1800mm looms. They are connected to 4309 (middle front and rear support bracket) and 4313 (front and rear support bracket) for use.
The 6100-10 diagonal peach disc hanging feet are used in two sets each on the left-hand 1350mm, 1500mm, and 1800mm looms, and one set each on the right-hand 1500mm and 1800mm looms. They are connected to 4309 and 4312 (front and rear support stops) for use.
