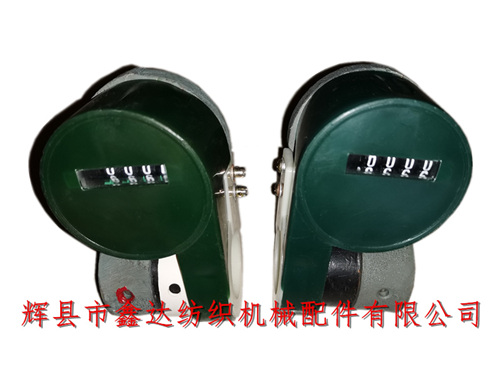

Huixian Xinda Textile Machinery Accessories Co., Ltd. has long provided rapier loom (small jet) code meter and meter counter. The textile jet code meter and rapier meter are borrowed from 1515, 1511 and other shuttle loom length meter, which need to be properly modified next to the waste edge yarn wheel. The overall dimensions of the textile meter are 121mm long, 75mm wide and 55.5mm thick, The main body is made of cast iron, strong and durable!
The above figure is the side view of the meter (Textile meter), the diameter of the inner hole is 30.9mm, and the weight of a single meter (meter) is about 0.95kg. The textile length counting tool code table is divided into left and right hands. Generally, the right hand is used for rapier looms and small jet looms (installed on the right side of the machine). It is suitable for rapier looms and small jet looms with various door widths (medical gauze).
When refitting rapier and jet, it is necessary to install casing according to the inner hole, and ensure that there is a gap of 6.5cm for installing code meter. The four digit counting textile code meter (meter counter) is packed in wooden cases with 40 pieces in each case.
The operation of GA74 series rapier loom code table is the same as that of small air-jet loom. The code table (meter counter) does not reserve a port for manual zeroing, which is mainly to prevent private modification of the displayed figures. If you need to buy rapier loom code meter, meter counter, jet code meter accessories, please consult our company for details!
