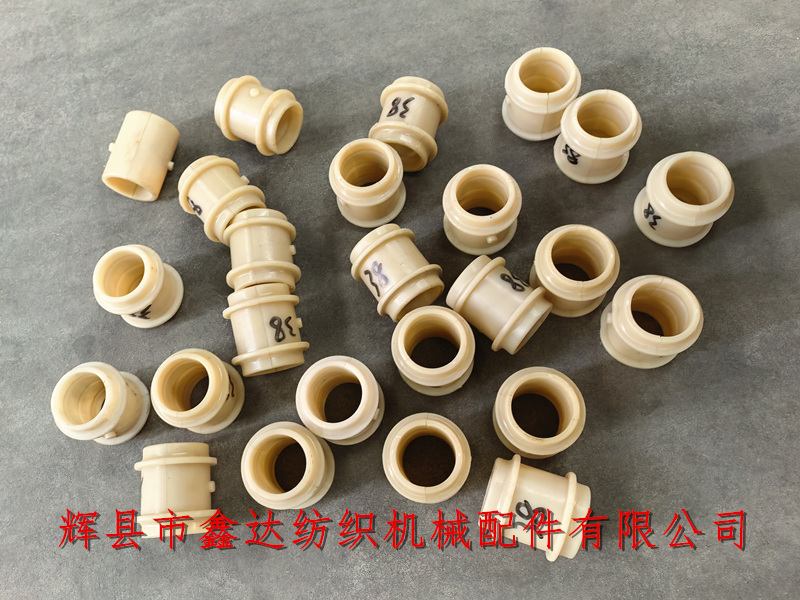

Huixian Xinda Textile Machinery Parts Co., Ltd. supplies Brass Step For Crank Arm K77*78/3207*3208, nylon bushings loom handwheel bearings (K77*K78/3207*3208), and Type 1511 loom handwheel bearings (Crank Arm T-type K77*K78 with outer edge). The inner hole diameter of the bushing is 38mm, compatible with the K00-1 handwheel (crank arm) assembly. For Type 1515 looms, the handwheel bushing model is 3207*3208, with an inner hole diameter of 40mm, and is paired with the 3200-2D handwheel.Shuttle Loom Nylon Parts and Plastic Accessories.

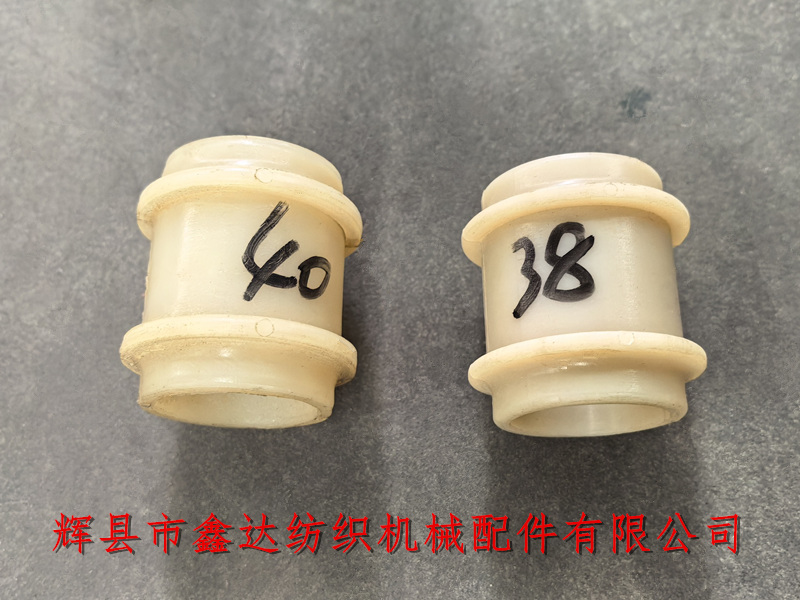

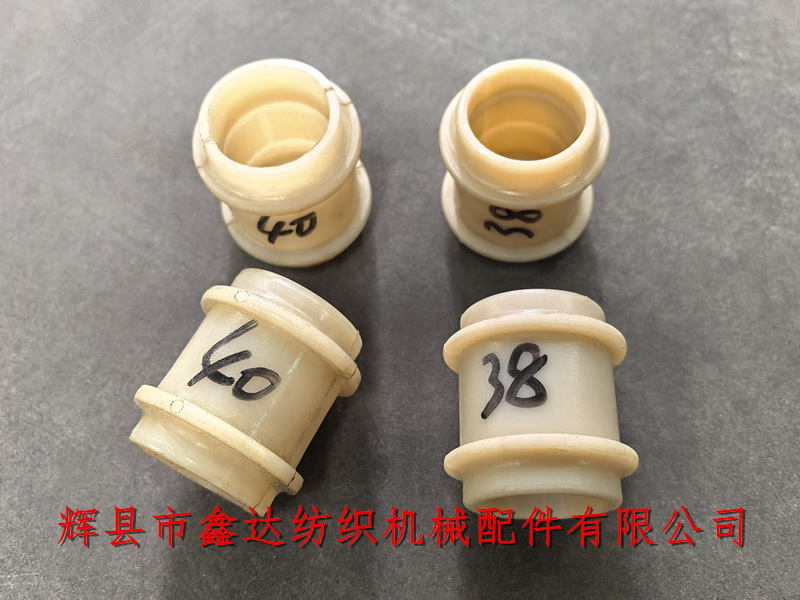

On the left side of the picture is a 3207*3208 with an inner hole diameter of 40mm, and on the right side is a 1511 type K77T*K78T nylon bearing accessory. The shuttle looms hand holding shaft lining component is made of nylon material, which has the characteristics of low noise, low cost, and minimal wear on the weaving machine bending shaft (crank shaft).

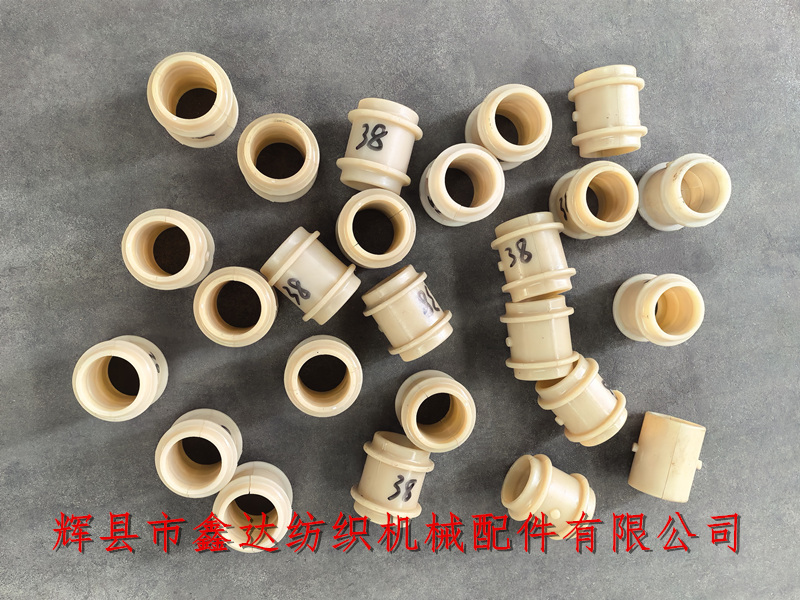

The straight cylindrical hand holding bushing in the upper left corner of the picture is K77B * K78B type. Each 1511, GA615 or 1515 model weaving machine uses 2 sets of hand holding bushings. The inner wall of the nylon bushing has oil grooves. In the daily weaving production process, it is necessary to strictly pay attention to whether there is a lack of engine oil (lubricating oil) to avoid major faults when friction generates heat.
Nylon textile accessories and plastic parts for weaving machines are used in mechanical transmission to reduce friction.The Brass Step of Loom Crank Arm have K00-1,3100-1D,3200-2D etc kinds; Powder metallurgy or copper material bushings are applied to different parts of the loom, and copper bushings are recommended for key parts of power transmission.
If you need to purchase weaving machine nylon bushings(Brass Step), weaving machine hand bushings or other nylon sleeve products of GA615-3207*3208, 1515-3207*3208, 1511-K77*K78T and other models, please contact Mr.Yang from our company for negotiation. Welcome to visit.
