Huixian Xinda Textile Machinery Parts Co., Ltd. provides custom-made shuttles of various models and wholesale of wooden shuttles all the year round. Russian Loom Wooden Shuttle Manufacturer, The 415mm Russian shuttles are designed with steel paper with four bunches, which is opposite to the narrow upper and wide lower shuttles in China. In the process of custom-made wooden shuttles, the manufacturer adopts the reverse loading method for angle processing. The shuttle core (shuttle drill rod) used in the shuttles is generally with reed, and some of them also use the split type shuttle core. The principle is to tighten the inner hole of the weft tube (silk tube), Prevent the weft tube from rotating on the shuttle core during the high-speed movement of the shuttle, thus affecting the yield of weft yarn.

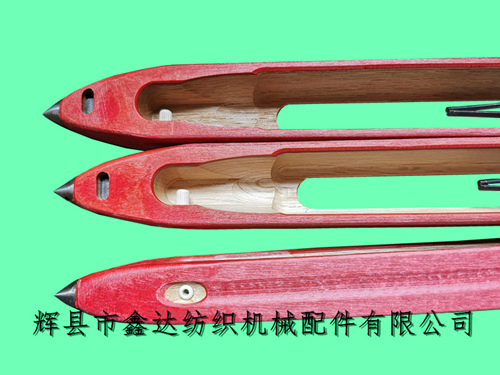

Due to the long length of this kind of wooden shuttle, the compressed wood material cannot reach its length, so the green balsam wood is used as the main body of the shuttle. According to the material characteristics of the green balsam wood, red steel paper should be applied on the periphery of the shuttle to enhance its wear resistance. Influenced by the green balsam wood material, the shuttle tip used cannot be angle mesh type (the shuttle head is embedded with a tension spring), but only flat iron nut type (see the right side of the above figure), This can prevent the shuttle tip from dropping during use. The nylon cushion block at the pipe weft slot is used to enhance the abrasion resistance of the pipe weft slot and prevent the pipe weft slot from being damaged and falling off.
The front of the Russian shuttle is designed with a single porcelain eye. The porcelain eye is lengthened. The outer width of the shuttle bottom is 32.2mm, the outer width of the upper part is 38.5mm, and the total length is 415mm. The included angle between the bottom surface and the two sides is 90 degrees (porcelain eye side) and 93.5 degrees. The length of the shuttle's inner chamber is 266mm, and the inner width is 27mm.
Shuttle,Wooden Shuttle,Shuttle Manufacturer,Russian Loom, See the above figure for the details of the wooden shuttle wrapped with red steel paper. The thickness of the red steel paper is between 1.5 mm and 2 mm. As the red steel paper is processed from cotton and pulp as the main raw materials, it has good wear resistance and low noise; This Russian loom shuttle can be divided into left hand shuttle and right hand shuttle according to the direction of the porcelain eye. The minimum order quantity of wooden shuttle is 300, and the delivery period is about 60-65 working days.
Russian shuttles are mainly used in the Middle East, Türkiye, and around Uzbekistan. The common packaging method is carton, 70 shuttles per carton, and the weight of a single one is about 0.35kg. If you need to purchase this kind of wooden shuttle products, please contact Mr. Yang of Xinda Textile Accessories to discuss the details. We will wholeheartedly provide services for new and old customers, and welcome your presence!
