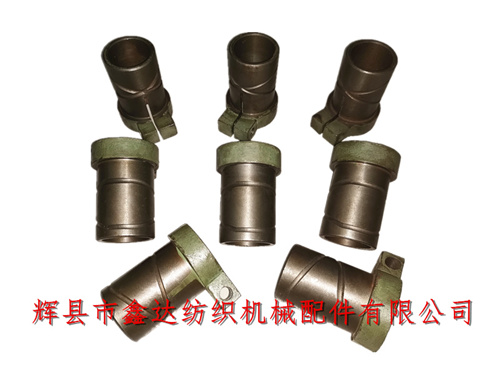

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides shuttle textile accessories throughout the year. E6B is a sleeve installed in the middle of the tread shaft, E6 Sleeve For Tappet Shaft Middle Bracket, made of HT15-32 pig iron, with an octagonal oil trunking on the surface. The outer diameter of the processing surface is 52mm, the diameter of the inner hole is 42mm, and the tightening port is locked with M10 screws. The number of looms with different door widths or models is different. 1511-44 uses one textile sleeve, The 56 inch 1511 or 1515 uses two sleeves, and its use quantity is the same as the number of supports under the loom.
The old shuttle textile fitting E6B is left-handed and right-handed. In the above figure, the outer diameter of the green base is 65.7mm, the height of the base is 22.5MM and the transverse length is 80.5mm; The total height of the pedal shaft sleeve E6 is 92 mm.
The machined surface of textile sleeve and loom tread shaft sleeve E6 shall be polished. There are 10 sleeves in each string. The weight of a single E6 sleeve is about 0.7 kg. The width of the side notch is 3.5 mm and the height is 36 mm. It is suitable for shuttle looms of 1511, 1515, GA615 and other models. It belongs to the general part of shuttle loom, which is referred to as the general part of loom for short.
There are more than 1000 types and models of shuttle loom accessories, including treadle shafts of different lengths, textile accessories of various materials, loom general parts and borrowing parts, various textile sleeves, step sleeves, step bearings, etc. if you need to purchase textile accessories E6, sleeve loom general parts for supporting feet in treadle shafts, please contact Mr. Yang of our company!
