Our company provides side brace, side brace box and spindle of 1511 44 loom. The product belongs to textile assemblies. It consists of side brace base, side brace cover, wood spindle and spindle of extension burr roll. L49 extension box and L50 extension cover are fixed on L44 loom. They are used for side bracing device of 44 cloth face. The burr rollers of wood spindle L55, L56, L57 and L58 extension box (left spine, right spine) are fixed on the spindle. The rod is used and hidden in the side support box of the loom.

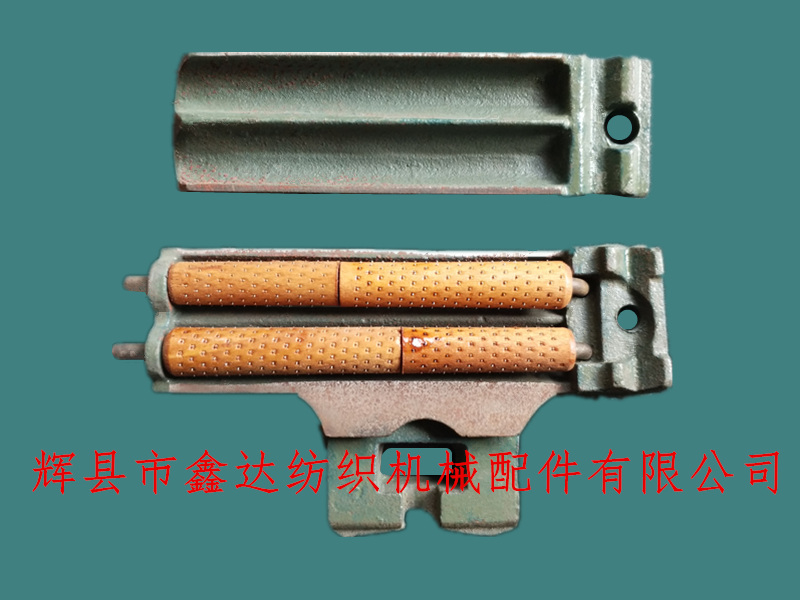

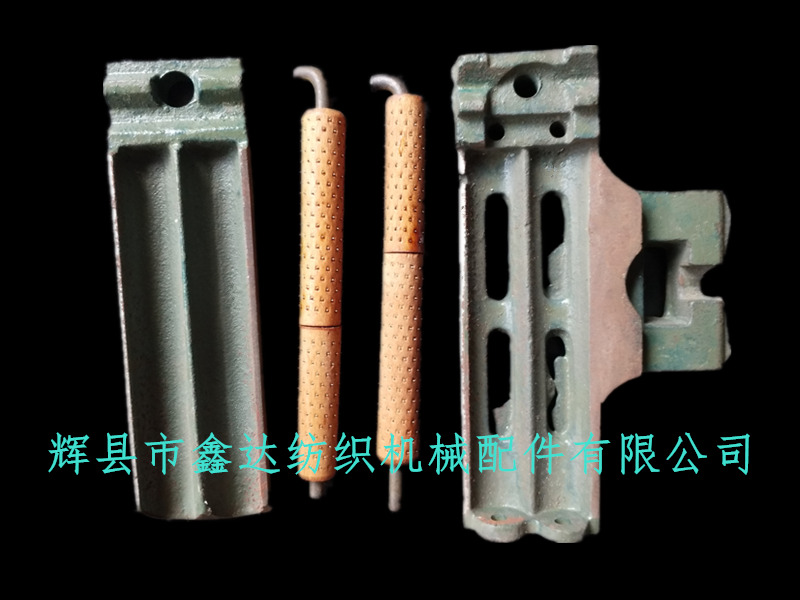

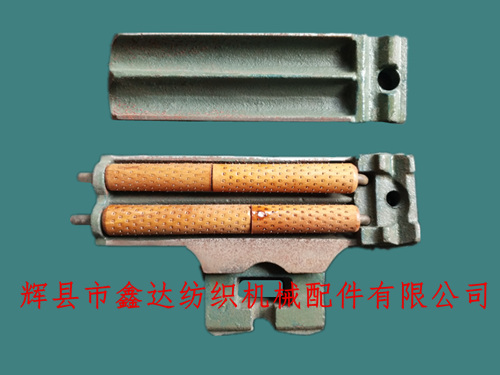

The left side is the L50 side brace cover, the middle is the spindle and spindle, and the right side is the side brace base. Side support seat, side support box, loom spindle, wood spindle disassembly diagram as above.

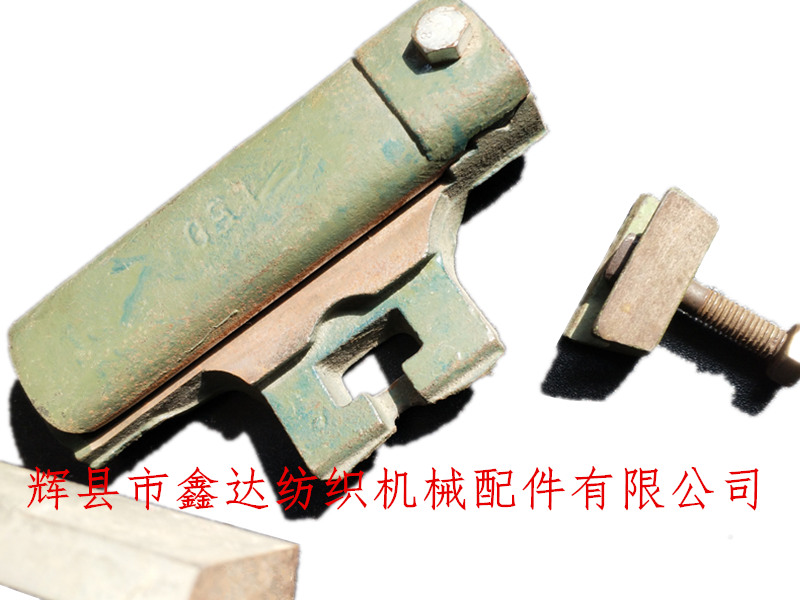

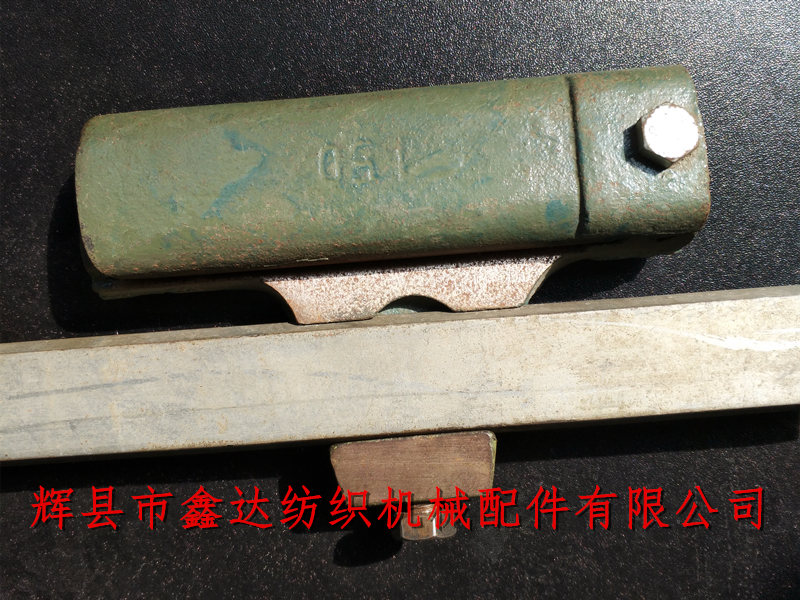

Textile 1511 loom side support box, L69 extension box climbing, L70 extension box screw (T shape), L44 extension bar cross section is isosceles trapezoid, such as the lower left corner.Loom Side support box,Side brace And spindle.

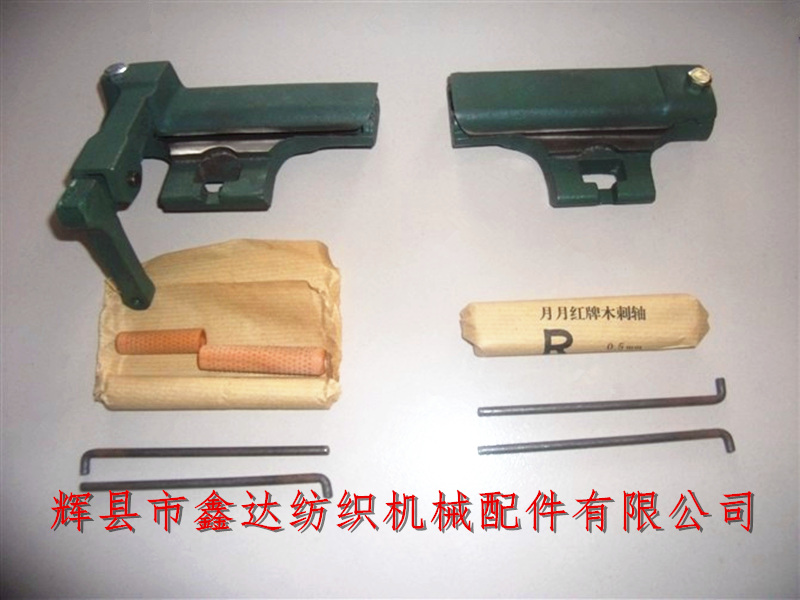

Installation sketch of side brace of loom, wood spine shaft is divided into dense spine and sparse teeth, specifications are divided into 0.4mm, 0.6mm, 0.8mm and so on according to tooth height.
44 Loom side support and spindle, side support, side support box, loom spindle, wood spindle - Xinda textile machinery accessories.
