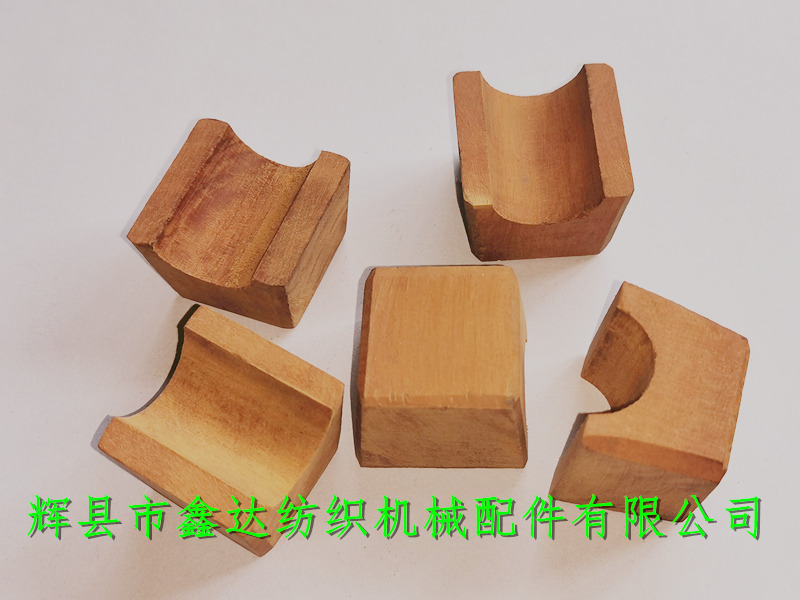

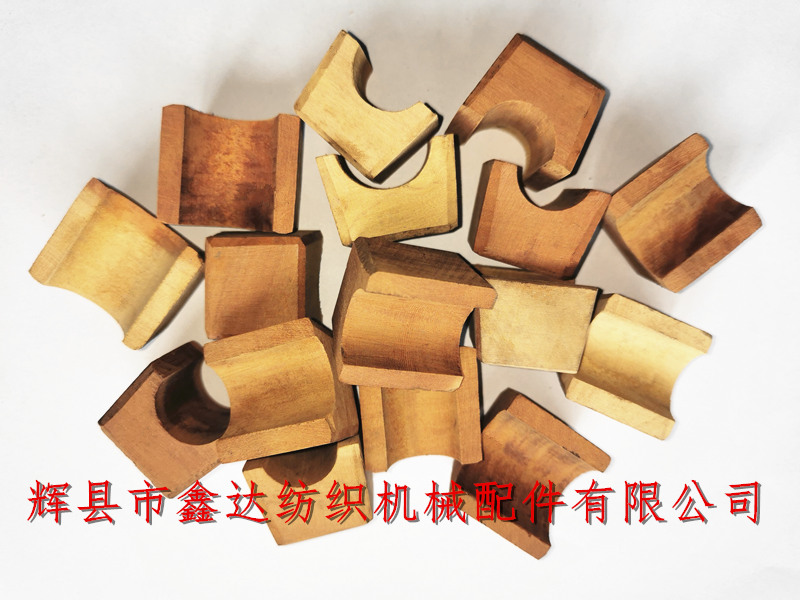

Our company provides special semi-circular wood bearing for textile wood parts. The old shuttle textile machine wooden bearing Q21 is used for lifting heald shaft, the upper length is 30mm, the outer width is 29mm, and the material is oak wood. Each loom uses two textile bearings, which are installed at the bottom of M5 heald seat. The upper width and length of the semicircular wood bearing used for Q20 roller of textile wood parts are 32mm and 29mm respectively. The special semi-circular wood bearing is mainly used for friction and support of the winding shaft when rolling, and is connected with loom L16 during installation.

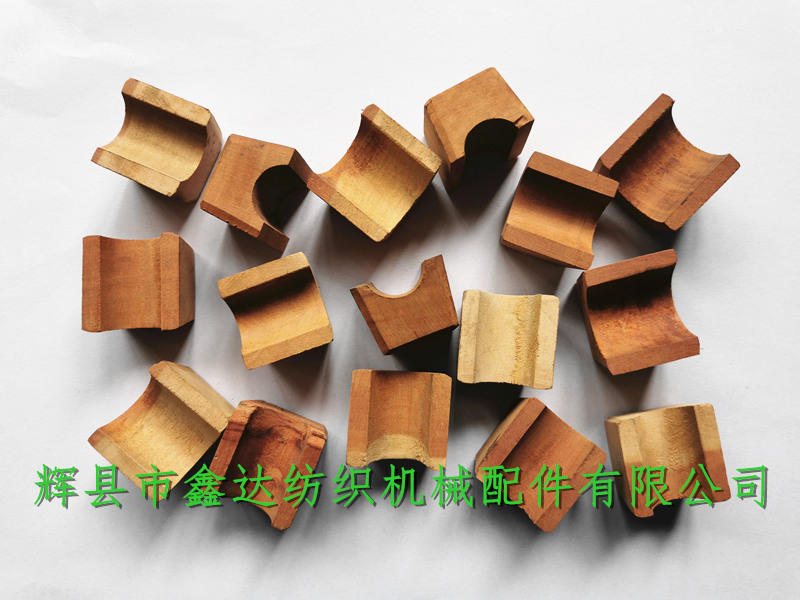

The wood bearing Q21 of lifting heald shaft should be 3 mm higher than the concave arc surface of M5 and M6 of upper support foot, and the allowable difference is ± 1 mm, so as to avoid collision between lifting heald shaft and upper support foot. The height of Q20 roller wood bearing and Q21 is 22mm. The bottom parameters of Q21 are 25X25mm and the bottom dimension of Q20 is 24x28mm.
The selection of wood bearing accessories is due to the low rotation speed of the dual parts and the reduction of friction damage. Q20 and Q21 special semi-circular wood bearings of textile wood accessories can also be used on 1515P, H212, 1515, 1515k looms.Textile Wood Parts Semicircular Bearing.
The semicircular opening size of Q20 is 22mm, while that of Q21 is 18mm. The diameter of the bottom surface of the cork for Q24 licking roller is 1.8cm and the height is 16mm. The textile wood products accessories (Textile bearings) are widely used in the textile industry, and their advantages are antistatic, mute and wear-resistant.
