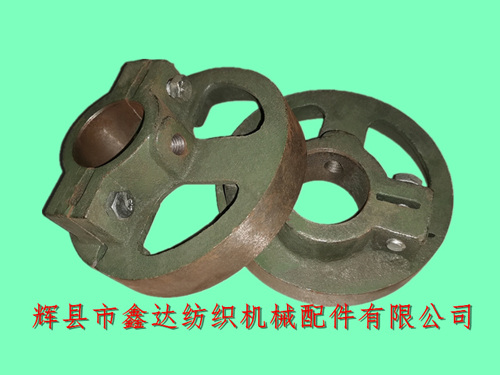

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides shuttle textile accessories, O13 loom cam warp break stop cam. The O13 warp break cam is installed on the tread shaft (F9, 3301) of the loom, its outer diameter is 136mm, the height is 53mm, the height of the tensioning table is 27.5mm, and the diameter of the inner hole in the middle of the loom cam is 42.4mm. The textile cam adopts split design, which is convenient for the installation (otherwise, the tread shaft needs to be removed) and maintenance of the shuttle loom.
Textile accessories - warp break stop cam O13 is fixed with two M10 * 35 hexagon bolts. Loom Cam,Warp Break Stop,Loom Motion Cam, The length of the tensioning table is 10.3cm, the width is 6.6cm, the side head bolt is M12, and the back of the warp break cam is designed with stiffeners (see the figure below). The tread plate shaft cam is not divided into left hand and right hand, and the number of each loom is 1.
O13 is used for 1511 cam and 1515 cam, and G263-6223 is used for GA615 loom (Note: G263 is a disc loom). Installation and use requirements: the surface wear of cam O13 shall not exceed 1.6mm. When the shuttle is pulled out on the switch side, the large radius of cam shall be upward and flush with the inner side of combined rod O7.
The weight of the cam for breaking warp and stopping motion of a single O13 loom is 1.05kg, the material of the cam is pig iron HT15-32, the smooth surface width used for surface friction is 24.6mm, and the smooth surface height of the inner hole is 32.5mm; See the figure above for the shape of the back after separation. The depth is 2cm and the inner diameter is 12.4cm; Packing method: no packing, 5 pieces per string, with a minimum order of 5 pieces.
There are thousands of types of accessories for domestic shuttle looms. Although various types of looms have the same principle, there are certain differences in structure. In the process of modification and upgrading according to the characteristics of different fabrics, while optimizing the structure of looms, it also enhances the practicability of textile machinery and equipment! Loom cam, textile accessories, warp break cam, shuttle textile accessories, O13 loom cam, warp break stop motion cam, shuttle textile cam accessories, please contact Mr. Yang of our company for details!
