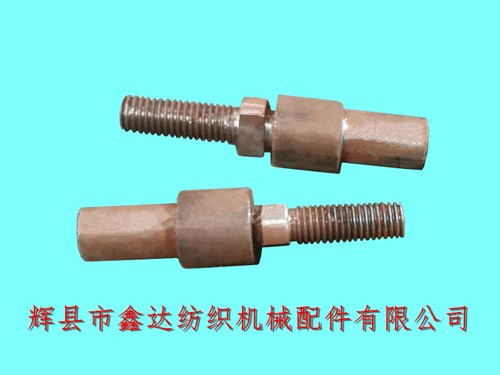

Huixian Xinda Textile Machinery Parts Co., Ltd. provides L38 winding accessories with reverse hook screw cores (44 inches, 56 inches, 75 inches). The total length of the L38 (reverse hook screw core) for weaving machine winding accessories is 81.5mm, with M12 thread at the front, 24mm diameter of the middle cone, and 16mm diameter of the tail shaft body. Its material is A3 or steel 20, and it is connected to L9 reverse hook and weaving machine wall panel (1515 is 43021511 is P2) for use.
The L38 reverse hook screw core is a universal accessory for coiling (can be used interchangeably between weaving machines of models 1511, 1515, GA615, etc.), and the quantity used for each weaving machine is one.
The tail of the reverse hook screw core has threaded holes. The winding devices of 1511, 1515, and GA615 series cotton machines belong to intermittent winding. According to the different transmission wheel systems, they can be divided into seven gear intermittent winding and worm gear intermittent winding.
In comparison, the seven gear intermittent winding is widely used and belongs to the active winding device. If you need to purchase reverse hooks, screw cores, L38, and winding accessories for weaving machines, please contact Mr. Yang from our company for consultation!
