Huixian Xinda Textile Machinery Parts Co., Ltd. provides GA615 loom accessories - 4109E Motor-bracket For Looms Motor Stay (1515), made of HT15-33 gray cast iron. This motor base is primarily used to secure the motor of the GA615 loom, with a frame length of 47.7 cm and a front width of 19.5 cm. It is mounted on the 4302 wall panel of the 1515/GA615 weaving machine.

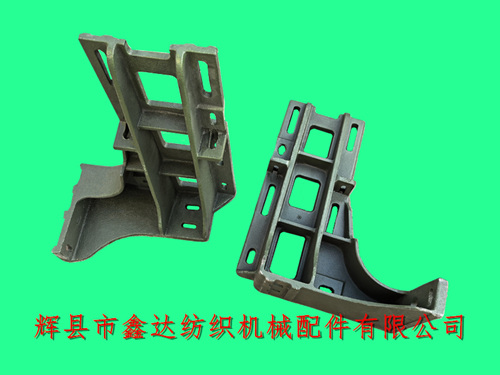

The above image shows the left and right sides of the GA615-4109 motor frame(Motor Bracket). The protruding ears on the motor base are screws used to adjust the front and rear positions of the motor, ensuring proper tension of the V-belt.
In the motor seat of the textile machine, the 1511 model uses I1 with smaller dimensions, while the 1515 and GA615 use 4109 with longer external dimensions. The installation of the motor frame for the 4109 motor seat weaving machinery accessories is fixed using M12*45 and M12*65 carriage bolts, while four M12*50 bolts are used to fix the motor of the weaving machine.
The GA615 motor rack is an important component of the weaving machinery rack. Each weaving machine is equipped with one motor rack, which is installed behind the wall panel on the switch side of the weaving machine.
If you need to purchase GA615 motor seats, weaving machinery accessories motors, weaving machinery accessories, motor frames, Motor-bracket,Motor Stay,Loom Parts,Weaving Loom, 1515 weaving machine accessories and other products, please contact Mr. Yang from our company for consultation.
