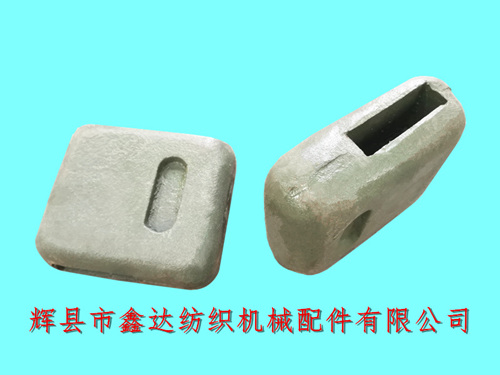

Huixian Xinda Textile Machinery Parts Co., Ltd. provides tension adjustment components for 1511/1515-C17 tension hammer looms. The external dimensions of the loom weight C17 (Tension Weight) are: length is 142mm, width is 84mm, and material is HT15-33 gray pig iron. Each loom uses 2 PCS C17 , and the weight of a single tension hammer is 4 kilograms (actual weight is 3.95 kilograms).
The C17 tension hammer(Tension Weight) is suspended from the C14 tension hammer rod on the 1511 loom, while the 1515 loom is suspended from the 3404 tension hammer rod. In comparison, the 3404 hammer rod has a longer length and is fixed above the back of the loom wall panel.
Installation instructions for tension adjustment components of 1511/1515-C17 tension hammer loom: The front end of tension hammer rod C14 should be 108 millimeters above the plane of wall panels P1 and P2 (when the tension sector rod is level with the brake); The C17 (Tension Weight) has a protruding clamp in the rectangular hole, which is used to slide back and forth on the tension hammer rod without being affected by changes in tension.
1511-C17B and 1515-C17B tension hammers belong to the tension adjustment components of shuttle looms, which are installed on various shuttle looms with specifications such as 44 inches, 42 inches, 52 inches, 54 inches, 56 inches, 63 inches, 72 inches, and 75 inches in the imperial system. If you need to purchase textile hammers, other C6 adjustable hammers, I7 brake lever hammers and other accessories, please contact Mr. Yang from our company for negotiation.
