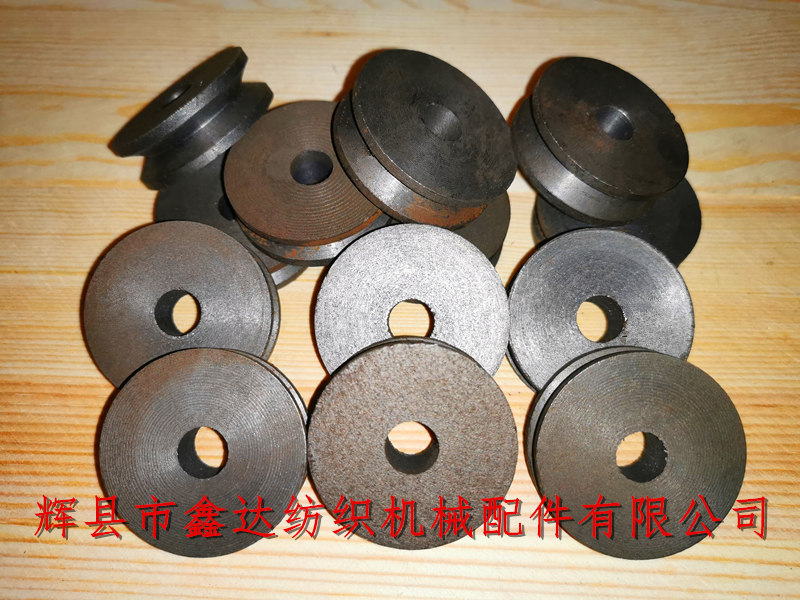

Huixian Xinda Textile machinery accessories has long provided 214M lattice machine accessories, multi shuttle box hoist c-40, 1515 multi shuttle loom shuttle box lifting pulley. The outer diameter of 1x4 multi shuttle box hoist (Textile pulley) is 40mm, the inner hole diameter is 10mm and the thickness is 13mm. The quantity used for each loom is 2PCS. 214 lattice machine includes M-A double drum faucet, M-B automatic lattice machine accessories and M-C shuttle box accessories.

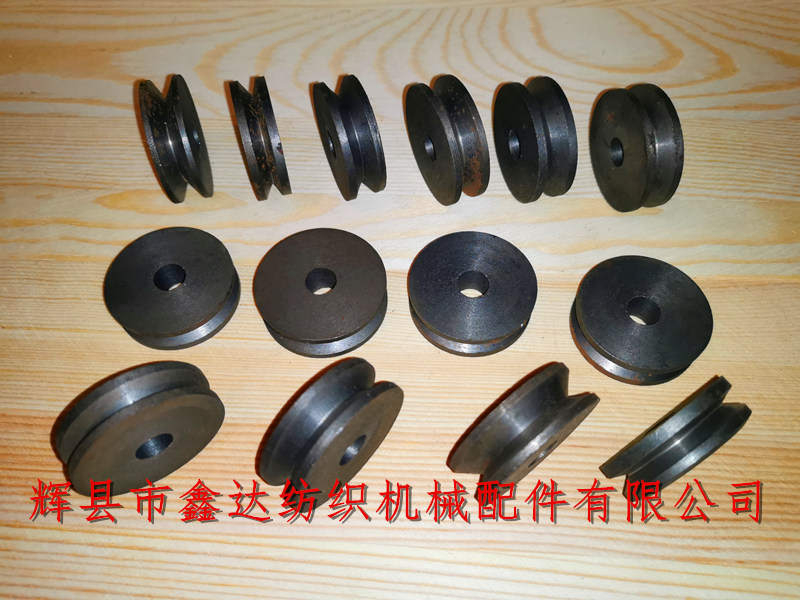

The accessories of 1515 lattice machine are different from the a-lattice accessories at the beginning of 81. The C-40 multi shuttle box hoist (pulley) is located on the side of the multi shuttle box. More than 40 components such as c-27 rod foot screw, C-36 shuttle box handle seat and C-34 multi shuttle box bottom plate (short) constitute the multi shuttle box device.

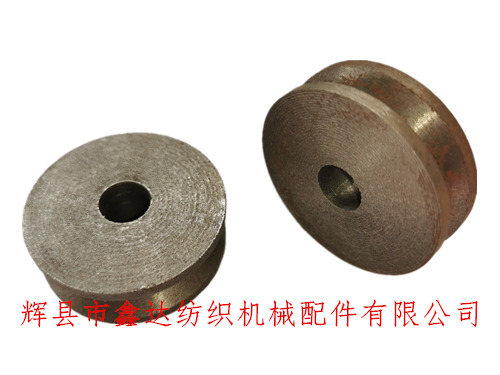

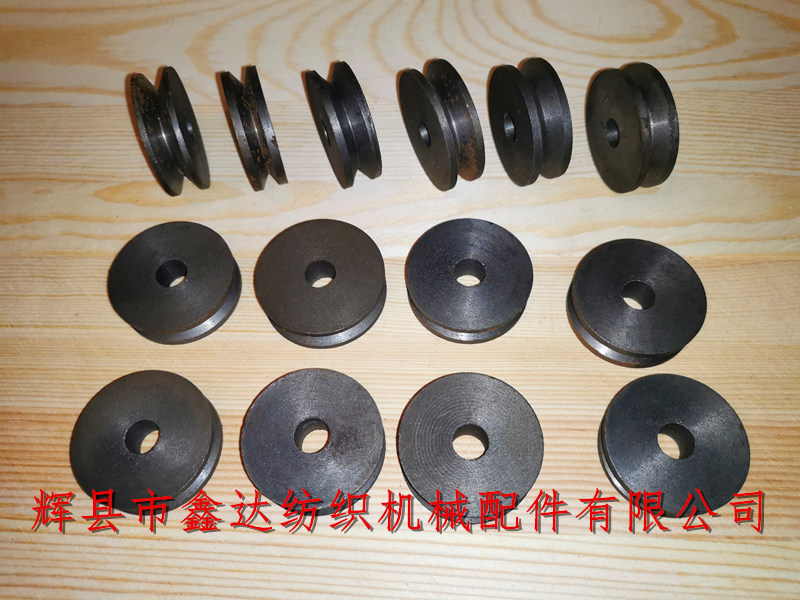

Lattice machine accessories: 20 multi shuttle box hoists C-40 in each string. The V-shaped groove contacts the shuttle tip and is installed on the C-14 or C-15 shuttle box hoist shell. The weight of a single C-40 is about 0.1 kg.
Xinda lattice machine accessories are mainly used in the north, with the characteristics of simple maintenance and reasonable transmission structure design. If textile groups need to purchase 1515 textile machine lattice accessories 1x4 or 4x4, please contact our company for consultation.
