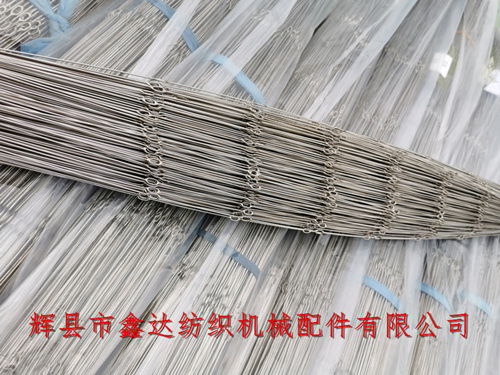

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Multi Eyes Stainless Steel Heddle Nickelage,multi eyes stainless steel wire heald with nickel plating (below 1.2 meters). Textile machine steel wire heald is a textile machinery equipment accessory. The stainless steel multi eye wire used in 3D weaving refers to a single wire heald with multiple holes arranged in a regular distribution for multi frame suspension. The wire is made of carbon steel round wire, brazed, and nickel plated on the surface, and is often used on 3D looms for aerospace fabric weaving.
The main material of multi eye steel wire heald (heddle) is round steel wire with a diameter ranging from 1.2mm to 2.0mm. The common specification is a diameter of 1.2mm (affected by the number of pages in the three-dimensional weaving machine frame), while other specifications include 1.4mm, 1.6mm, 1.8mm, and 2.0mm.
The inner width of the brown eye at both ends of the multi eye wire is selected based on the diameter of the round steel wire, and the bending radius of the steel wire varies with different thicknesses; We can provide multi eye steel wire composite products with a length of less than 1.2 meters. The composite wire is welded with argon arc copper, with round welding points, high tensile strength, low ductility, and stable product quality. It is suitable for weaving fabrics with high tensile strength.
Stainless steel multi eye wire needs to go through multiple processes such as material selection, segmented cutting, stamping forming, surface cleaning, mold length determination, argon arc welding, quenching, quenching, degreasing and cleaning, nickel plating treatment, etc. The overall technical requirements of the process are strict. In general, the packaging for stainless steel multi eye wire is 200 pieces per bag.
Heddle (steel wire heald) belongs to textile equipment products, mainly used to lift the warp yarn that has passed through the upper and lower layers when the heddle frame moves up and down, realizing the opening and closing of the shuttle mouth. It is a key component of textile machinery weaving. If you need to purchase three-dimensional wire, multi eye steel wire heald, porous brown wire, stainless steel nickel plated brown wire, or to learn about the minimum order quantity, delivery time, parameters and other information of this product, please contact Mr. Yang from our company for consultation.
