Huixian Xinda Textile Machinery Parts Co., Ltd. provides customized silk weaving machine accessories for S4 and S6 shuttle weaving machines,S4, S6 Wandering Shuttles For Silk Loom. The S4 shuttle can be processed and customized with two side wrapped red steel paper, three wrapped steel paper, and four wrapped steel paper. The overall dimensions of the S6 silk weaving machine wooden shuttle are: total length is 365mm, bottom outer width is 33.5mm, total height is 23mm, shuttle is divided into left and right hands, and the weft yarn is drawn out from the porcelain eye in front of the shuttle chamber, After living, it swims on the side of the shuttle, hence it is called a "wandering shuttle".
The flexible front of the shuttle is made of nylon cast stainless steel wire. The wire wheel of the shuttle is inlaid with porcelain eyes, and the wooden shuttle manufacturer mainly uses this design to increase the resistance of the weft yarn when it moves forward, ensuring that the tension when the weft yarn is introduced into the fabric meets the requirements.Shuttle,Wandering Shuttle,Silk Loom,Wooden Parts.

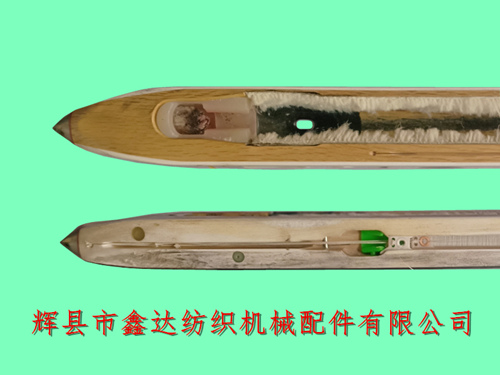

The above picture is a top and side view of the S4 shuttle. The shuttle cavity is not designed in the center, and the photoelectric weft detection hole is located at the bottom of the shuttle, near the nylon collet. Currently, due to the long-term lack of manufacturer production and the decreasing inventory, we are unable to provide some accessories on the wooden shuttle. For specific details, please contact our company for consultation.
The rubber band on the side of the S6 shuttle is used to stretch the guide yarn ceramic eye of the shuttle, ensuring uniform tension during movement. When stopped, the ceramic eye slider quickly resets. The nylon clamp in the picture has wings at the bottom, which can slide into the wooden shuttle's chute and then be firmly fixed with glue. Due to the need for a certain production cycle for customized wooden shuttles, customers in various cities need to place orders in advance to avoid out of gear due to the replacement of wooden shuttles, which may affect workshop production.
Welcome users or enterprises of textile wooden shuttles in various cities to contact our company for negotiations on S4 and S6 shuttle weaving machines. The minimum order quantity is 300 pieces, and the delivery time is about 60-65 days. Before placing an order, samples (new shuttle samples+supporting tubes) need to be provided to our company. In every step of the production and customization process of wooden shuttles, all equipment debugging is based on the samples.
