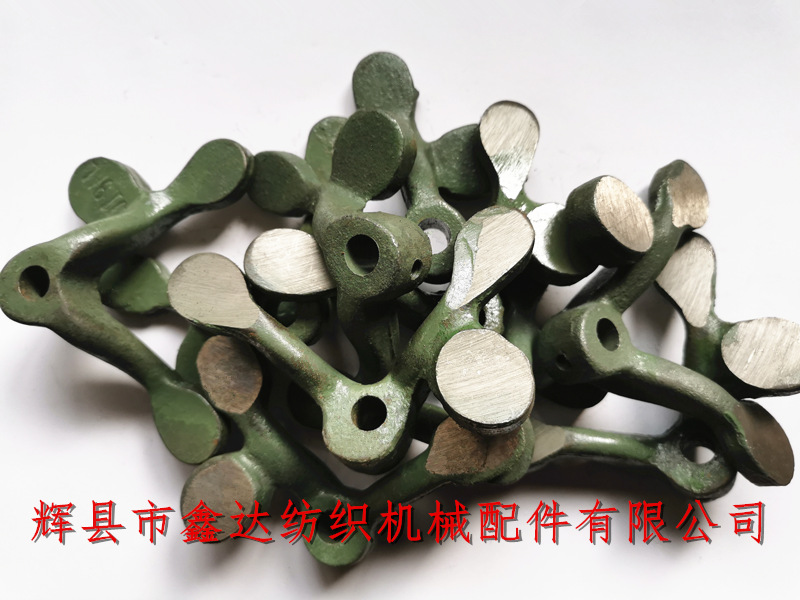

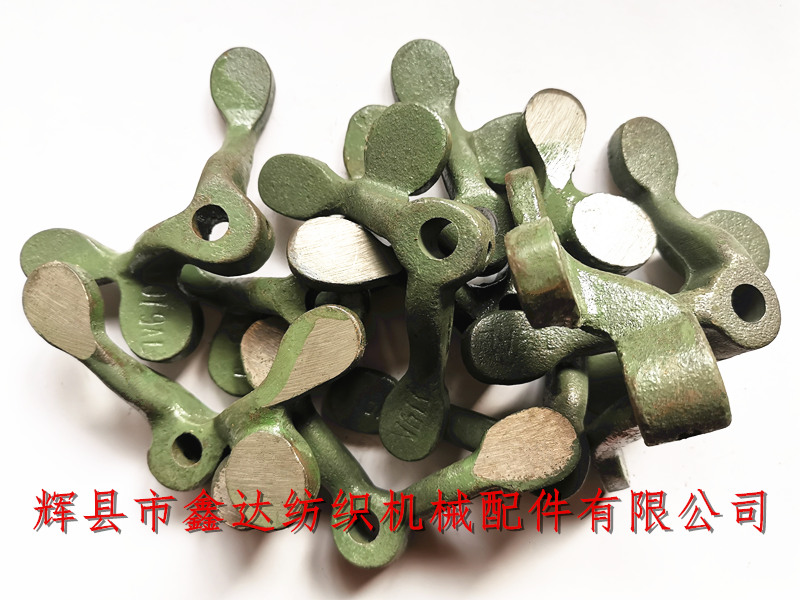

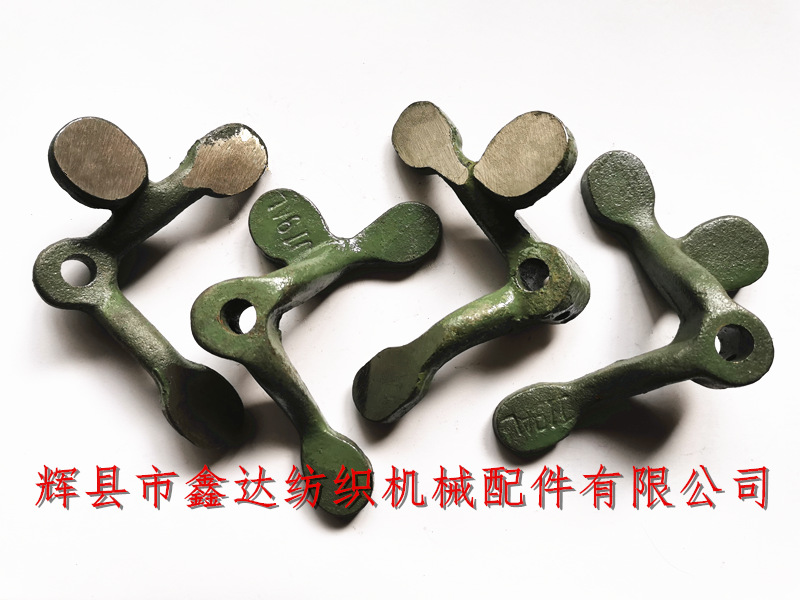

Huixian Xinda Textile machinery accessories provides the loom shuttle change guide part J19 connecting pionter, which is the guide part for J00-4 weft support assembly, which is installed on the J30 weft fork spindle rod. The J19 shuttle change guide part is Shuttle loom parts,and divided into left hand and right hand, with the shape of "V", the diameter of the middle inner hole is 10mm, the side fastening screw is M6, the overall length is 10.5cm and the width is 8.5cm, which can be used for 1511 GA615, 1515 and other models have shuttle looms, and each loom uses one.

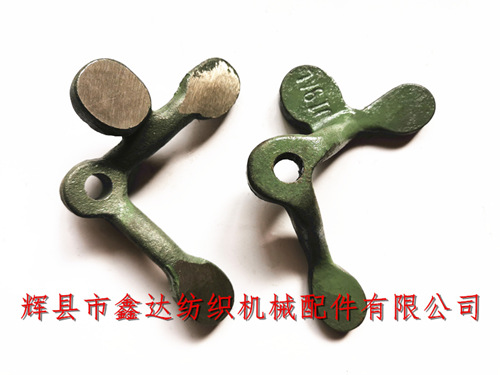

In the loom shuttle change inducer, J19 is moved by the back and forth swing of J2 weft fork hook. As shown in the above figure: the left side is the right hand and the right side is the left hand.
The guiding parts of traditional old looms are generally mechanically designed to assist weft detection, so as to realize automatic shuttle change or induce the machine to stop. The single weight of textile accessory J19 is about 0.25 kg.

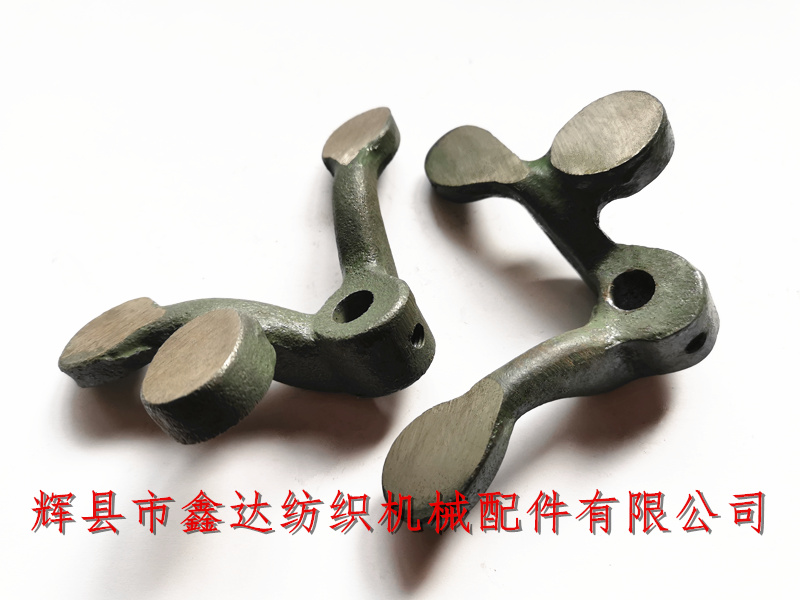

When the loom guiding part J19 is placed as shown in the figure above, its height is 3.5mm, the three processing surfaces are in the same plane, and the surface shall be flat after processing. J19 shuttle change induction parts are packed in woven bags, 100 pieces per bag, with an order quantity of 50 / 50 pieces.
Xinda loom component, J19, shuttle change induction is widely used in the textile industry. Shuttle change induction is not affected by weather, air humidity and production environment. Compared with electronic products, it is more reliable, simple and practical in maintenance.
