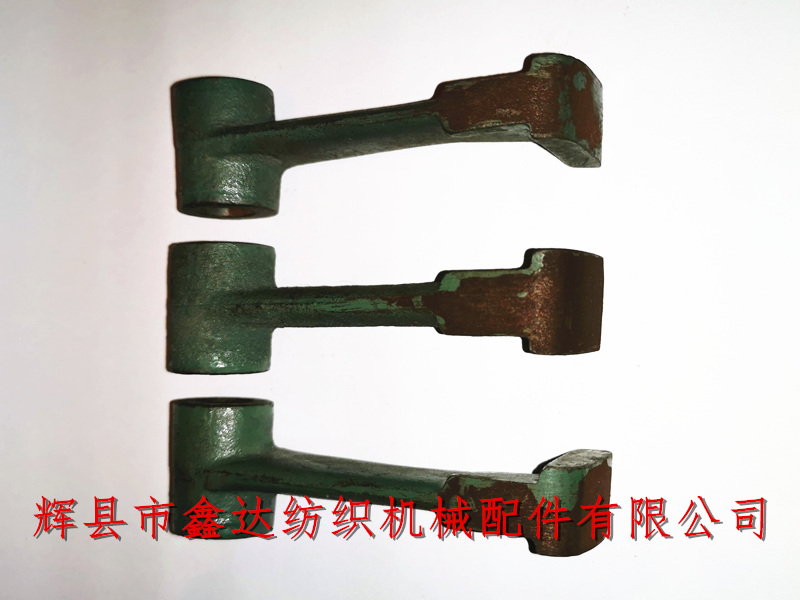

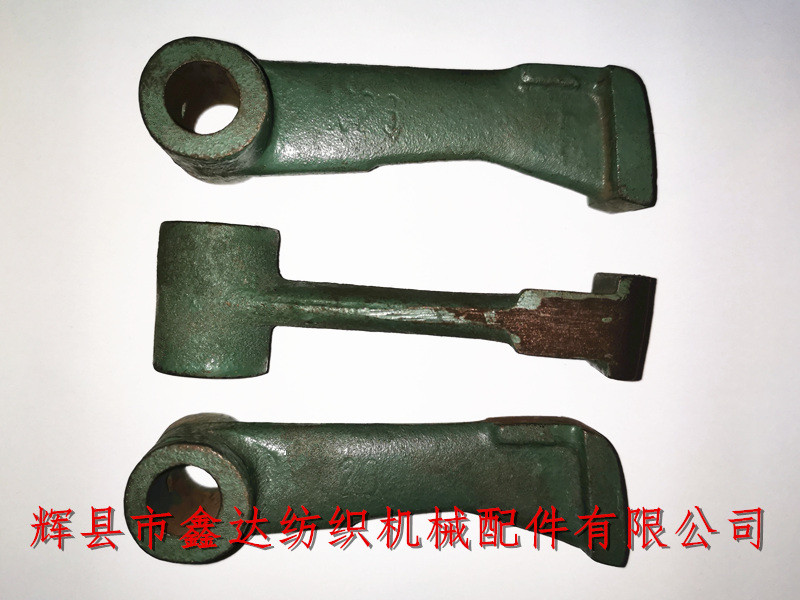

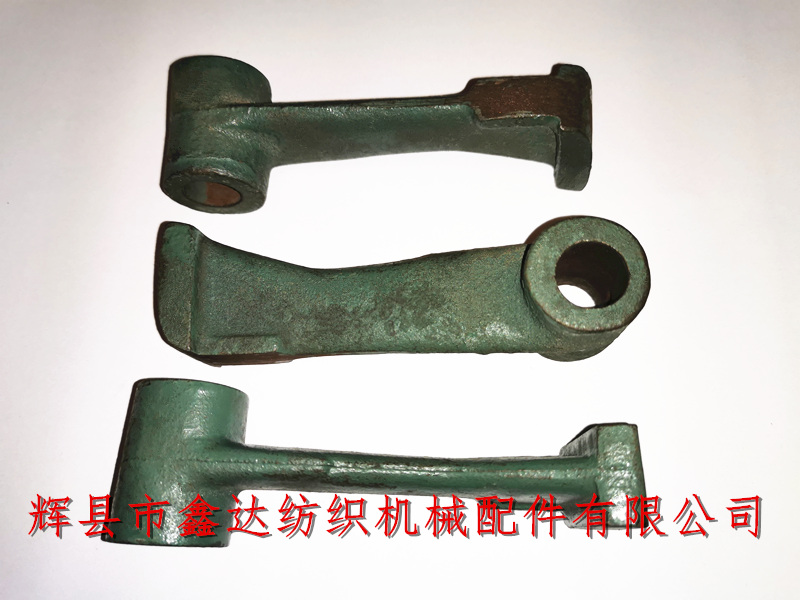

1511-k23 textile machine stop dog accessories are mainly used in 1511 old-fashioned shuttle looms and 1515 and GA615 wide width looms, with a total length of 10.7cm and a hole diameter of 14mm. They are connected with k33 screw mandrel, with a gap of less than 0.4mm. The length of stop dog K23 is less than 3mm, and the contact depth with knock nozzle K27 is kept at 13-16mm. The upper and lower gaps are as per the process requirements Find out (the contact difference with the impact nozzle is less than 1mm, and the relative position is in the middle).
The stop dog of K23 loom is installed on K21 or K22 hanging foot, which is connected with 4306 breast beam on 1515 loom, or fixed on GA615 and 0101 breast beam.K23 Textile Machine Stopper Accessories.
There are 50 stop dogs K23 in each string for each loom. Each loom uses 4 pieces. The single weight of K23 stop dogs is about 0.2kg. The material is ht15-32. It is packed in woven bags. The starting quantity is 50 pieces.Textile machine accessories,textile machines,textile stopper.
Our company supports the processing and wholesale of textile machine accessories, 1511 textile machine, stop the processing and wholesale of the brake. The special cast iron parts of the loom can be customized according to the customer's requirements. The textile machine accessories cover tens of thousands of types of products of loom accessories and spinning parts, and the specific use is also relatively wide. Welcome the customer's consultation and cooperation!
