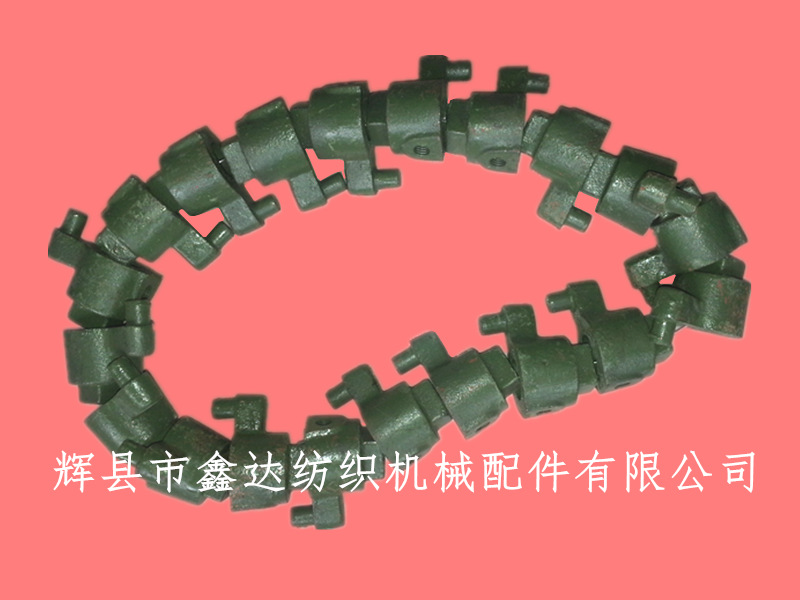

The adjusting hoop F17, also known as adjusting hoop for loom F17 shuttle spring, has 22mm inner hole, which is fixed at the end of the screw core of F18A shuttle plate, 22mm X22mm behind the adjusting hoop. The product can be used in shuttle textile machines with 1511, 1515, GA615 and other door widths. It belongs to the general fittings of looms. The material HT15-32 is used in two looms.

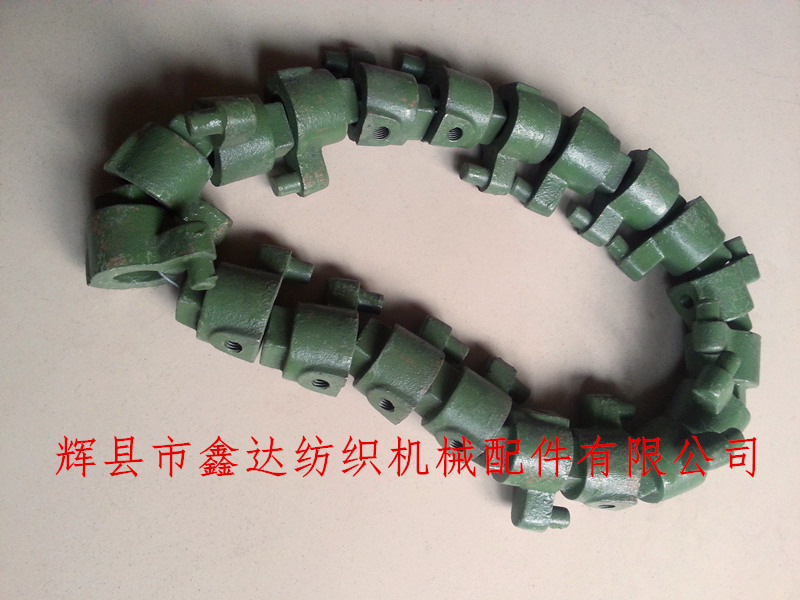

44 loom F17 adjusting hoop, 56 inch loom adjusting hoop, color green, 8mm top wire fixed, 20 pieces/bundle, for fittings fixed F34 and F35 chuck wear groove depth less than 2.5mm, to ensure the safety of production and use, need regular inspection.

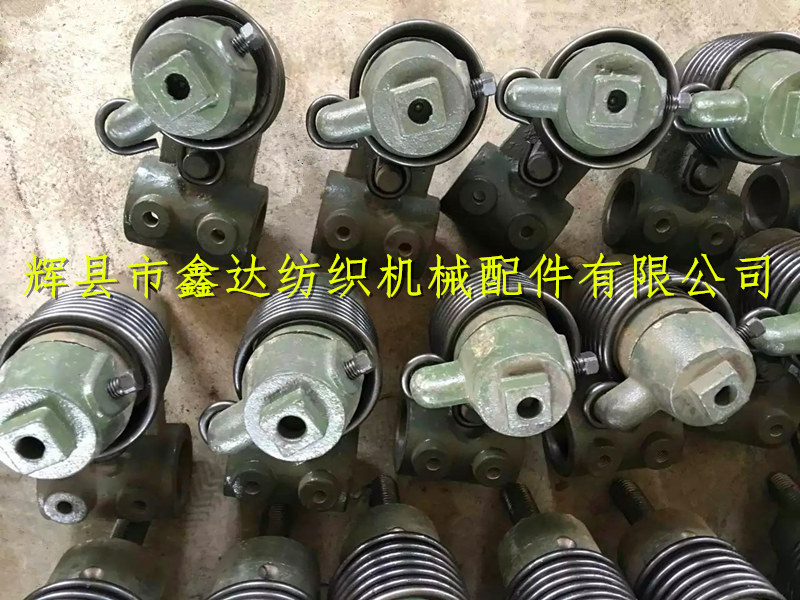

The figure above is the Y type of F17 adjusting hoop. The installation drawings for the whole group are as follows:
There are shuttle loom general textile accessories, textile machine accessories, adjusting hoops, F17 textile machine, F16XF18XF35XF17 assembly process needs to be strictly in accordance with the installation sequence, check the tetragonal head tightening, shuttle plate spring forward and backward is correct.
