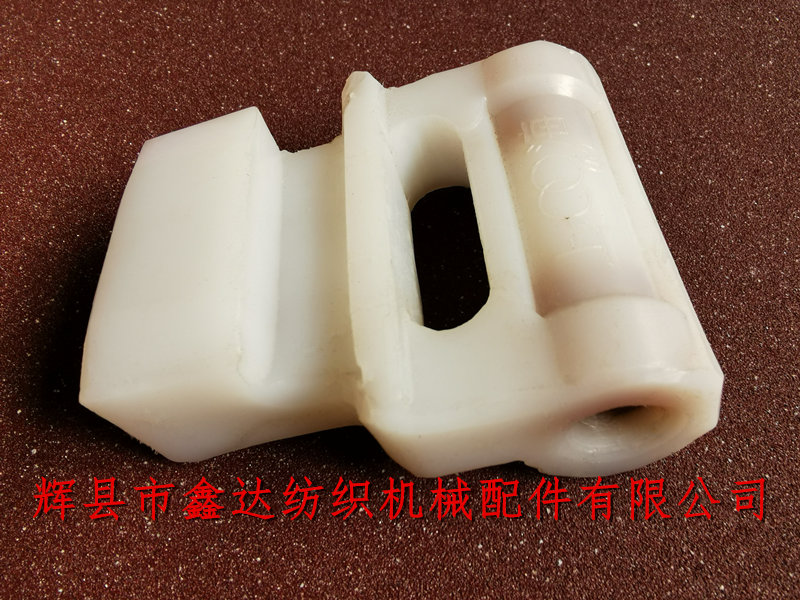

Henan Xinda Textile Machinery Accessories Co., Ltd. has provided Export Type Multi Shuttle Picker B12-2 products for 20 years. The high polymer multi shuttle loom picker (throwing knot) has a length of 71mm, a width of 80mm, and a sliding shaft hole diameter of 12mm. The size of the shuttle plate slot in the middle of the multi loom picker is 44mm in length and 12mm in width. The thickness of the shuttle position is 25mm. The inner hole of the leather knot is inlaid with cloth plate rubber sleeve, with a starting order of 1000 pieces and a delivery period of 30-35 days.
Textile multi shuttle accessories - leather knot belongs to vulnerable parts, with a large amount of consumption. This polymer shuttle knot is generally used for the shuttle of the side shuttle to help the shuttle plate to complete the impact on the shuttle tip, so that the shuttle can move back and forth on the loom.

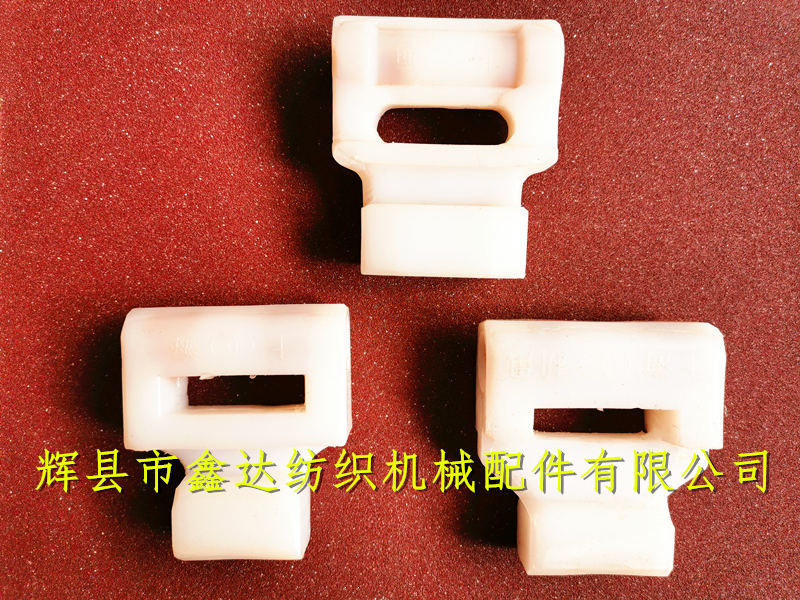

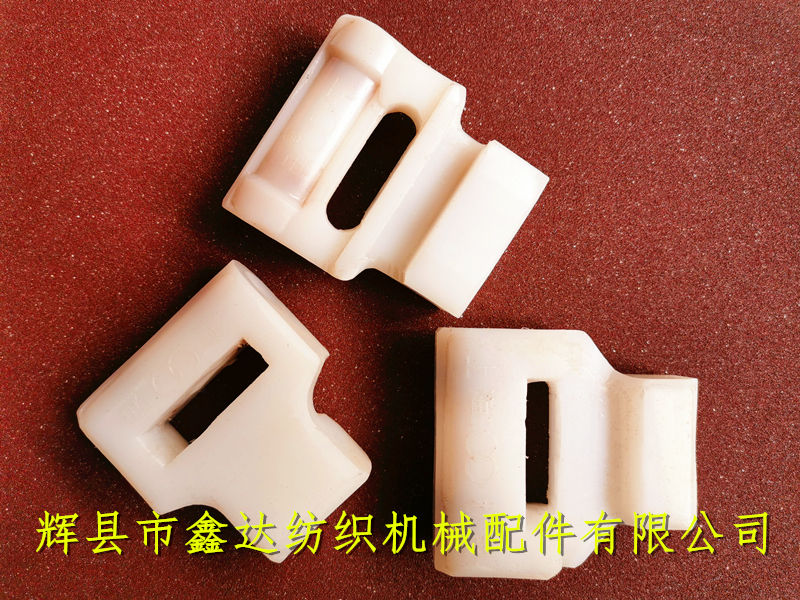

In the figure above, there are three kinds of leather knots with similar shapes. The top is export-oriented machine-made multi shuttle leather knot b12-2, and the bottom two are slightly smaller. Products are mainly sold to Southeast Asia, less used in China, a large number of special-shaped polymer leather products can also be specially mold processing.Multi shuttle picker, 1511 export multi picker,GA615 multi loom picker.

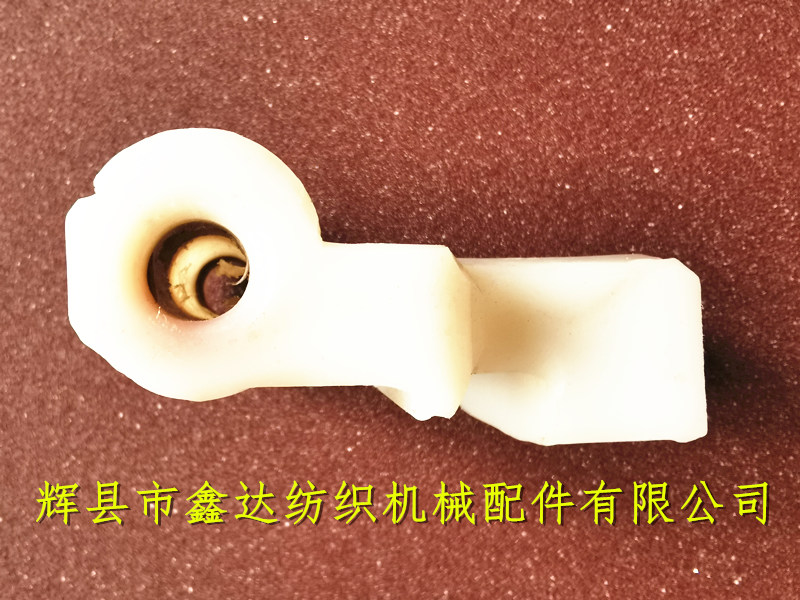

The figure above shows the side view of export-oriented b12-2 shuttle knot. Our company provides all kinds of textile equipment (including special types and foreign woven parts). We have accumulated 20 years of experience and believe that we can solve the problem of product supply for our customers.
Multi leather knot manufacturer,Multi shuttle picker, export multi picker,multi loom picker,export leather knot price, machine leather knot purchase market is provided by Huixian Xinda Textile Machinery Accessories Co., Ltd., welcome new and old customers to consult and cooperate!
