Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides P103R-A Picker Double-head Cushion Leather pier equipment for picking leather knot loom. The dimensions of P103 leather knot are: the total length is 105 mm, the wing width of the cushion leather pier(weaving Loom Picker) is 57mm, the width of the picker middle body is 34mm, the thickness of the two wings is 6mm, and the total height is 34.3 mm; The diameter of the outer ring of the double scalp knot picking point (the contact part between the conical depression and the shuttle tip) is 18mm, and the center point is 18mm away from the bottom.
P103R picker has no distinction between left hand and right hand, and two wings are added compared with P104 Loom Picker. Dimensions (parameters) of the chute of the middle picking bar: the inner length of the horizontal position of the middle picking point is 47.5mm, the inner length of the chute at the bottom and the upper part is 54mm, and the inner width is 11 mm. Both sides in the chute are waist-shaped.

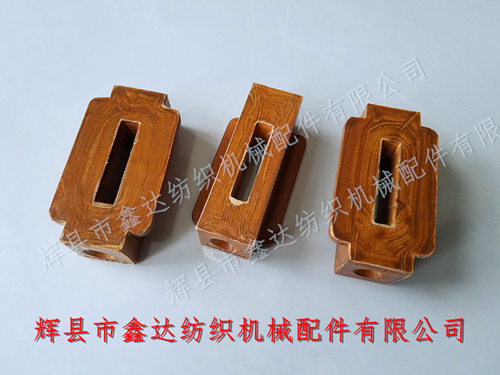

The above picture shows the 45 side view of P103R picker. The leather knot is integrated, and the rubber and cloth layers are evenly arranged. The double-headed design makes the picking point of the leather knot seriously worn, so it can be used backwards.
The weight of a single P103R-A picker is 138.6 grams, and the package is a carton with 100 pieces per carton. The minimum order quantity of this P103 picking knot is 500 pieces, and the delivery period is about 10-15 days.
Textile Loom Picker belong to machine leather parts, which are referred to as textile R Parts for short (because most of them are made of Rubber, the English word is rubber, and the beginning is R letter, so they are referred to as R pieces for short). Textile trade groups, weaving factories and non-governmental processing households in various cities need to purchase products such as P103R-A picking leather knot loom double-head cushion leather pier equipment, or know other detailed parameters such as textile picker, P103 leather knot, leather pier, loom equipment and double scalp knot, please contact Mr. Yang of our company for consultation. We sincerely welcome everyone to come!
